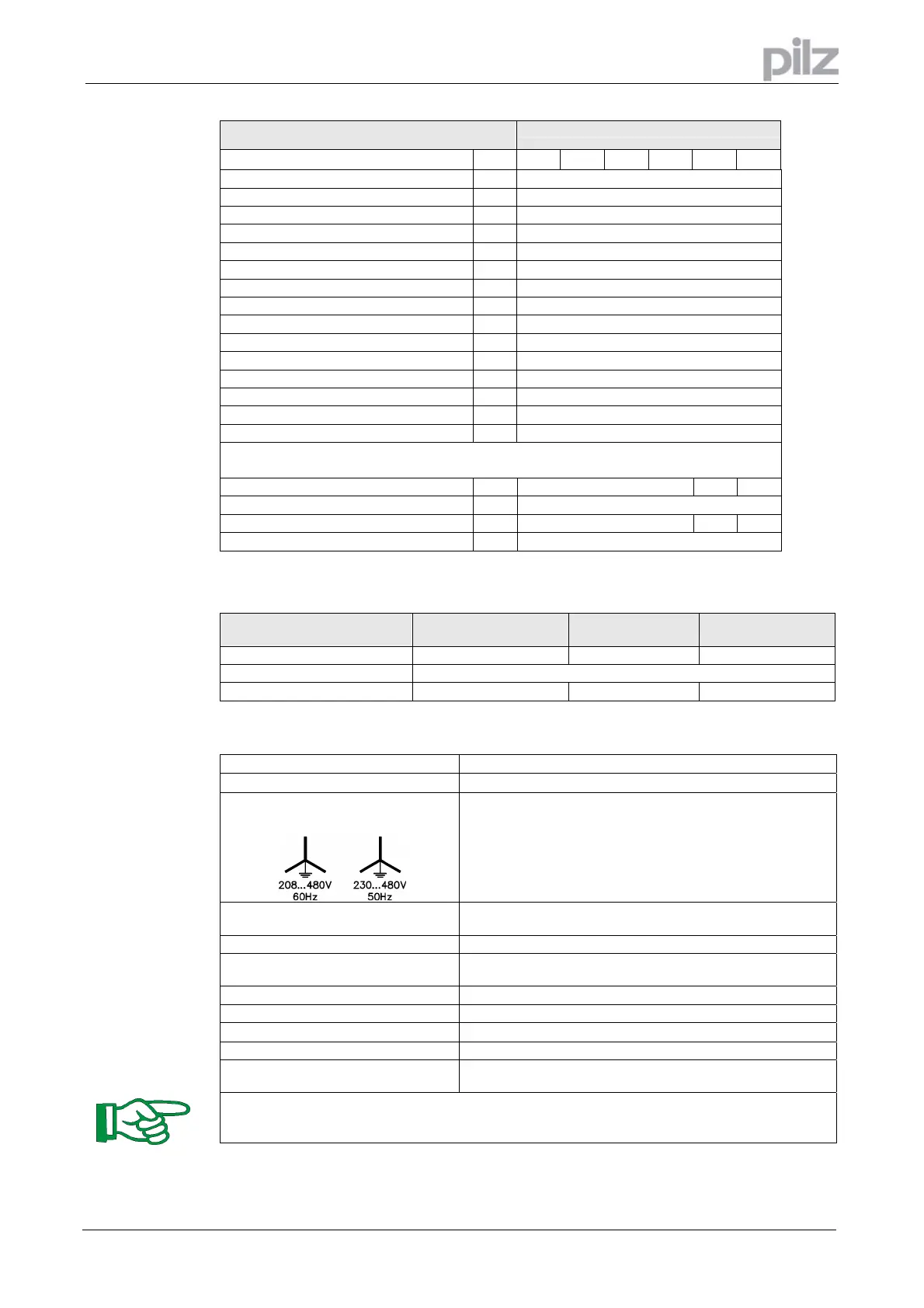

7 General
Installation manual PMCprimo Drive2
Page 21
PMCprimo Drive2
Connections DIM
01 03 06 10 14 20
Control signals (X3) — Combicon 5.08 / 18pole , 2,5mm²
24 V supply (X4) — Combicon 5.08 / 4 pole , 2,5mm²
24 V supply (X10) — Combicon 3.5 / 11 pole , 1mm²
Encoder supply (X10) — Combicon 3.5 / 11 pole , 1mm²
Digital inputs (X10) — Combicon 3.5 / 11 pole , 1mm²
Digital outputs (X10) — Combicon 3.5 / 8 pole , 1mm²
Power signals (X0,X7,X8,X9) — Power Combicon 7.62 / 4x4 + 1x6-pole, 4mm²
Resolver input (X2) — SUB-D 9pol. (plug)
HIPERFACE input (X1) — SUB-D 15pol. (plug)
PC interface (X6) — SUB-D 9pol. (socket)
Encoder emulation, ROD/SSI (X5) — SUB-D 9pole (plug)
Master encoder (X11/4) / CAN2 (Option) — SUB-D 9pole (socket)
MODBUS (X11/3) / Profibus (Option) — RJ45
CAN-1A (X11/2) — SUB-D 9pole (plug)
CAN-1B (X11/1) — SUB-D 9pole (socket)
Mechanical
Weight kg 4 5 7,5
Height without connectors mm 275
Width mm 70 100 120
Depth without connectors mm 265
7.9.1 External fusing
Fusible cutouts or similay
PMCprimo Drive2
01 / 03
PMCprimo Drive2
06 / 10
PMCprimo Drive2
14 / 20
AC supply FN1/2/3 6 AT 10 AT 20 AT
24V supply FH1/2 max. 16 AF
Regen resistor FB1/2 4 AF 6 AF 6 AF
7.9.2 Permissible ambient conditions ventilation, mounting position
Storage temperature/humidity,duration
⇒ S. 93
Transport temperature / humidity
⇒ S. 93
Supply voltage tolerances
Input power
Aux. power supply
min 3x230V
-10%
AC / max 3x 480V
+10%,
50 ... 60 Hz
24 V DC (-0% +15%)
Ambient temperature in operation
0...+45°C at rated data
Humidity in operation rel. humidity 85%, no condensation
Site altitude up to 1000m a.m.s.l. without restriction
1000...2500m a.m.s.l. with power derating 1.5%/100m
Pollution level Pollution level 2 to EN60204/EN50178
Enclosure protection IP 20
Mounting position
generally vertical. ⇒S. 33
Ventilation built-in fan
Vibration Vibration: 1g sinuid according to 60068-2-Fc
Shock: 15g, 11ms, 60068-27-Ea
Make sure that there is sufficient forced ventilation within the switchgear cabinet!
