9 Interfaces
Page 60
Installation manual PMCprimo Drive2

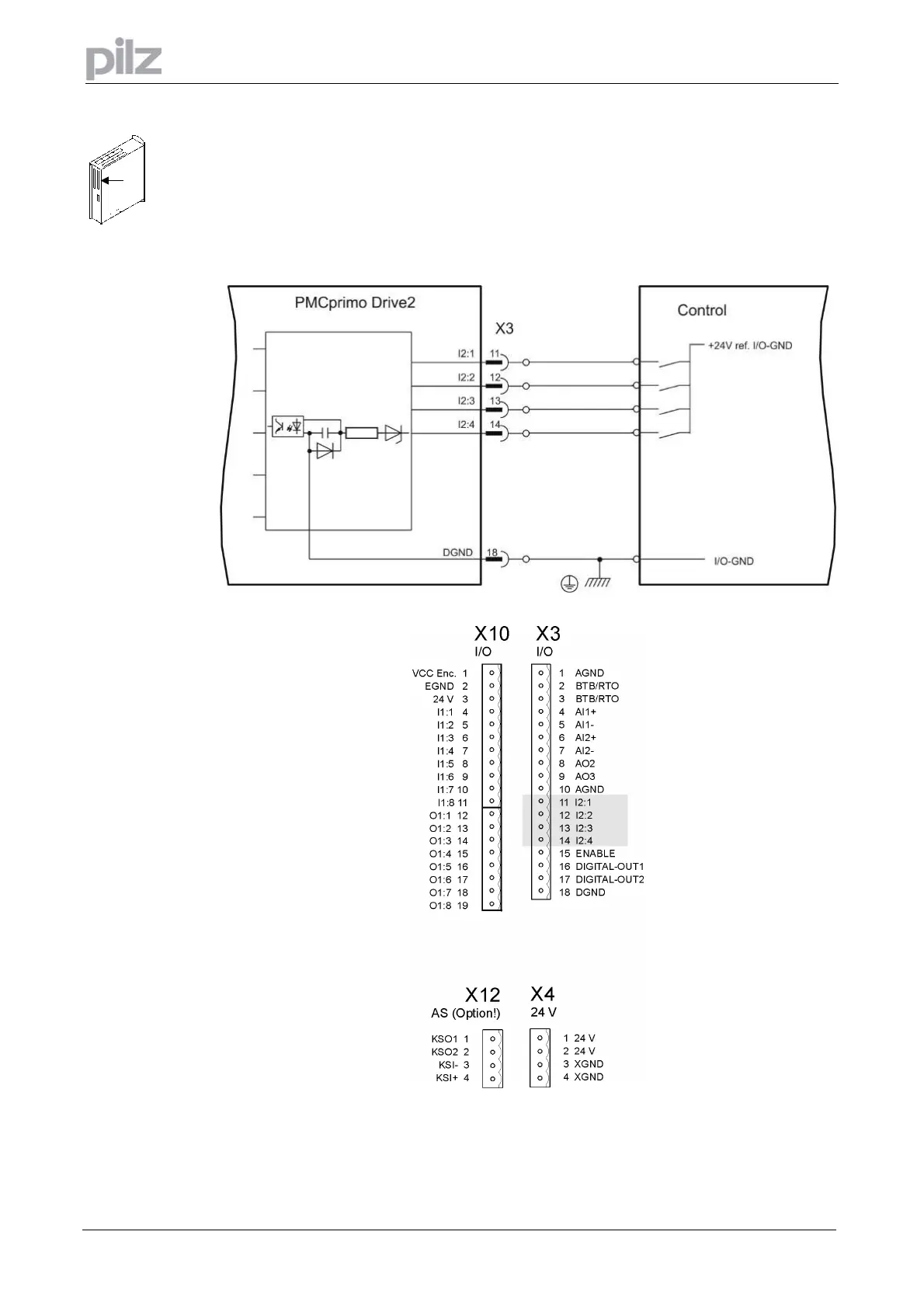

9.7.2 Digital inputs I2:1 - I2:4 (X3)
All digital inputs are electrically isolated through optocouplers
• Reference ground is DGND (terminal X3, Pin 18)
• Logic is PLC compatible
• H-level: +12 … 30V / 7mA
• L-level: 0 … 7V / 0 mA
