Pilz PMCprimo Drive2 User Manual

9 Interfaces
Installation manual PMCprimo Drive2
Page 63

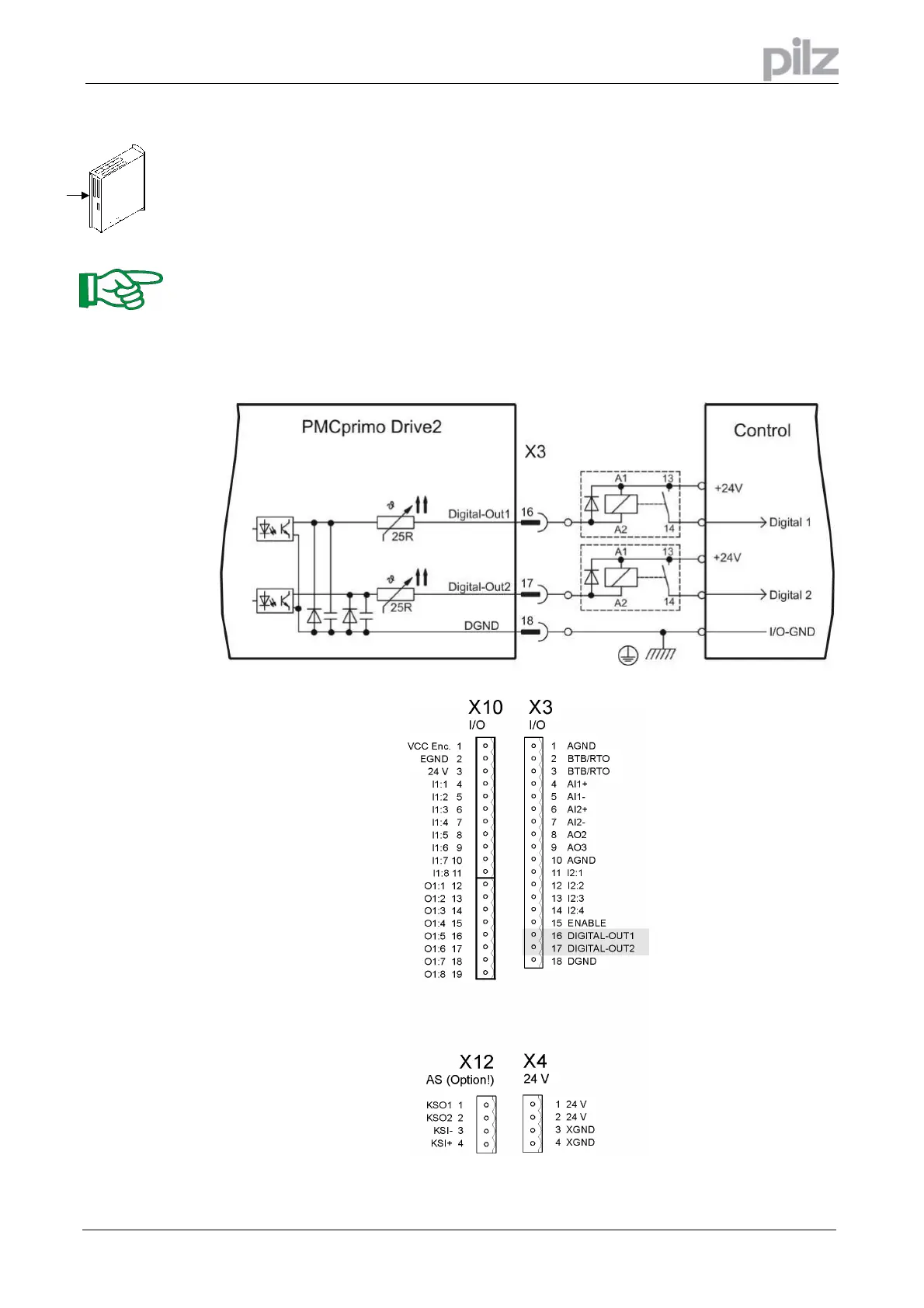

9.7.5 Digital outputs Digital-Out 1+2 (X3)
• Reference ground is DGND (terminal X3, Pin 18)
• All digital outputs are electrically isolated
• „Open-Collector“-outputs: 24V /10 mA each output
The both digital outputs DIGITAL-OUT 1+2 can not be used with the PMCprimo programming
language.
But you can select with PDrive, screen window “I/O Digital“, a predefined output function ,
e.g. „regen resistor threshold exceeded“.
More information can be found in the PDrive user manual.
