9.7 Digital signals

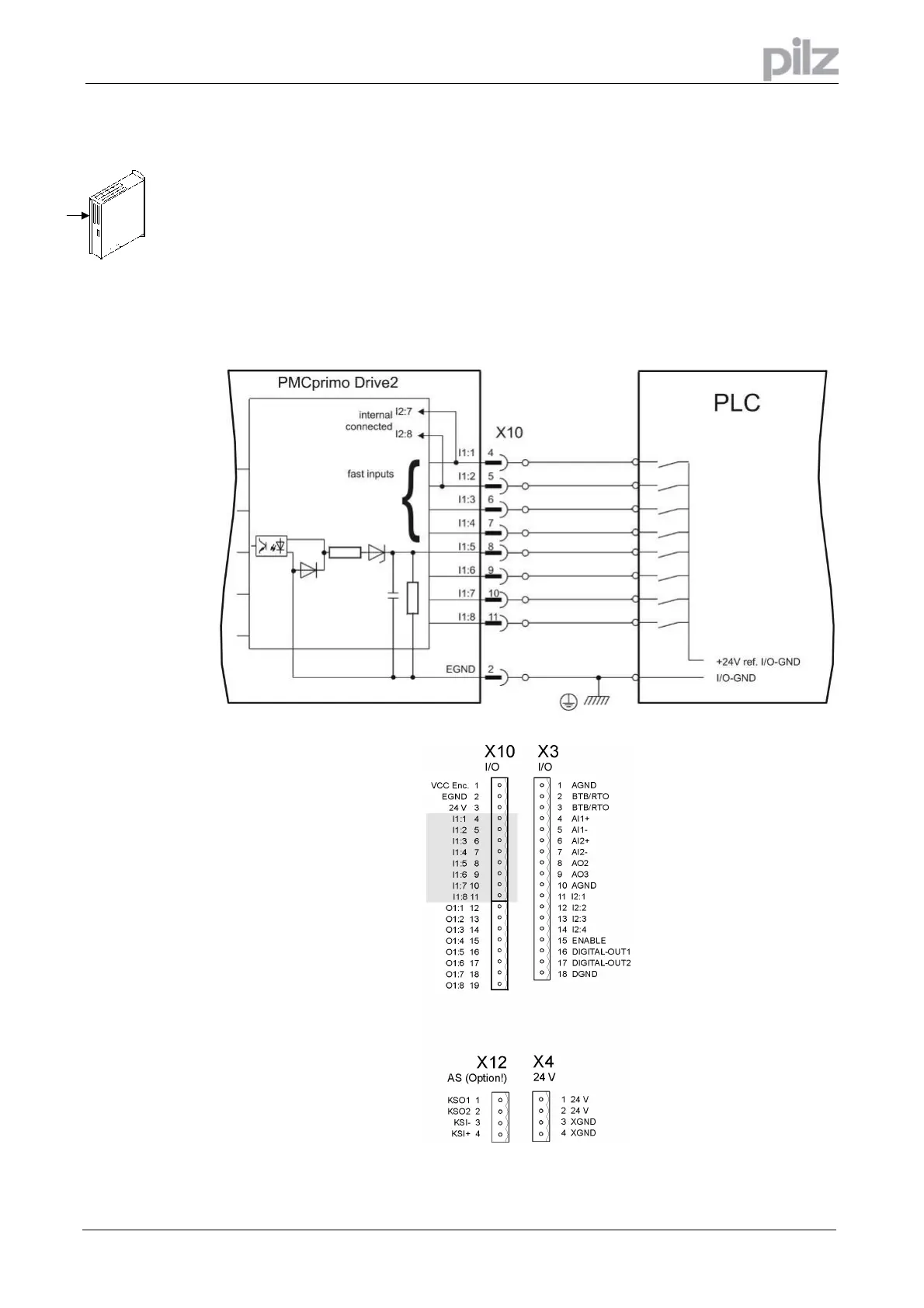

9.7.1 Digital inputs I1:1 - I1:8 (X10)
All digital inputs are electrically isolated through optocouplers
• Reference ground is EGND (terminal X10, Pin 2)
• Logic is PLC compatible
• H-level: +11..24V / 10 mA
• L-level: 0 V .. 11 V/ 0 mA
• The inputs I1:1 to I1:4 are „fast“ inputs (< 1 us) for e.g. product referencing
• I1:1 and I1:2 will be additionally mapped to both inputs E2:7 and E2:8
