9 Interfaces

Installation manual PMCprimo Drive2

Page 65

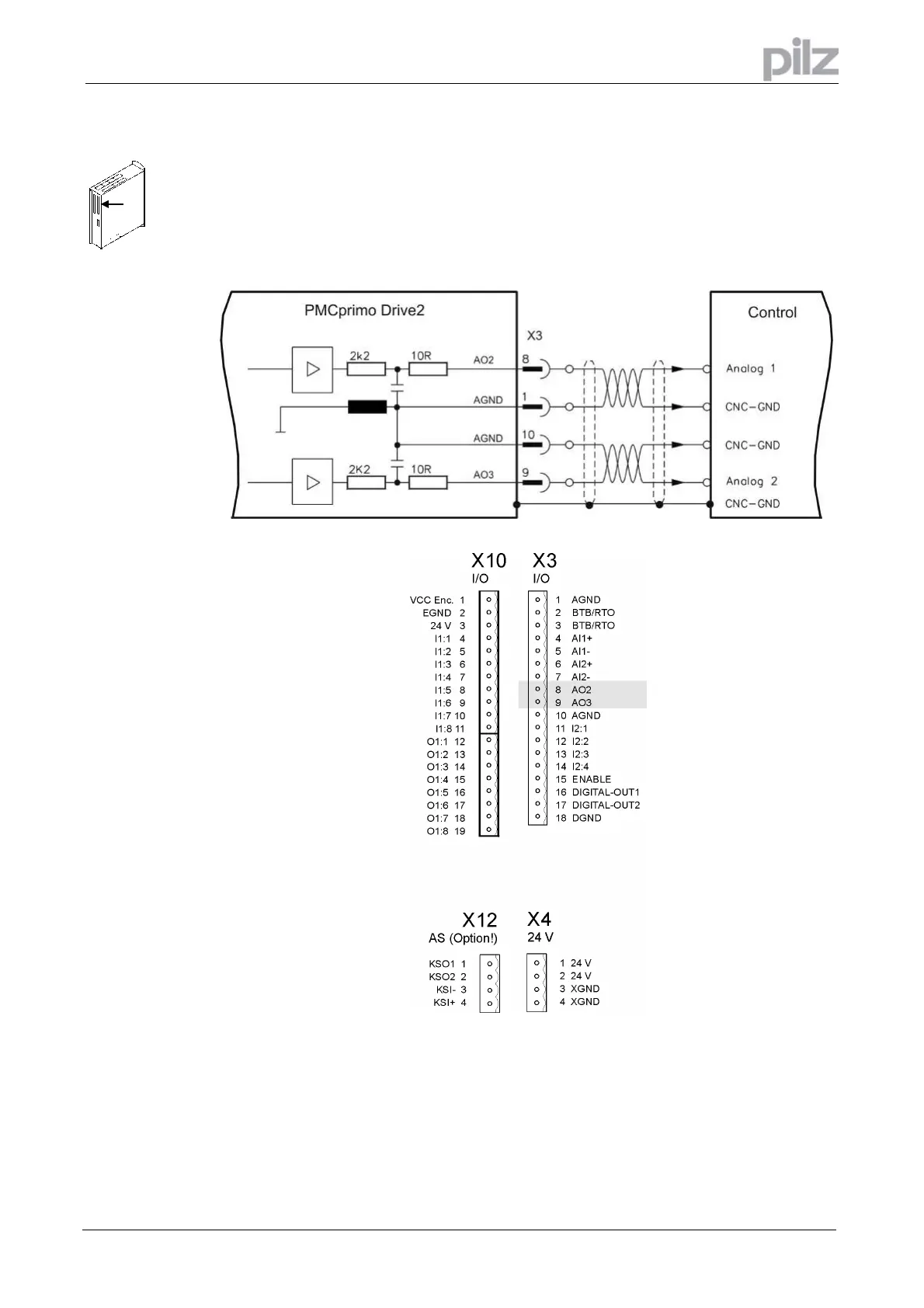

9.8 Analog signals

9.8.1 Analog outputs AO2 and AO3 (X3)

• Reference ground is AGND (Terminal X3 Pin1 and X3 Pin10)

• Output resistance: 2,2 kΩ

• Output voltage range: ± 10 V

• Resolution: 10 Bit
