9 Interfaces
Installation manual PMCprimo Drive2
Page 53

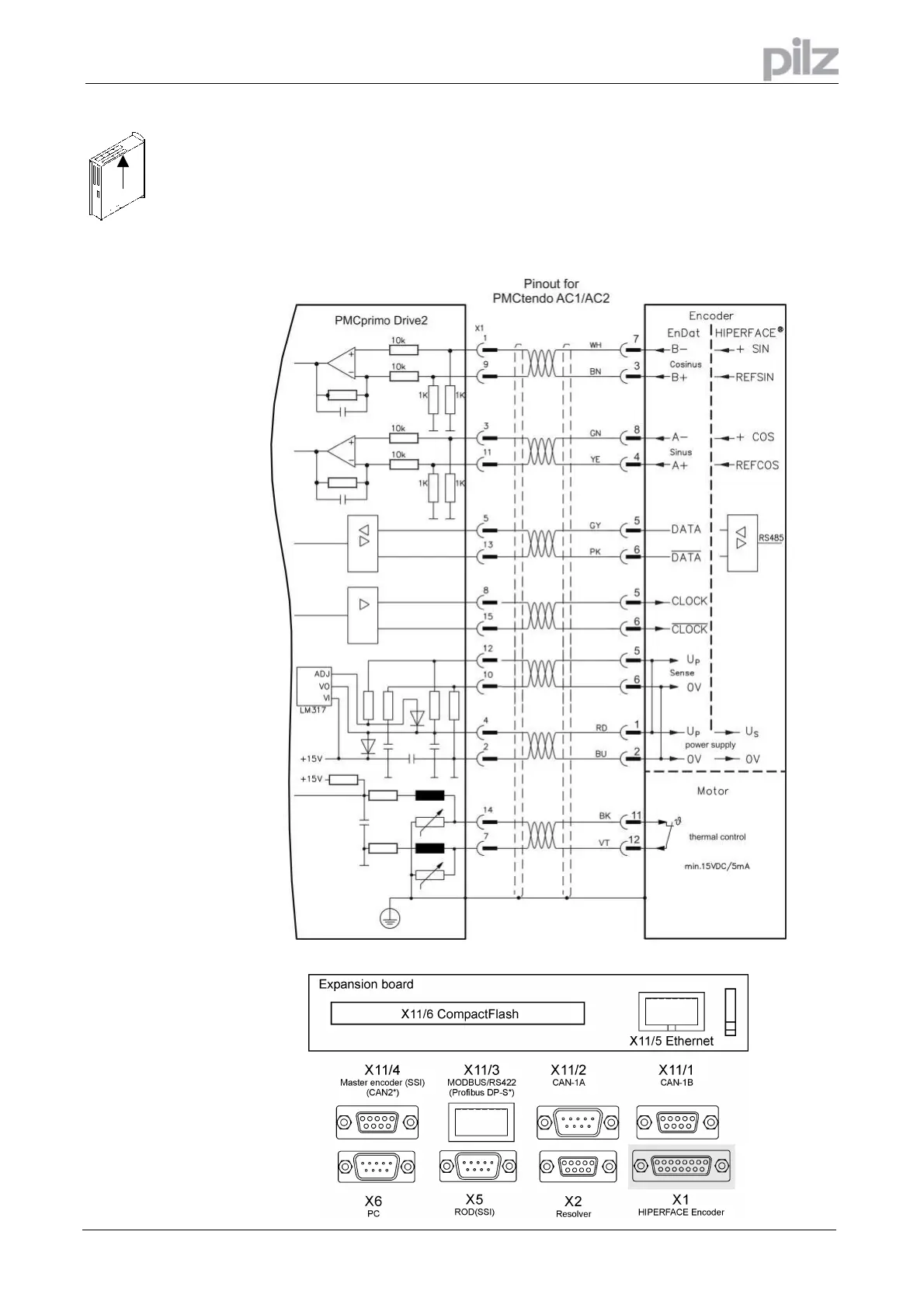

9.4.2 HIPERFACE Encoder (X1)
As an option, the motors can be fitted with a single-turn or multiturn sine-cosine encoder
(HIPERFACE).
This encoder is used by the PMCprimo Drive2 as a feedback device for drive tasks which require
highly precise positioning or extremely smooth running.
If lead lengths of more than 50m are planned, please consult our applications department.
The thermostat contact in the motor is connected via the encoder cable to the PMCprimo Drive2
and evaluated there.
