9 Interfaces
Installation manual PMCprimo Drive2
Page 47

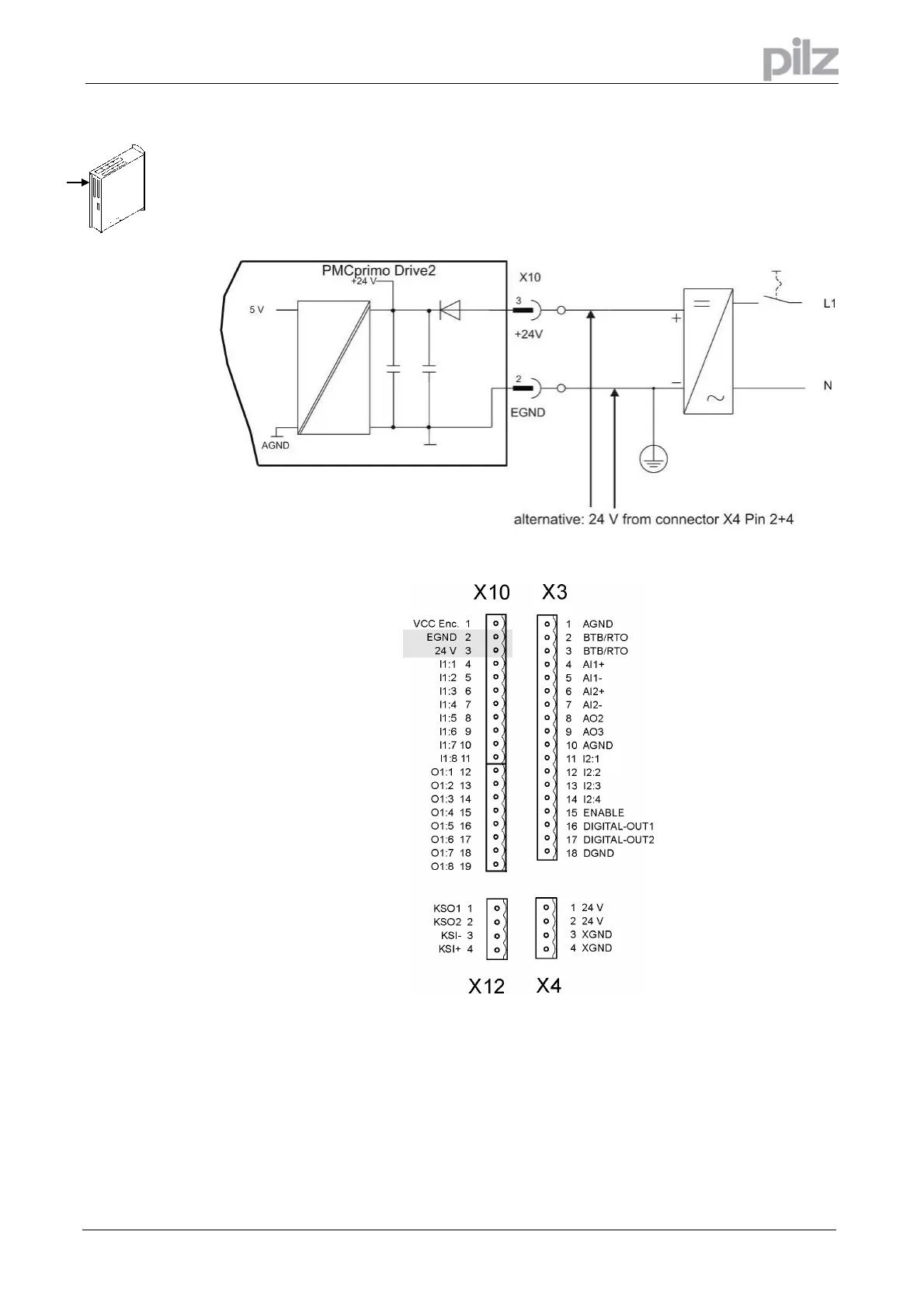

9.1.3 24V-Supply (X10)
• Electrically isolated, external 24V DC supply, e.g. with insulating transformer
• You can take 24 V from terminal X4
• Required current rating ⇒ page 20
• See important notes to commissioning ⇒ page 78
