9 Interfaces
Installation manual PMCprimo Drive2
Page 57

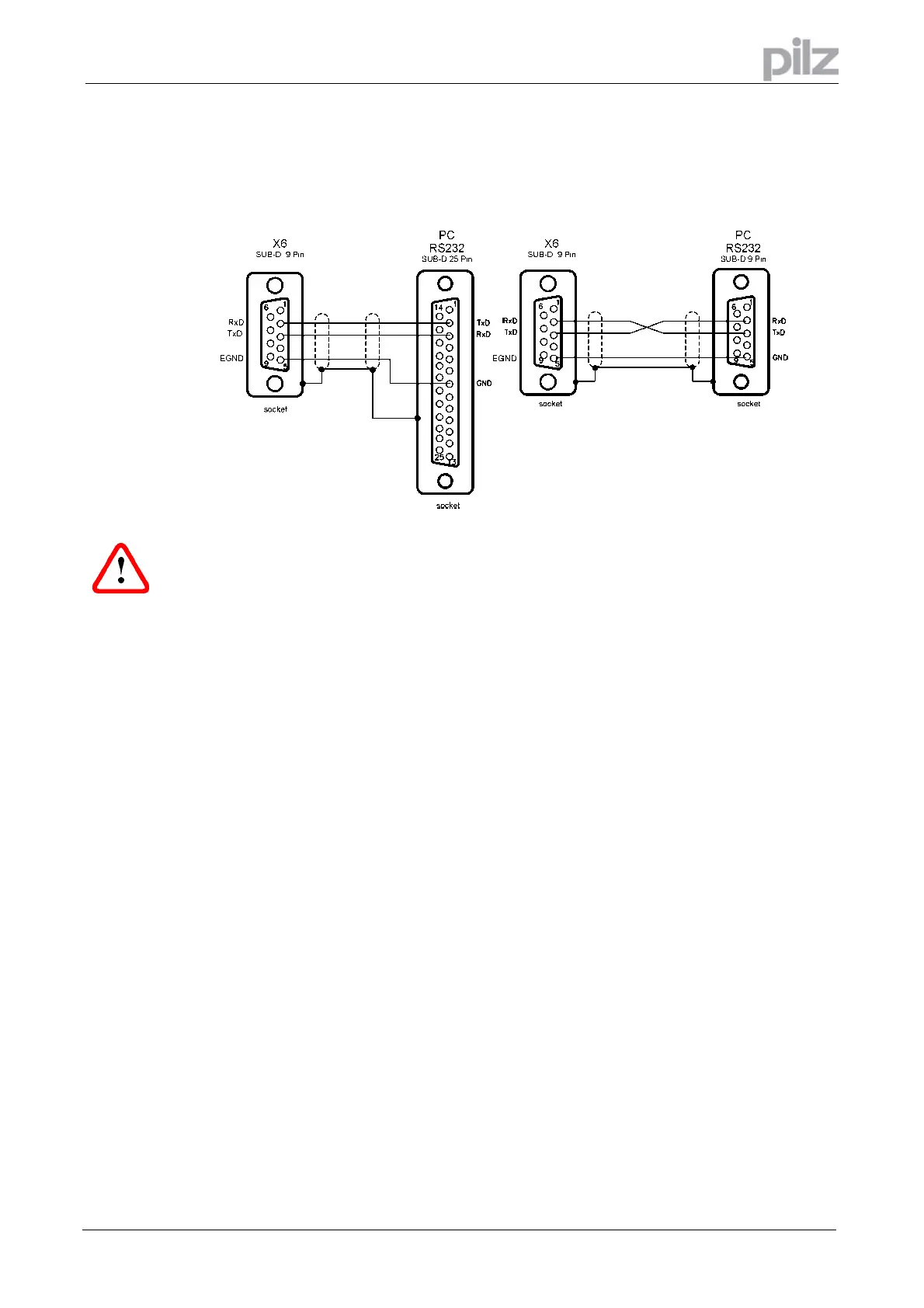

9.6.2 Pin assignment of the null-modem cable
View:
Looking at the face of the built-in SUB-D connectors, this corresponds to the solder side of the
SUB-D sockets on the cable.
Caution!
Do not connect more cores than shown: X6 (Pin 2,3,5)!
The interface may be damaged!
