11 Appendix
Installation manual PMCprimo Drive2
Page 89

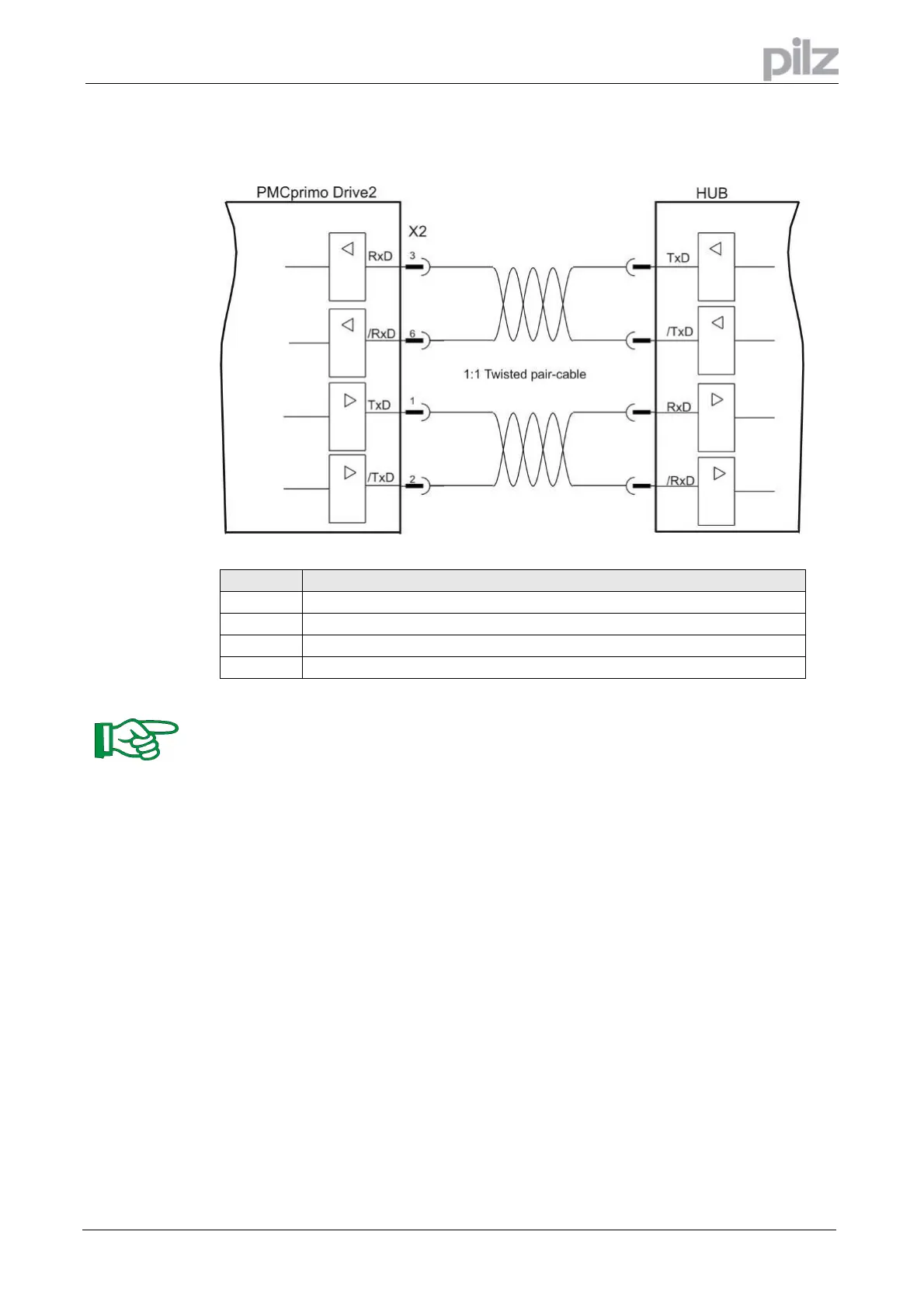

11.1.6.2 Interface
Pin Description
1
TxD (send data)
2
/TxD (send data inverted)
3
RxD (receive data)
6
/RxD (receive data inverted)
Note!
For direct connection of the Ethernet interface with a PC you must use a crossover cable.
The shown cable here is only for use with a hub.
