11 Appendix
Page 88
Installation manual PMCprimo Drive2

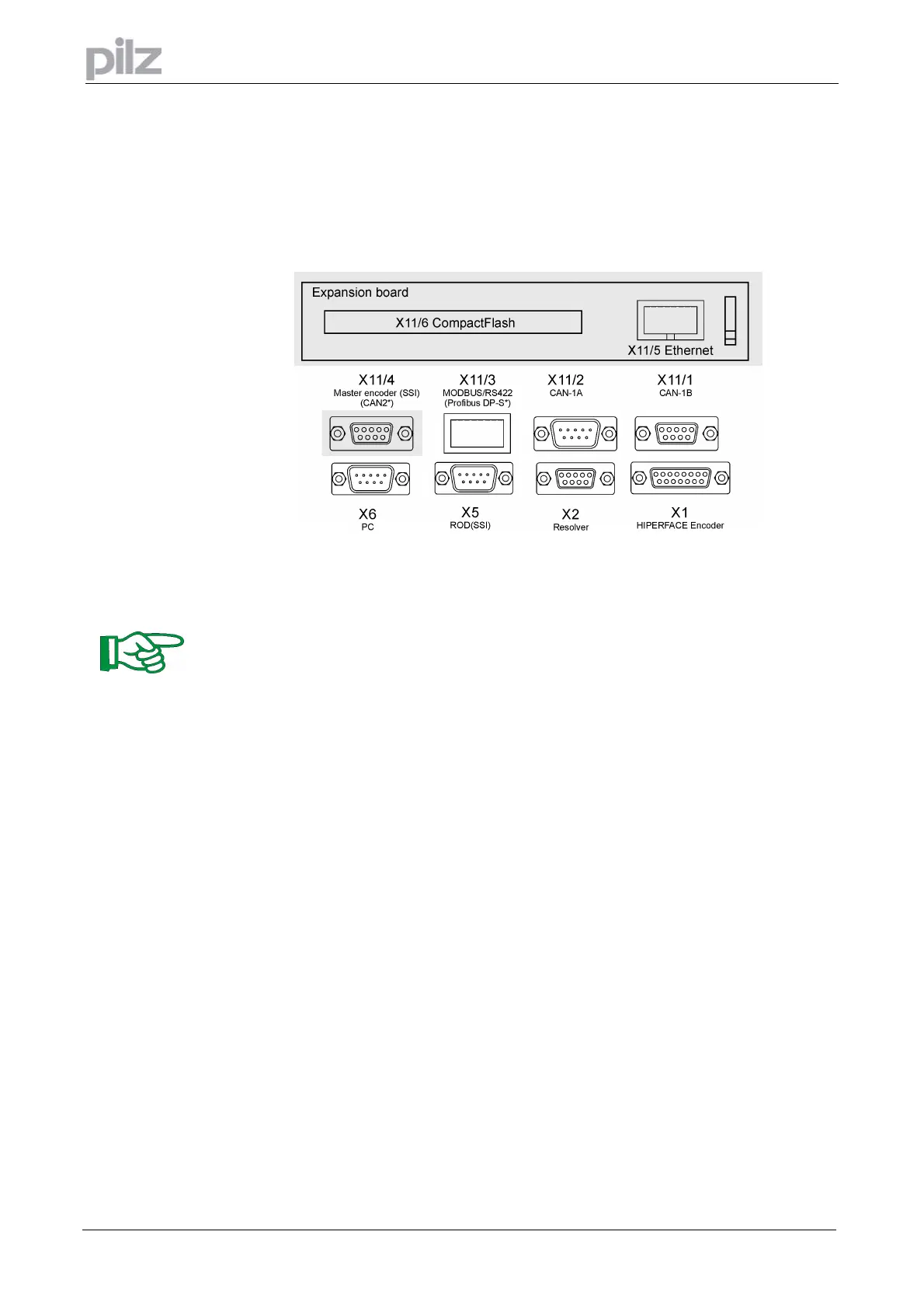

11.1.5 Expansion board
The new expansion board offers 2 new additional interfaces. On the board you can find a slot for
compact-flash cards (up to 1 GB) and an Ethernet interface. There is also a second CAN interface
on the board. The connector for this CAN interface is located on the PMCprimo-card.
The Ethernet interface can be used as alternative, or additionally, to the serial connection.
Further hardware on the expansion board are battery backed RAM memory (8kB) and a real-time
clock.
Note:
It is not possible to use the CAN-2 interface with a incremental or SSI encoder at the same
time. The configuration is made via jumpers (see page 71)
11.1.6 Ethernet interface of the expansion board X11/5
11.1.6.1 General
The Ethernet interface of the expansion board (RJ45, X11/5) is a fast alternative to the RS232
transfer.
With the terminal software PTerm data can transmitted with a speed of 100 Mbit/s.
The PMCprimo Drive2 can also be programmed and monitored locally in a Ethernet-network,
without direct presence of a programmer.
