9 Interfaces
Page 76
Installation manual PMCprimo Drive2
In this example the bus variables $B1 up to $B16 are read and written (16 Words = 32 Bytes at all).
Subsequent, the Profibus-DP-Master has to be configured to IN/OUT: 32 Byte (16 word). The GSD
file is named: HSM_1810.gsd.

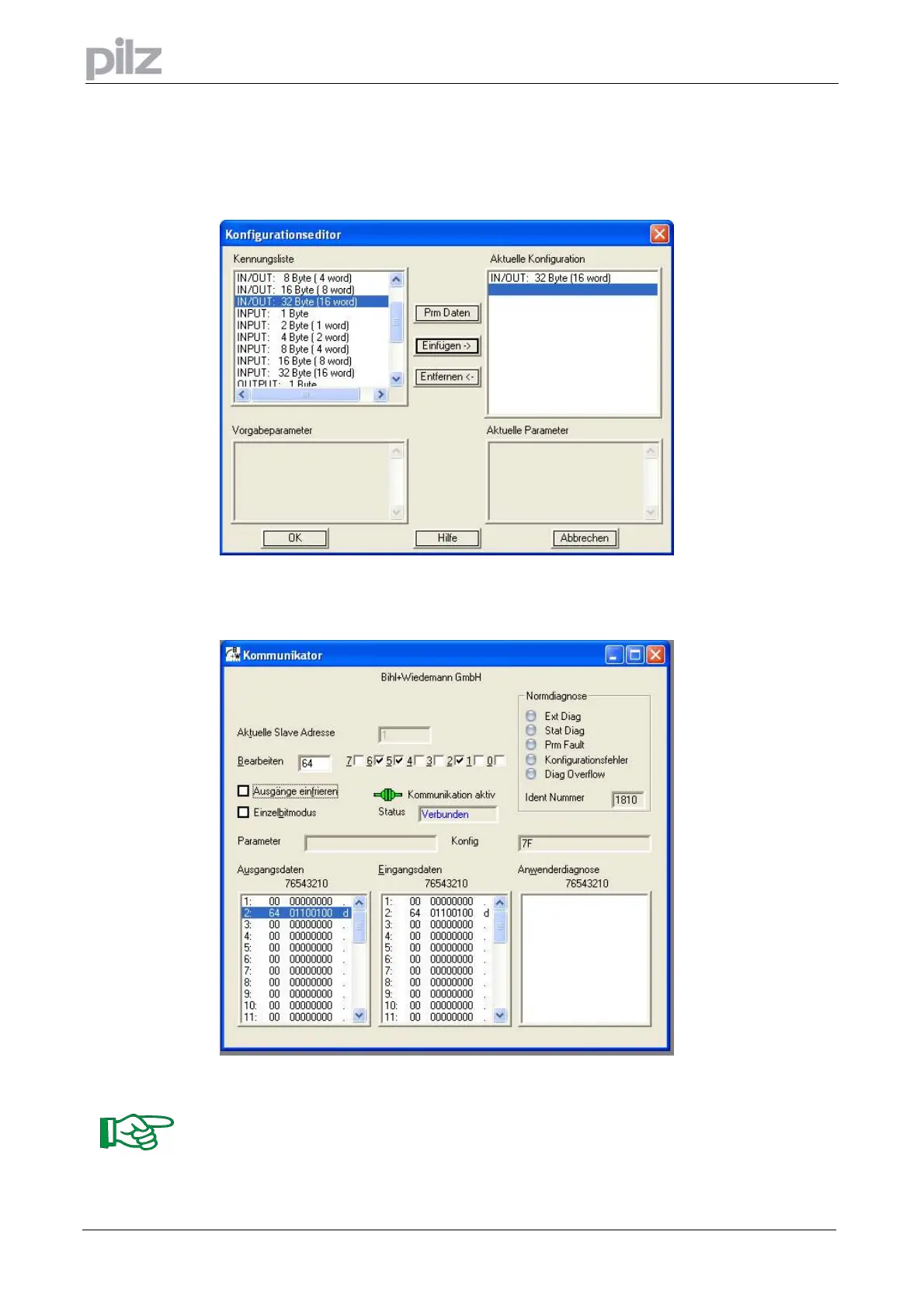

Example: Profibus-DP-Master simulator:
After starting the Profibus communication the bus variables can be set or read.
Example: Setting the bus variable $B1 to value 100 (0x0064):
0.1: $B1=100 (0x00000064)
More information can be found in the technical documentation.
