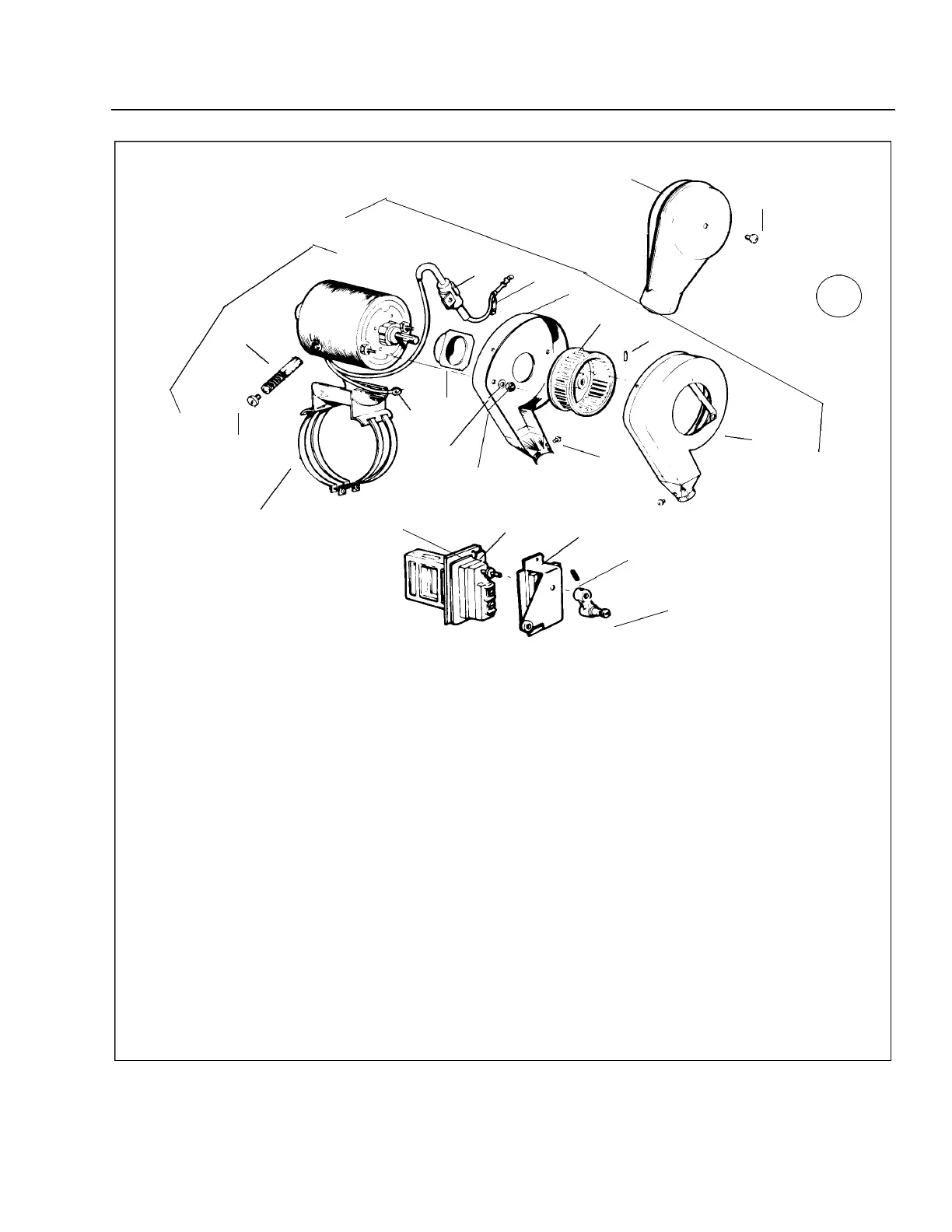

Figure 21-19. Exploded View - Combustion Air Blower and Motor Assembly
1. COMBUSTION AIR BLOWER AND MOTOR ASSEMBLY 12. CAP - BRUSH ASSEMBLY
2. ADAPTER ASSEMBLY - BLOWER INLET 13. MOUNT - COMBUSTION AIR BLOWER SUPPORT
3. HOUSING - BLOWER OUTER HALF 14. ELECTRICAL LEAD
4. COMBUSTION AIR BLOWER AND MOTOR 15. SPACER
5. MOTOR ASSEMBLY - COMBUSTION AIR BLOWER 16. WASHER
6. SET SCREW - BLOWER FAN 17. LOCK NUT - AN345-10
7. FAN - COMBUSTION AIR BLOWER 18. SCREWS
8. HOUSING - BLOWER INNER HALF 19. SPACER
9. STRAP - CABLE 20. SWITCH - ADJUSTABLE DUCT
10. CAPACITOR 21. COVER - SWITCH
11. BRUSH ASSEMBLY 22. SCREW - AN565 D8 H3
23. LEVER ASSEMBLY - SWITCH
1971
1
23
22
21
20
19
18
3
18
6
7
8
9
10
17
16
15
14
13
12
11
5
4
2
PA - 4 4 - 1 8 0 / 1 8 0 T
AIRPLANE MAINTENANCE MANUAL
2 1 - 4 4 - 0 8
Page 21-41
Revised: May 15, 1989
1G8
PIPER AIRCRAFT
