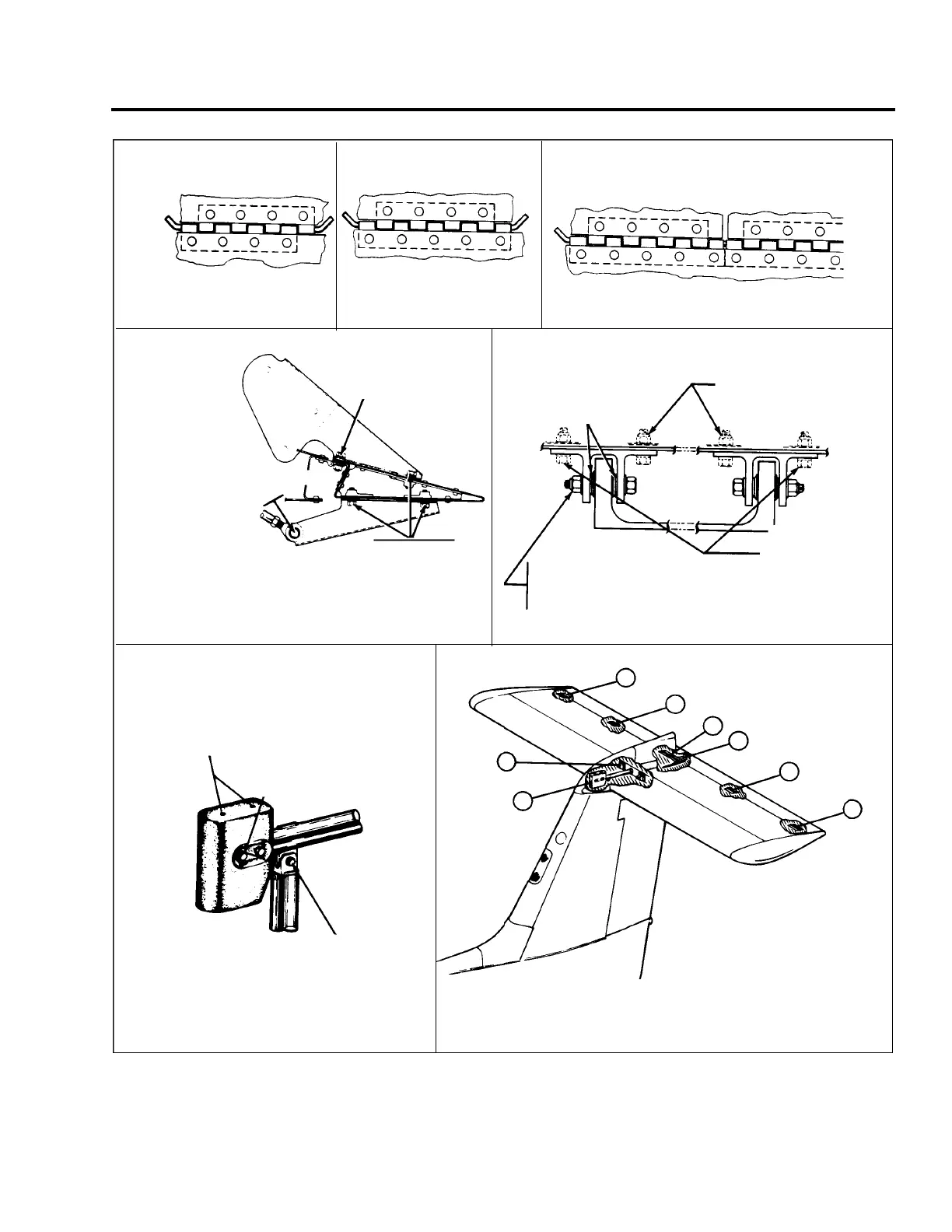

Figure 55-1. Stabilator Installation
A595
SKETCH A
SKETCH D
SKETCH F
SKETCH E
SKETCH B SKETCH C
BOLT AN3-10A
WASHER AN960-10
(2 REQ.)
NUT MS20365-1032C
BOLT AN3-4A
WASHER AN960-10L
(6 REQ.)
96564-0 BAL. PLATES
AN4H-6A BOLTS (2 REQ. )
AN960-416C WASHER(S)
AN4-20A
AN960-416A (UNDER HEAD)
MS20365-428C (2 REQ. )
BOLT AN4-12
WASHER AN960-416 (2 REQ. )
NUT AN310-4
COTTER PIN MS24665-132
BOLT AN3-4A
WASHER AN960-10L
NUT MS20365-1032C
(2 REQ.)
BOLT AN4-7A
WASHER AN960-416
NUT MS20365-428C
(4 REQ. )
WASHER AN960-416L OR
WASHER AN960-416
ALTERNATE WASHERS AS
REQUIRED TO LIMIT SIDE
PLAY TO .010 MAX.
BOLT AN4-6A
WASHER AN960-416
NUT MS20365-428C
(4 REQ. )
BOLT NAS1104-17
WASHER AN960-416 (UNDER BOLT
HEAD)
WASHER AN960-416 (UNDER NUT)
NUT H10-4 (2 REQ.)
D
B
A
C
F
B
A
E
PA - 4 4 - 1 8 0 / 1 8 0 T
AIRPLANE MAINTENANCE MANUAL
5 5 - 2 3 - 0 0
Page 55-02
Revised: May 15, 1989
3B11
PIPER AIRCRAFT
