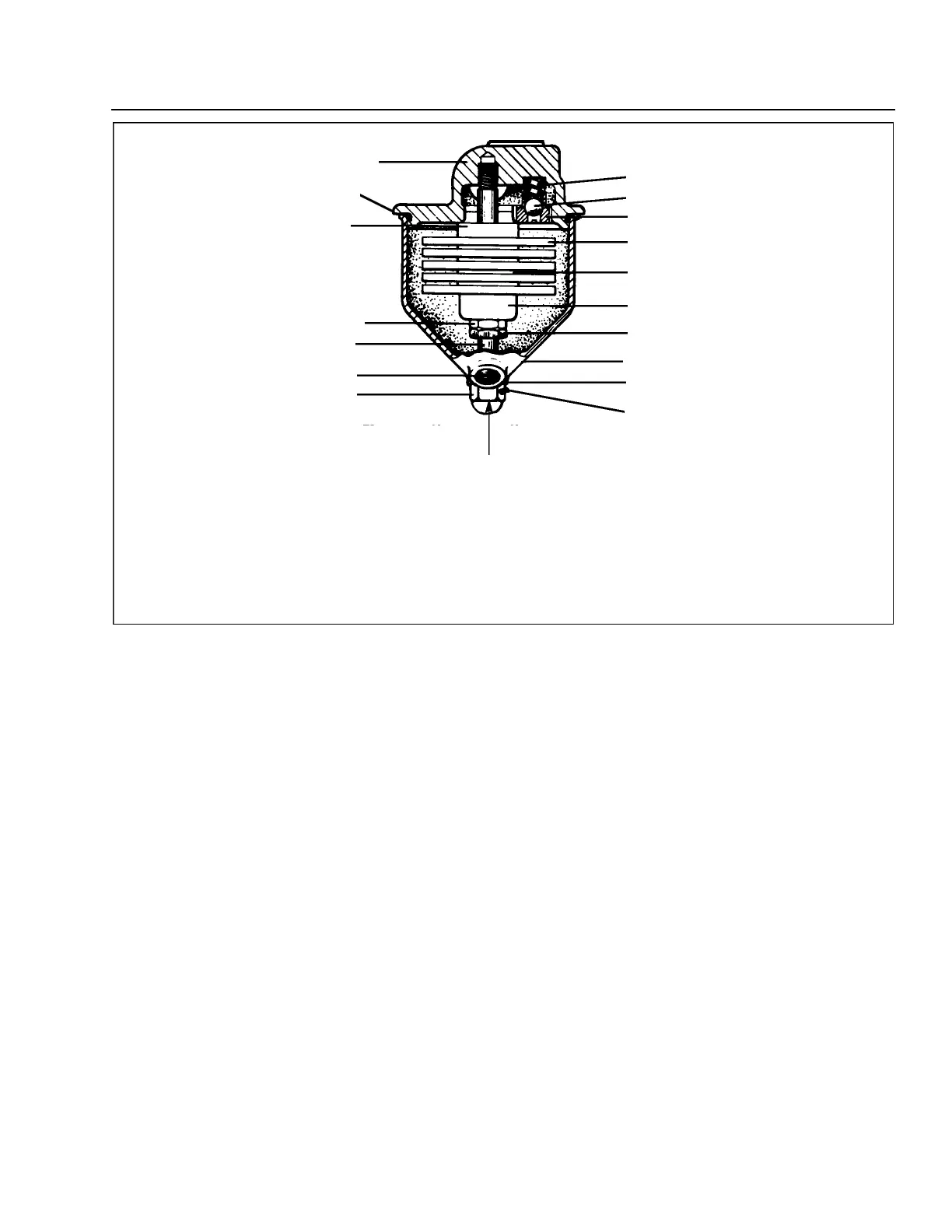

Figure 28-4. Gascolator Assembly
FUEL SELECTOR VALVE.
REMOVAL OF FUEL SELECTOR VALVE.
1. The fuel selector valve need not be removed unless any of the following conditions exist:
A. Failure of selector lever to seat in detent.
B. Signs of leakage.
C. Difficulty in moving fuel selector lever.
2. In the event it is necessary to remove the fuel selector valve, remove rear seat and floor.
3. Drain appropriate fuel tank. (Refer to Draining Fuel Tank, Chapter 12.)
4. Disconnect control cable from valve selector lever. Disconnect fuel lines and mounting hardware and
remove fuel selector valve.
— Note —
Except for replacement of O-rings, the fuel selector valve should be overhauled only
when necessary.
It is suggested that the selector lever and control cable ends be color coded for correct
reassembly.
255
1
2
3
4
5
6
7
TORQUE 60 TO 80 INCH-POUNDS
8
9
10
11
12
13
14
15
16
17
1. BODY, FILTER 10. SEAT, RELIEF
2. O-RING SEAL 11. DISCS, FILTER
3. TUBE, OUTER 12. WASHERS
4. NUT 13. CUP, RETAINER
5. STUD 14. NUT, CHECK
6. DRAIN, FILTER, FITTING 15. BOWL, FILTER
7. NUT 16. WASHER
8. SPRING 17. SAFETY WIRE
10. BALL, RELIEF
PA - 4 4 - 1 8 0 / 1 8 0 T
AIRPLANE MAINTENANCE MANUAL
2 8 - 2 2 - 0 1
Page 28-16
Revised: May 15, 1989
2B11
PIPER AIRCRAFT
