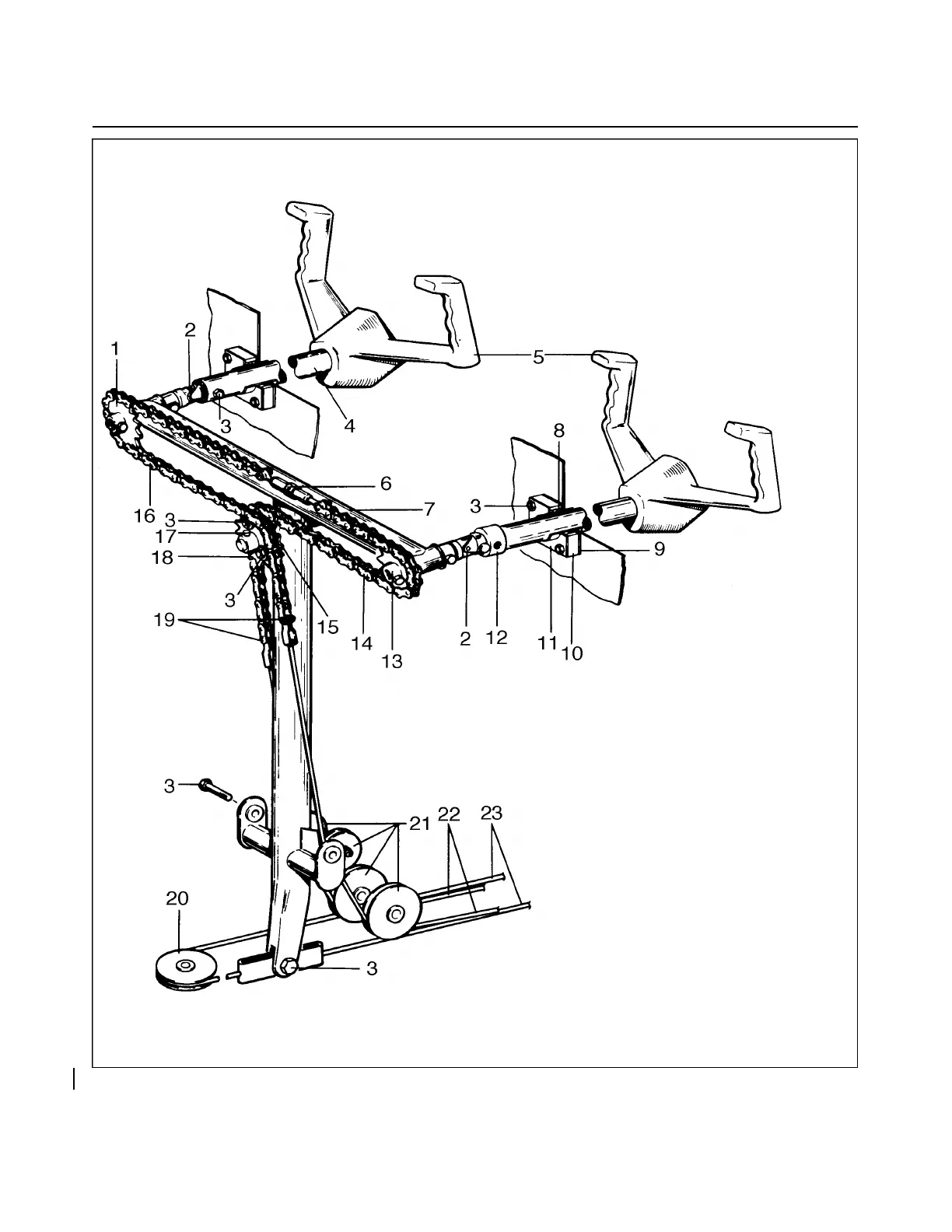

Figure 27-6. Control Column Assembly
PIPER AIRCRAFT
PA - 4 4 - 1 8 0 / 1 8 0 T
AIRPLANE MAINTENANCE MANUAL
27-00-00
Page 27-11
Revised: June 20, 1995
1K13
1. SPROCKET, RIGHT CONTROL WHEEL
2. FLEXIBLE JOINT
3. BOLT ASSY.
4. TUBE, CONTROL WHEEL
5. CONTROL WHEEL (L&R)
6. TURNBUCKLE
7. TEE BAR ASSY.
8. “O” RING
9. WASHER, CONTROL WHEEL
10. PLATE, CONTROL WHEEL
11. WASHER, CONTROL WHEEL
12. SPACER, STOP
13. SPROCKET, LEFT CONTROL WHEEL
14. CHAIN, LEFT ROLLER
15. IDLER SPROCKET, AFT
16. CHAIN, RIGHT ROLLER
17. PIN
18. IDLER SPROCKET, FORWARD
20. PULLEY STABILATOR
21. PULLEYS AILERON
22. CABLES, AILERON CONTROL
23. CABLES, STABILATOR CONTROL
