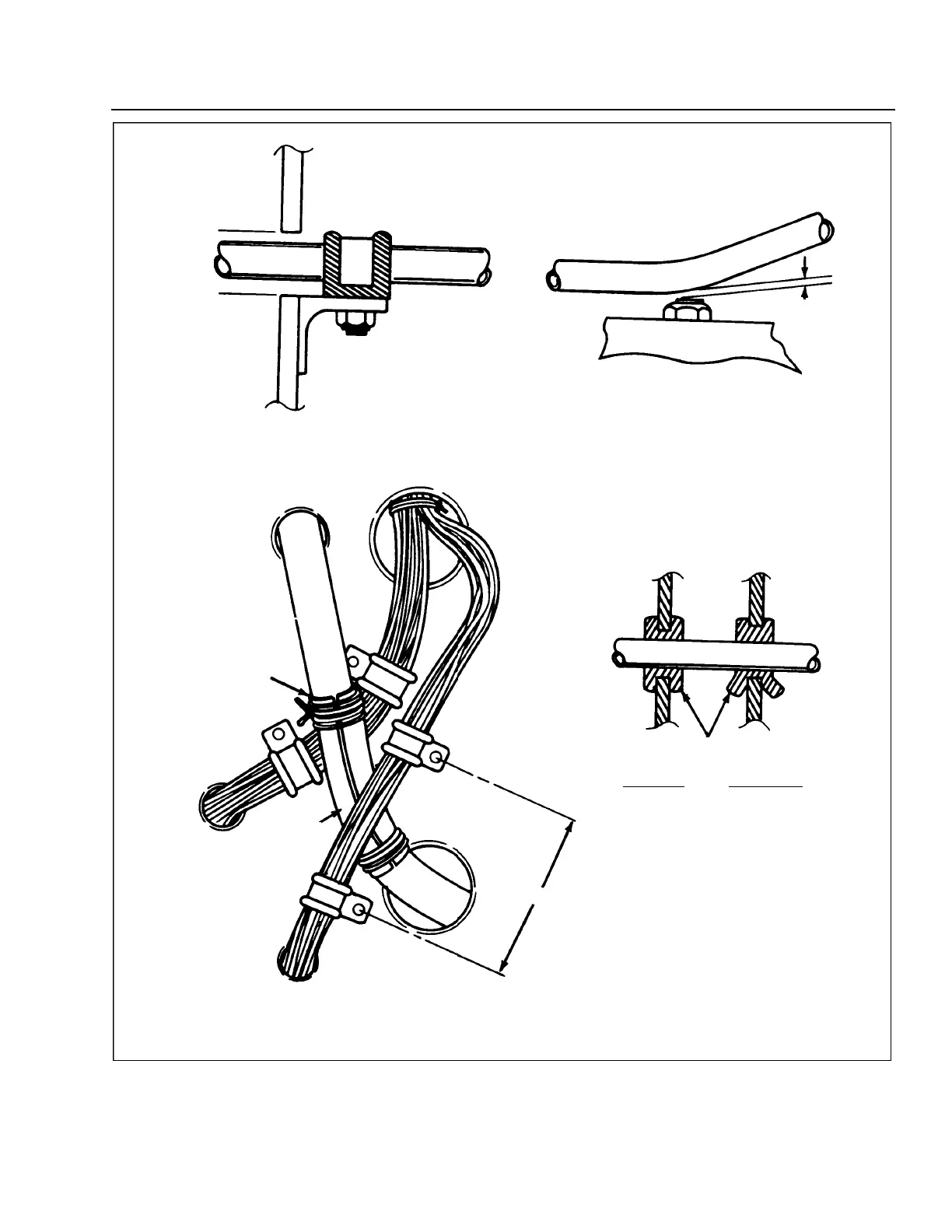

Figure 35-4. Oxygen Tubing Installation
B870
1/8" MIN.
1/8" MIN.
1/8" MIN.
SKETCH B
SKETCH D
SKETCH A
SKETCH C
NEOPRENE HOSE MAY BE
SLIT TO FIT OVER TUBING
SECURE WITH MS3367
CABLE TIES. POSITION SLIT
AWAY FROM WIRES ETC.
CLAMP WIRE BUNDLE
EVERY 2" AT
CROSSOVERS.
GROMMET
SLIT HOSE
INCORRECTCORRECT
2”
PA - 4 4 - 1 8 0 / 1 8 0 T
AIRPLANE MAINTENANCE MANUAL
3 5 - 11 - 0 1
Page 35-07
Revised: May 15, 1989
2J15
