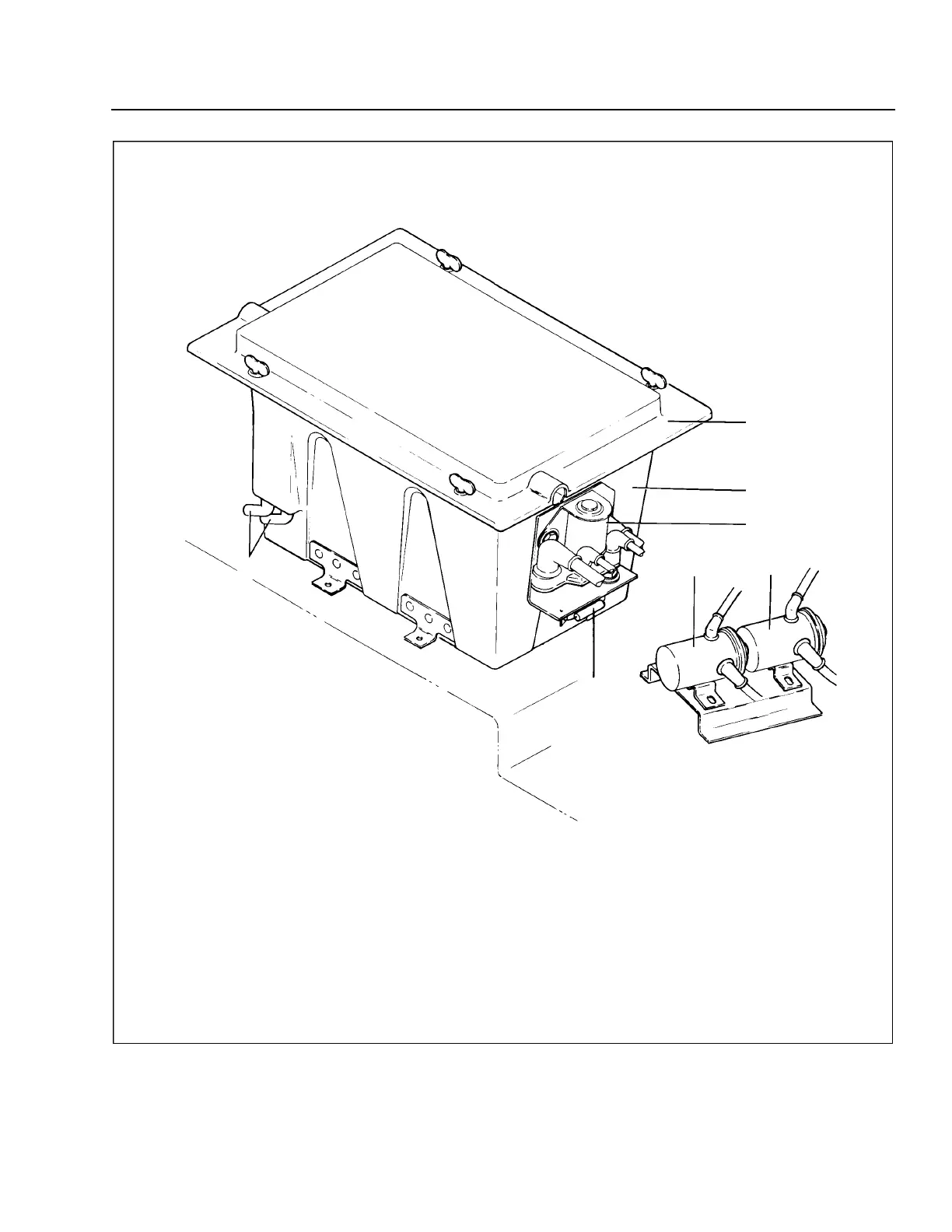

Figure 24-2. Battery Box
2278
7
6
5
4
3
2
1
1. BATTERY BOX COVER
2. BATTERY BOX ASSEMBLY
3. POWER RELAY
4. STARTER SOLENOID
5. STARTER SOLENOID
6. VENT TUBES
7. MASTER RELAY DIODE
PA - 4 4 - 1 8 0 / 1 8 0 T
AIRPLANE MAINTENANCE MANUAL
2 4 - 3 1 - 0 2
Page 24-12
Revised: May 15, 1989
1I24
