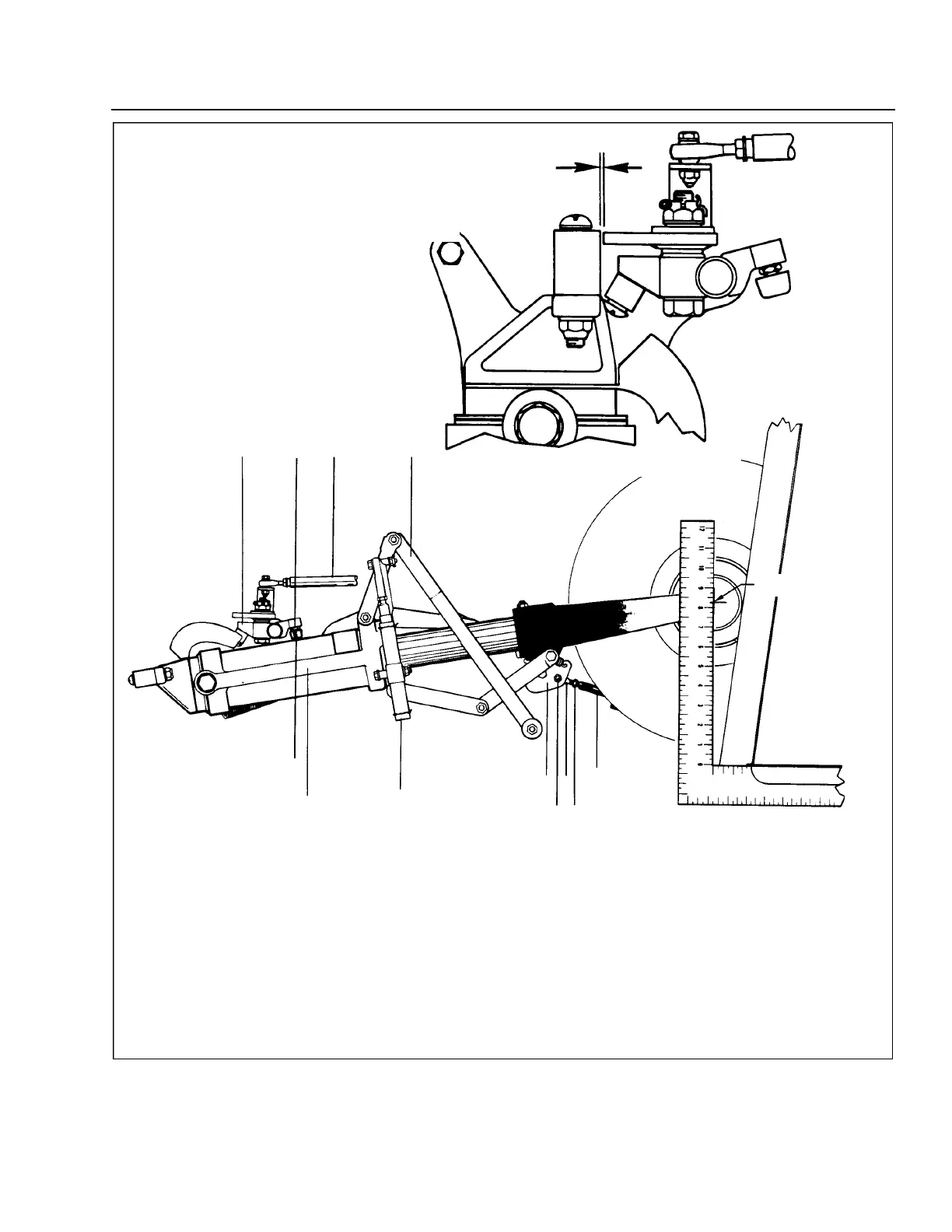

Figure 32-9. Nose Gear Adjustment
2305
C686
1. STEERING BELLCRANK
2. STEERING ROD
3. UPPER DRAG LINK
4. GEAR UP STOP
5. JAM NUT
6. ACTUATOR ROD, CYLINDER
7. JAM NUT
8. ROD END BEARING
9. BOLT ASSEMBLY
10. DOWNLOCK HOOK
11. SHIMMY DAMPENER
12. STRUT HOUSING
NOTE
ADJUST STEERING CAM TO BUSHING
CLEARANCE OF .031 WITH GEAR DOWN
AND AIRCRAFT WEIGHT ACTING ON NOSE.
SEE NOTE
NOSE GEAR IN EXTENDED POSITION
8.25 ± .25"
1 2
3
4
5
6
7
8
9
10
11
12
PA - 4 4 - 1 8 0 / 1 8 0 T
AIRPLANE MAINTENANCE MANUAL
3 2 - 2 2 - 0 6
Page 32-34
Revised: May 15, 1989
2H2
PIPER AIRCRAFT
