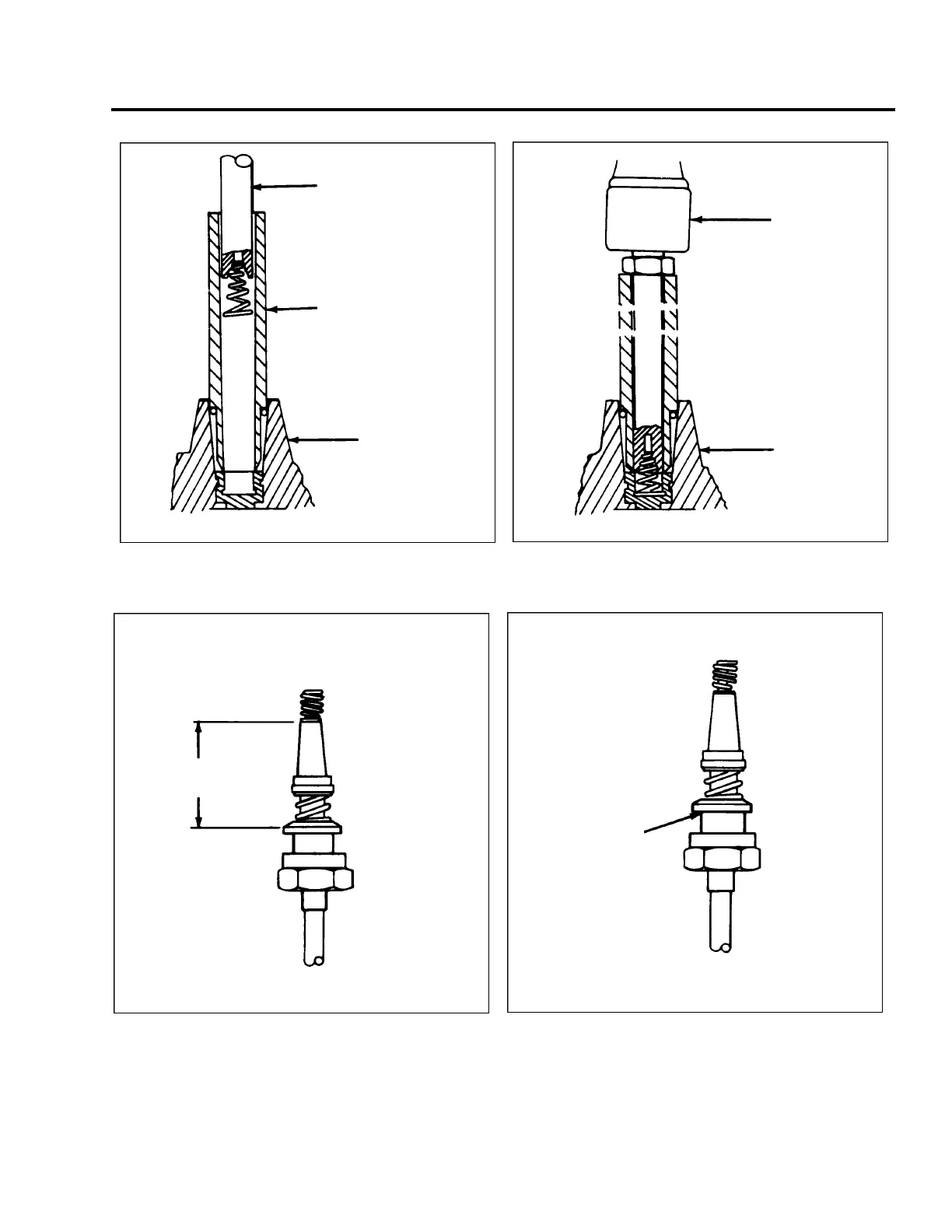

Figure 74-28. Position of 11-8627 Kit and Figure 74-29. Position of 11-8627 Kit and
Contact Spring at Start of Installation Contact Spring after Installation
Figure 74-30. Lubricating Sleeve Figure 74-31. Lubricating Ferrule Shoulder
C473
11-8625
PLUNGER
ASSEMBLY
11-8626
SPRING
INSERTION
GUIDE
DISTRIBUTOR
BLOCK
C467
COAT
C467A
LUBRICATE
C473A
DISTRIBUTOR
BLOCK
11-3699
HANDLE
PA - 4 4 - 1 8 0 / 1 8 0 T
AIRPLANE MAINTENANCE MANUAL
7 4 - 2 1 - 0 2
Page 74-24
Revised: May 15, 1989
3G17
