375
376B
KNIFE
SWITCH
CARBON
PILE
BATTERY
GROUND
GROUND
STARTING
MOTOR
TACHOMETER
AMMETER
VOLTMETER
376A
376

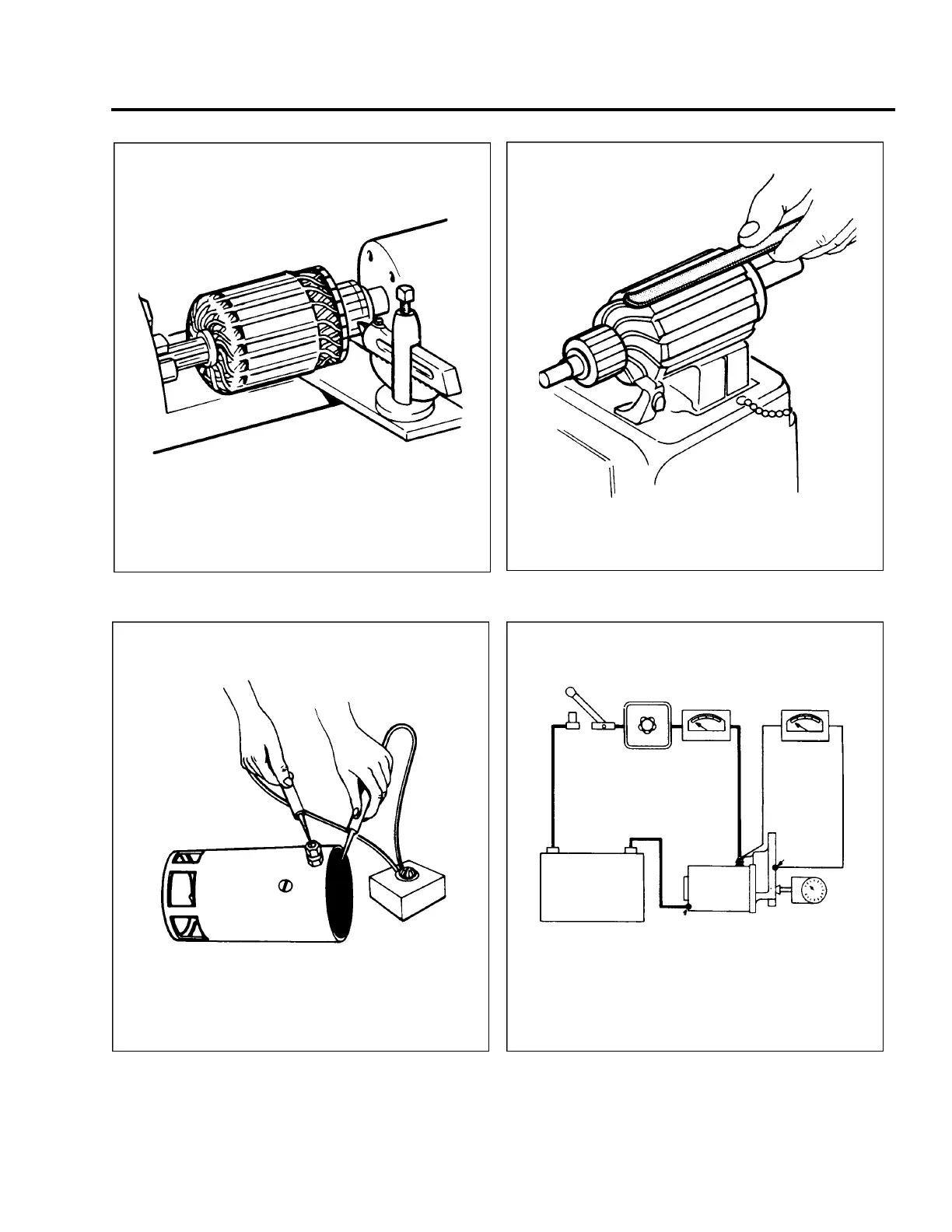

Figure 80-2. Turning Motor Commutator
Figure 80-4. Testing Motor Fields for Grounds
Figure 80-5. No Load Test Hookup
Figure 80-3. Testing Motor Armature for Shorts
PA - 4 4 - 1 8 0 / 1 8 0 T
AIRPLANE MAINTENANCE MANUAL
8 0 - 1 0 - 1 0
Page 80-07
Revised: May 15, 1989
3I19
