Page #827 background imageLoading...
Page #827 background image

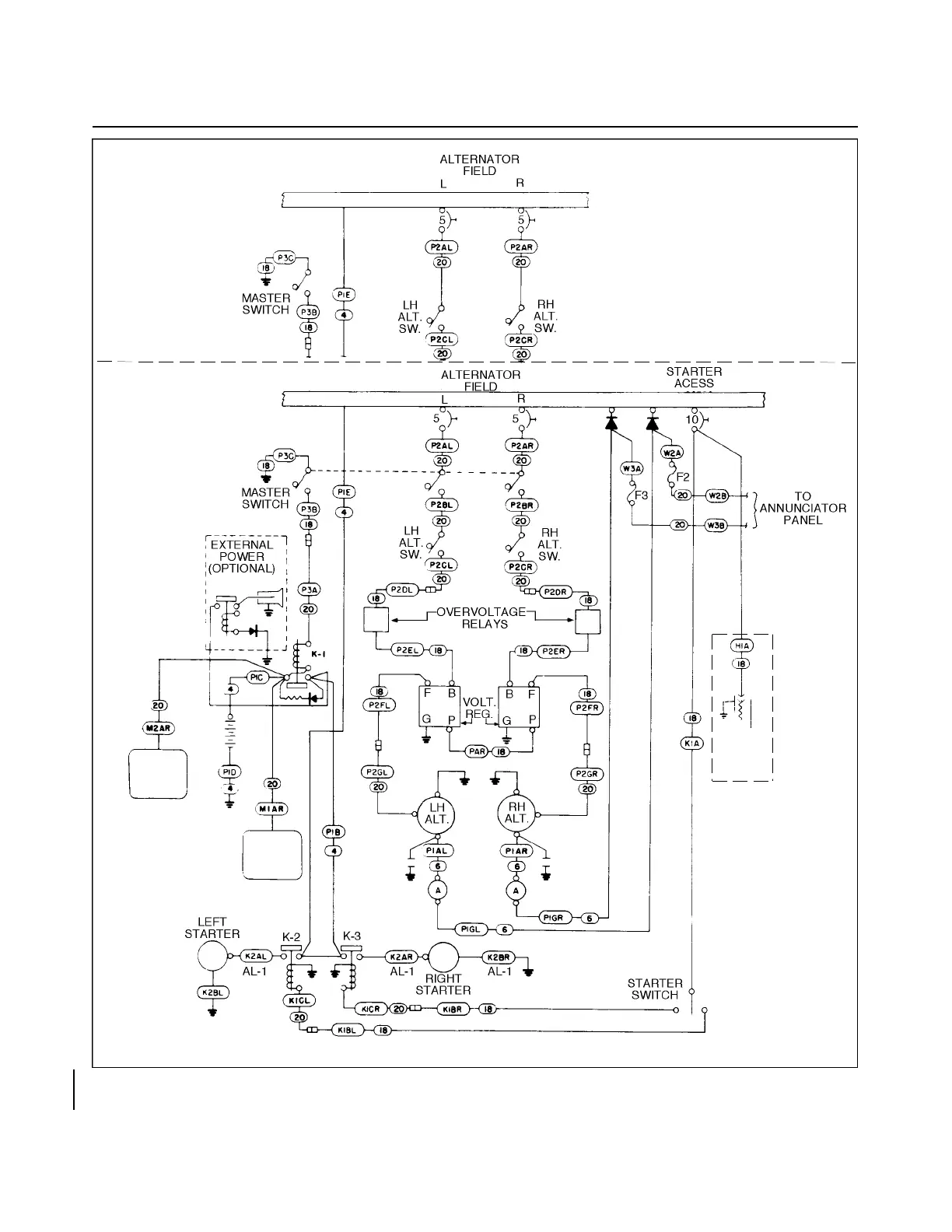

Figure 91-18. Alternator and Starter (PA-44-180, s/n’s 44-7795001 thru
44-8095027, and PA-44-180T, s/n’s 44-8107001 thru 44-8107066)
PIPER AIRCRAFT
PA - 4 4 - 1 8 0 / 1 8 0 T
AIRPLANE MAINTENANCE MANUAL
91-23-00
Page 91-39
Revised: June 20, 1995
4C10
CIGAR
LIGHTER
(OPTIONAL)
SEE OPT.
CLOCK
INST.
SEE OPT.
HOUR
METER
INST.
