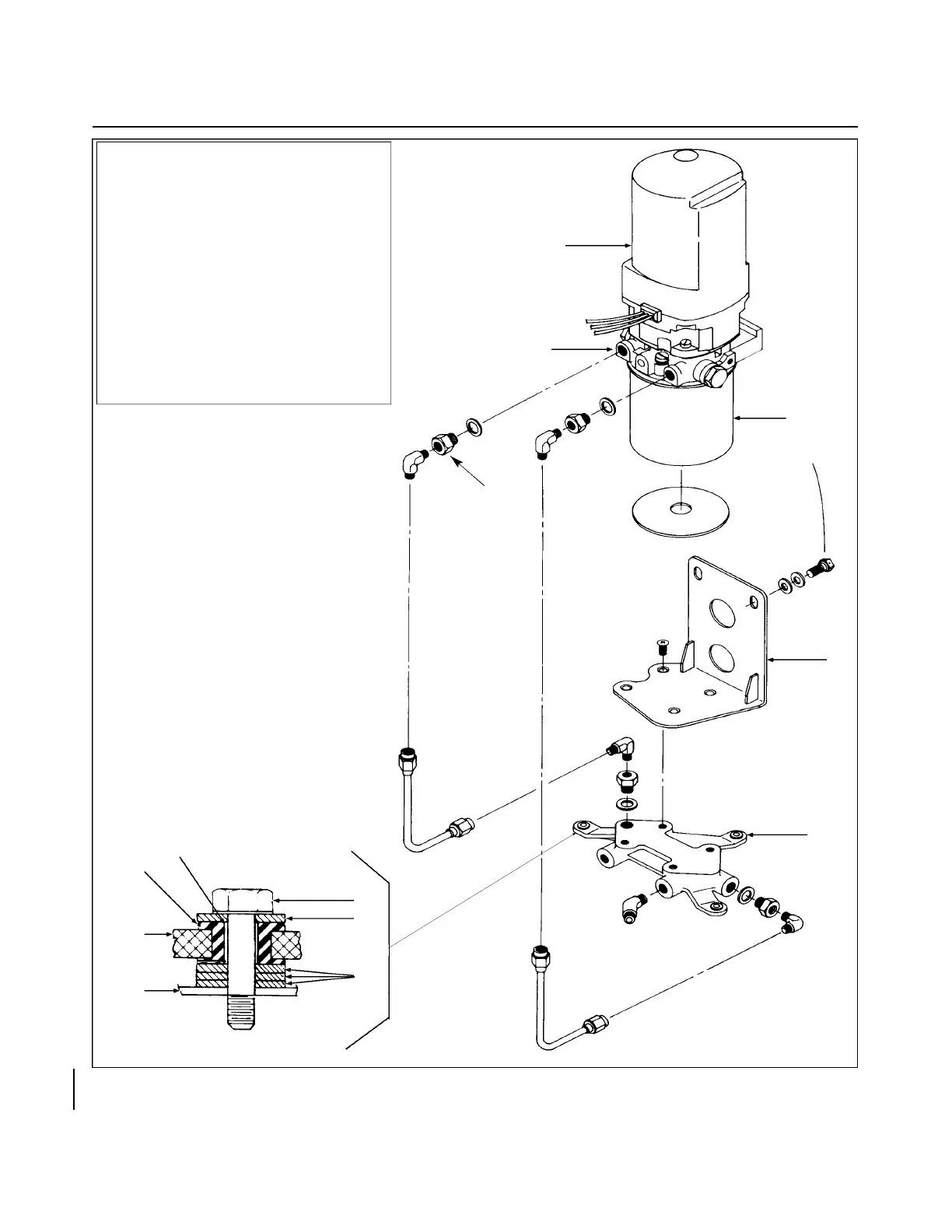

Figure 29-5. Oildyne Hydraulic Pump (Sheet 1 of 2)
PIPER AIRCRAFT
PA - 4 4 - 1 8 0 / 1 8 0 T
AIRPLANE MAINTENANCE MANUAL
29-11-09
Page 29-19
Revised: June 20, 1995
1
2
3
4
5
7
8
9
10
11
12
13
1. MOTOR ASSEMBLY
2. BASIC PUMP-ADAPTER
3. RESERVOIR ASSEMBLY
4. BRACKET-MOUNTING
5. BASE-PUMP
6. RESTRICTOR ELBOW (PIPER P/N
01972-2)
7. 401 269 BOLT (3 REQUIRED)
8. 494 192 WASHER (3 REQUIRED)
9. 494 192 WASHER (9 REQUIRED)
10. DECK ASSEMBLY
11. PUMP BASE
12. 434 120 GROMMET (3 REQUIRED)
13. 65003-30 BUSHING (3REQUIRED)
