Pit Boss Ultimate Griddle Series Assembly Guide

6
EN
ENGLISH

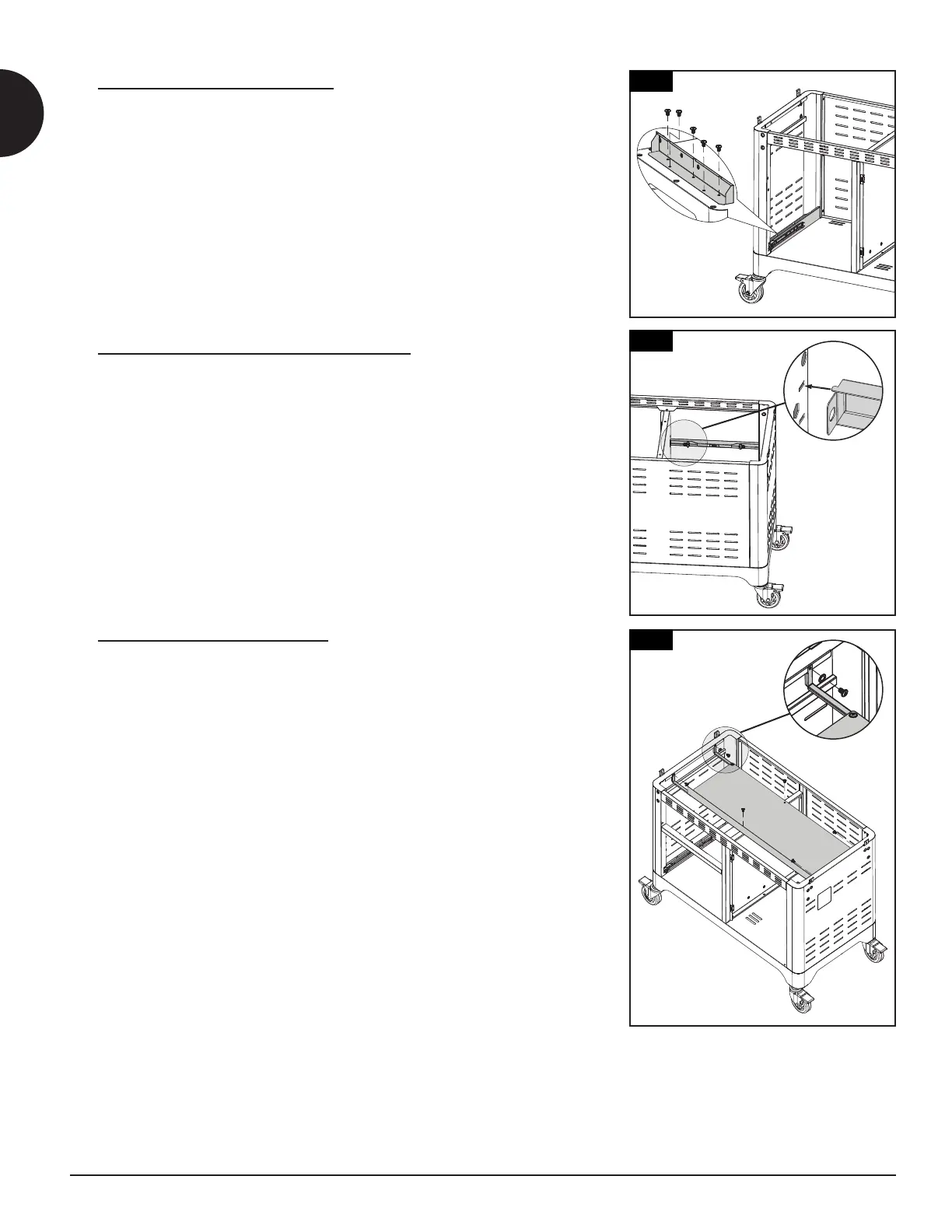

3.    
Parts Required:
1 x Drawer Rails (#18)
5 x Screw (#A)
Installation:
• Align the holes of the Drawer Rails to the holes on the left side of the
Cart Bottom, then secure using five screws, as shown.
4.     
Parts Required:
1 x Drawer Support Bar (#19)
2 x Screw (#A)
Installation:
• Insert the tab of the Drawer Support into the Cart Partition, then secure
the Drawer Support using two screws, one on each side.
5.    
Parts Required:
1 x Heat Shield (#20)
6 x Screw (#E)
Installation:
• Place the Heat Shield into the body of the Cart with the brackets on the
left side, as shown in illustration. Align the mounting holes and secure
using six screws.
IMPORTANT: The upward edge of the Heat Shield should be facing
the front of the unit.
3
4
5
18

19

20



Pit Boss Ultimate Griddle Series Specifications

General

Number of Burners	4
Fuel Type	Propane
Construction Material	Steel
Material	Steel
Griddle Material	Cold-rolled steel
