78
PL
POLSKIE

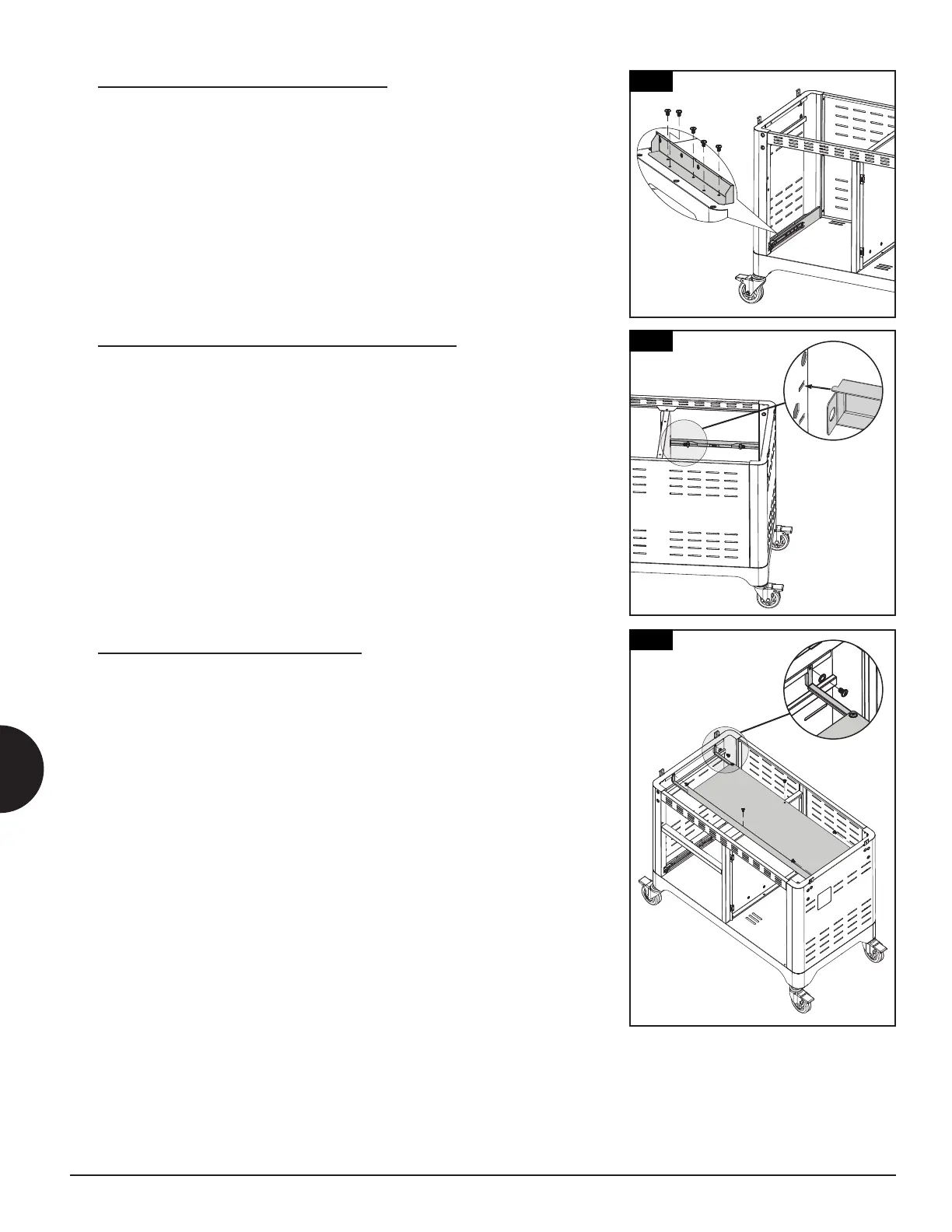

3.   
Wymagane części:
1 x Prowadnica szuflady (#18)
5 x Śruba (#A)
Montaż:
Dopasuj otwory prowadnic szuflady do otworów po lewej stronie spodu
wózka iprzykręć pięcioma śrubami, jak pokazano na ilustracji.
4.    
Wymagane części:
1 x Listwa wsporcza szuflady (#19)
2 x Śruba (#A)
Montaż:
Włóż zaczep wspornika szuflady w otwór w przegrodzie wózka
iprzymocuj wspornik szuflady za pomocą dwóch śrub, po jednej zkażdej
strony.
5.   
Wymagane części:
1 x Osłony cieplnej (#20)
6 x Śruba (#E)
Montaż:
Umieść osłonę cieplną w korpusie wózka ze wspornikami po lewej
stronie, jak pokazano na ilustracji. Dopasuj otwory montażowe izamocuj
sześcioma śrubami.
WAŻNE: zagięta w górę krawędź osłony cieplnej powinna się
znajdować zprzodu urządzenia.
3
4
5
18
19
20
