7
EN
ENGLISH
6.

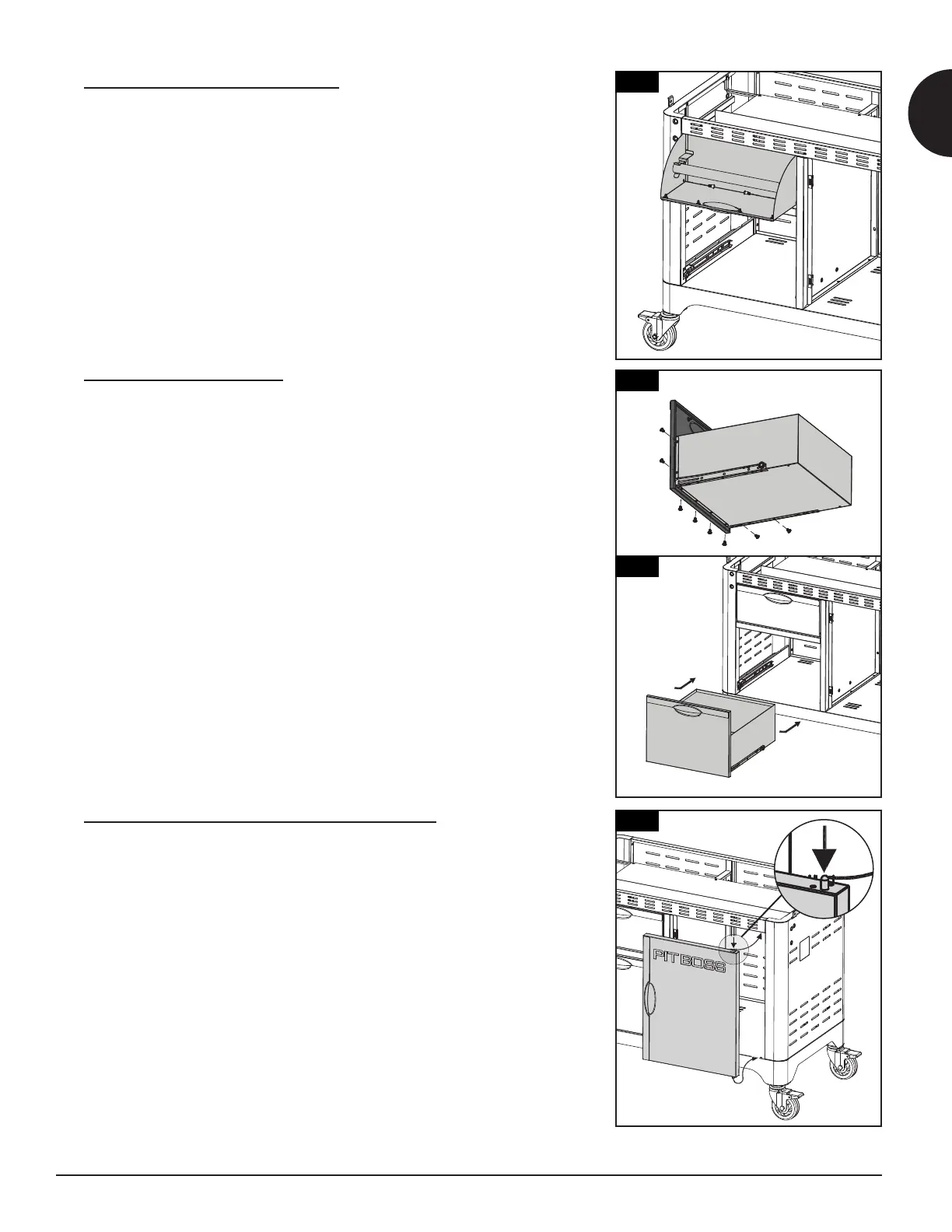

Parts Required:
1 x Swing Drawer (#23)
2 x Screw (#F)
Installation:
• Place the Swing Drawer into the top section of the left-side of the Cart,
with the handle facing the front. Rest the Swing Drawer on the Drawer
Support Bar, then anchor each corner using one screw.
NOTE: Once installed, Swing Drawer should be able to tip open and
close with ease.
7.
Parts Required:
1 x Drawer Front (#24)
1 x Drawer (#25)
8 x Screw (#E)
Installation:
• Assemble the Drawer by mounting the Drawer Front to the Drawer
using eight screws. Note illustration 7A.
• Align the rails of the Drawer to insert into the bottom section of the left-
side of the Cart. Slide the rails into rail mounts, then push the Drawer
into the Cart body. Note illustration 7B.
NOTE: Once installed, the assembed Drawer and Swing Drawer
should be flush with the Cart body and Cart Bottom.
8.
Parts Required:
1 x Cabinet Door (#17)
Installation:
• Align the Cabinet Door with the right section of the Cart. Insert the
bottom pin into the pivot hole on the right side of the Cart Bottom,
then push down on the locking-loaded top pin, and lock into the hole on
the Cart Front Panel.
IMPORTANT: The Cabinet Door should swing freely once installed,
and line up with the door magnet. If unlevel, ensure the top and
bottom pins of the Cabinet Door are inserted correctly.
6
7
7
8
23
25
24
17
