Installing an UltraRes Display on a Wall
Planar UltraRes User Manual 37

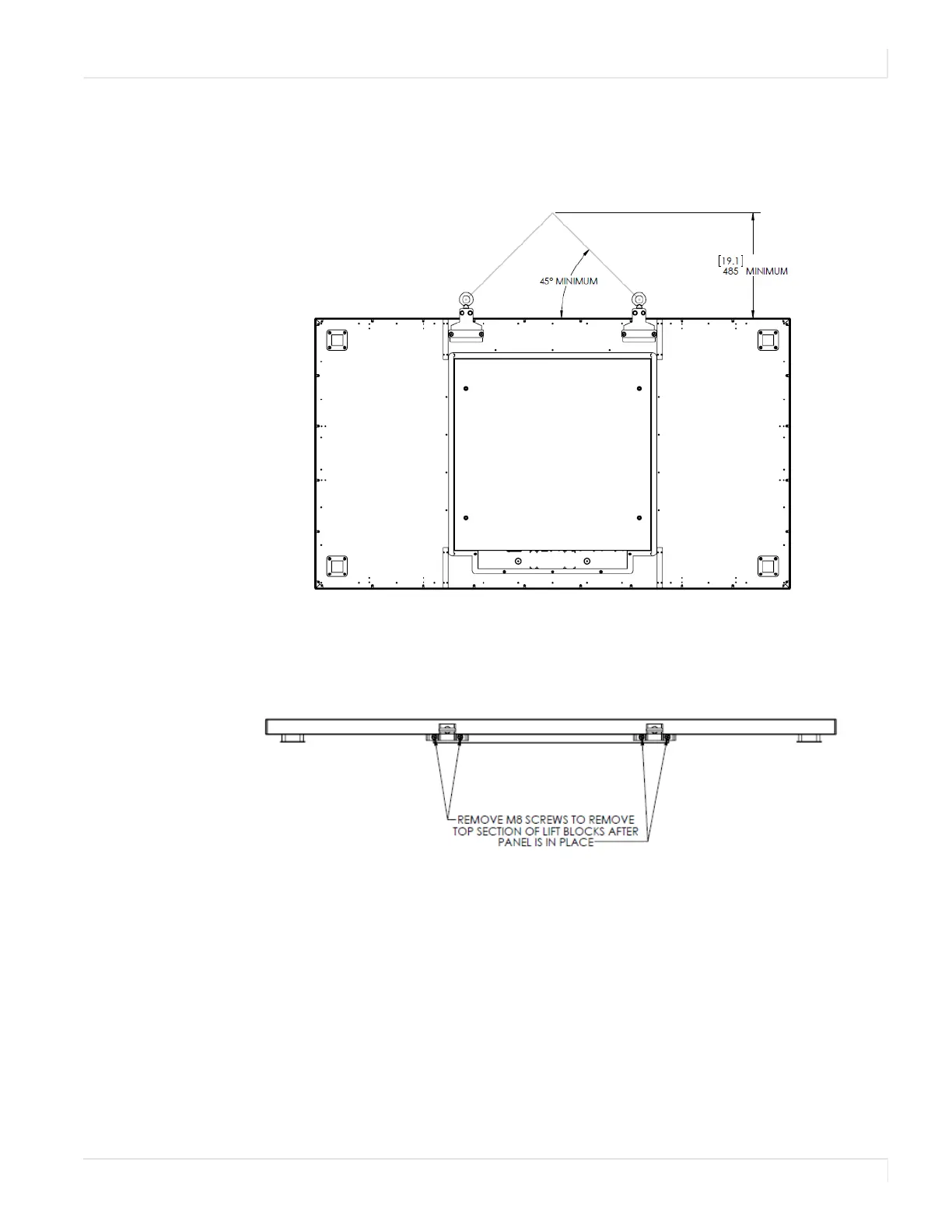

b Single point attachment: The angle between the top of the panel and the
support lines should not be less than 45 degrees. This means that the
attachment point must be at least 485 mm (19.1 in) above the top of the
panel.
3 Lift the panel into place.
4 Detach the upper half of the lift block from the lower half by removing the
two vertical screws. This leaves the bottom half attached to the panel but
hidden.
