Chapter E - DIMAX3 DIGITAL SYSTEM ADJUSTMENT
E-42 Planmeca Proline EC X-ray unit
CEPHALOSTAT ADJUSTMENT
Technical Manual

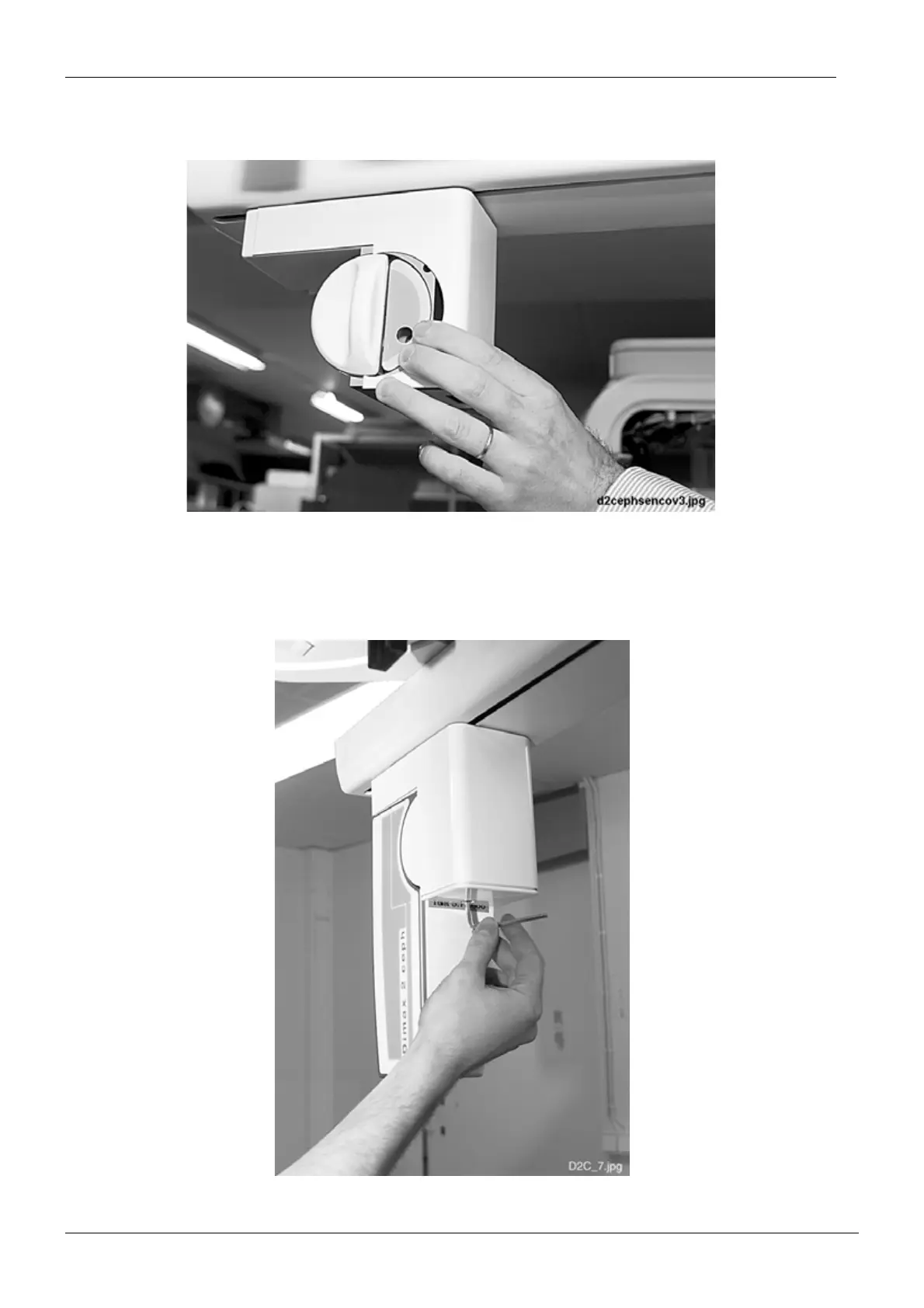

Slide the cover from its position.
Figure 75
Removing and attaching the fixed sensor head
Unscrew the bottom cover plate attachment screw with the 4mm allen key and remove the
cover plate.
Figure 76
