Chapter E - DIMAX3 DIGITAL SYSTEM ADJUSTMENT
Planmeca Proline EC X-ray unit E-41
CEPHALOSTAT ADJUSTMENT
Technical Manual
Cephalostat sensor head with quick connector mechanism -
removing the covers

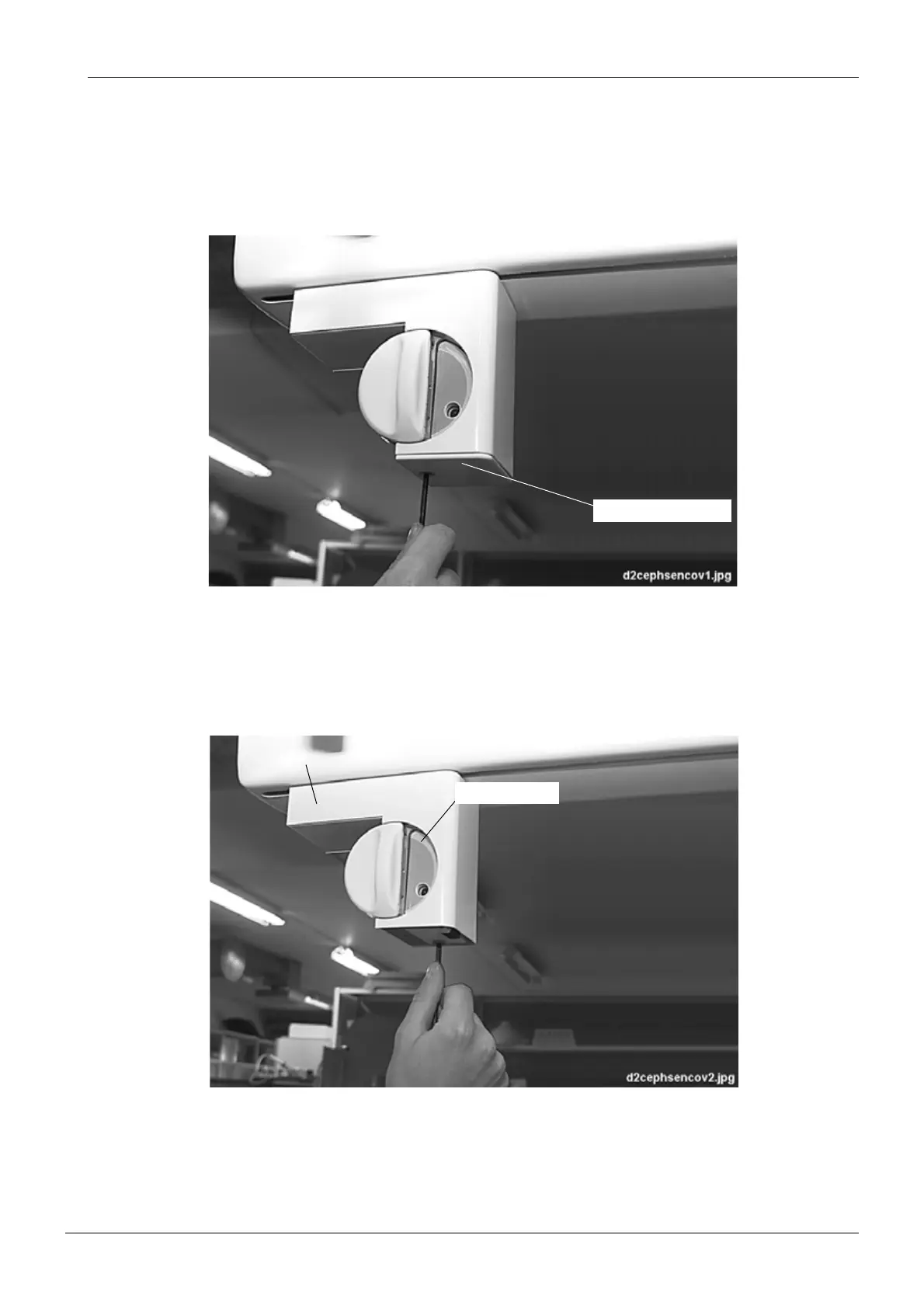

Unscrew the bottom cover plate attachment screw with the 4mm allen key and remove the
cover plate.
Figure 73
Turn the lock disc from above the locking plate and push in the quick connector mechanism
locking knob. Unscrew the attachment screw of the quick connector mechanism cover with
the 4mm allen key.
Figure 74
Bottom cover plate
Cover
Locking plate
