Chapter E - DIMAX3 DIGITAL SYSTEM ADJUSTMENT
Planmeca Proline EC X-ray unit E-53
CEPHALOSTAT ADJUSTMENT
Technical Manual
The calibration must be performed with 3x3 (enhanced resolution) and 4x4 (normal resolu-
tion) binning. With enhanced resolution select 60 kV and 11 mA, and with normal resolution
select 60 kV and 6 mA. Note that these values must be selected to produce a clear exposure.
Start the Dimax3 calibration program by double-clicking the Dimax2Tool.exe program icon
located in the Dimaxis program folder. The Dimax2Tool window appears.

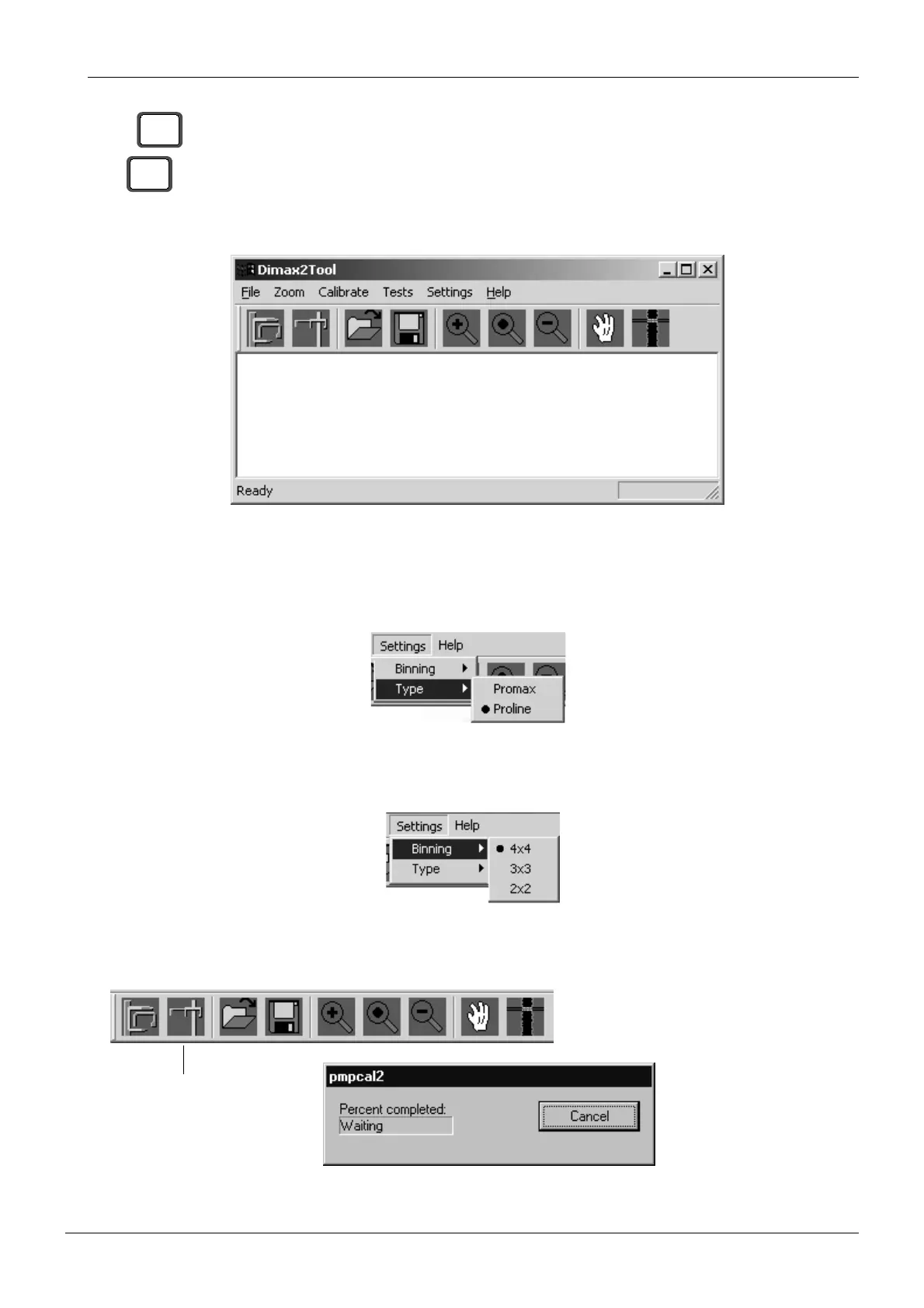

Figure 93
Calibrating the sensor head
Select Proline from the Settings / Type pulldown menu.
Figure 94
The calibration must be performed with both 3x3 (enhanced resolution) and 4x4 (normal res-
olution) binning. Select the binning from the Settings / Binning pulldown menu.
Figure 95
Click the Dimax3 cephalometric exposure button. The pmpcal2 window with text Waiting
appears.
Figure 96
kV
60
mA
2
Dimax3 cephalometric
exposure
