Chapter D - ADJUSTMENT & CALIBRATION
D-2 Planmeca Proline EC X-ray unit
REQUIRED TOOLS
Technical Manual

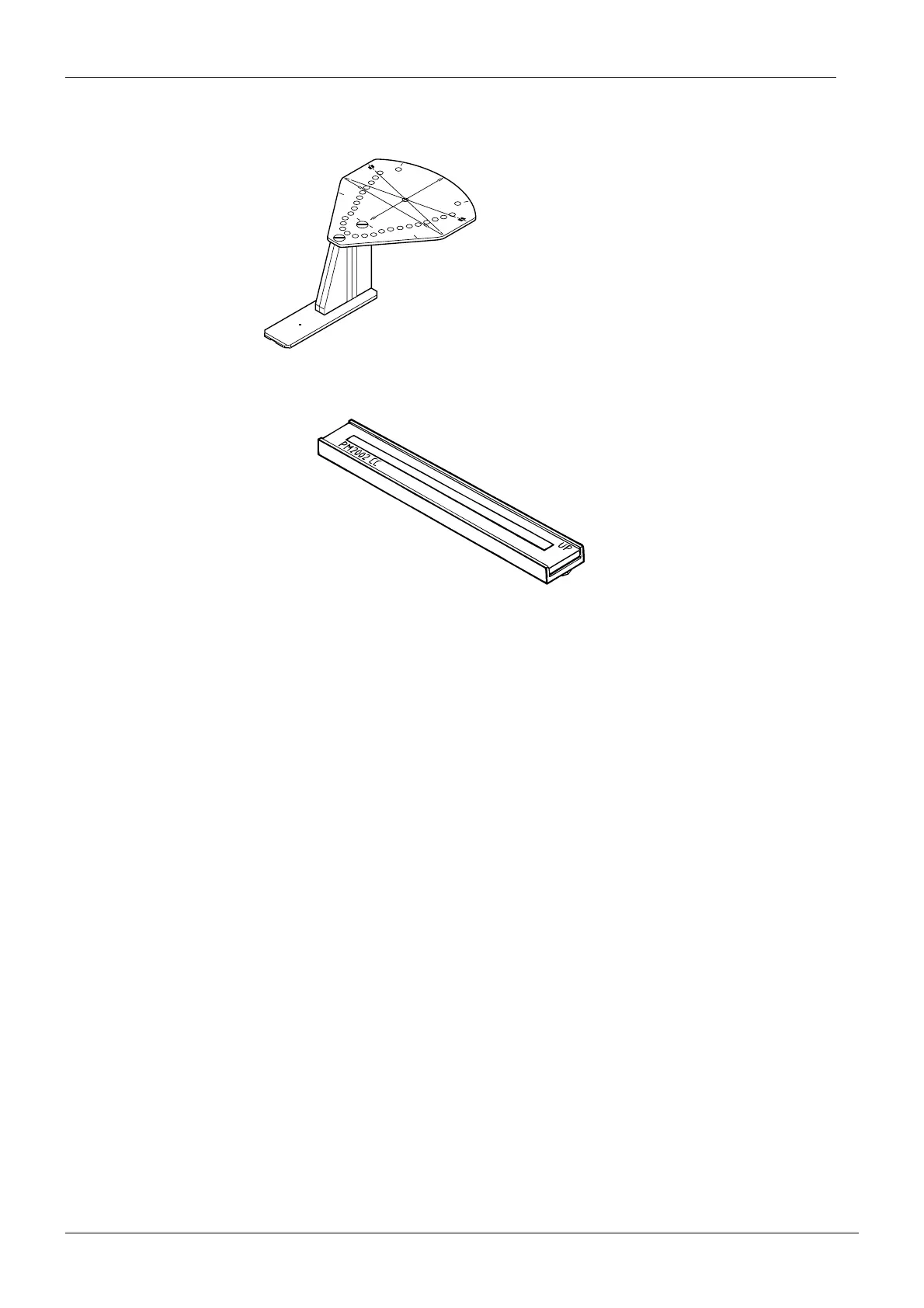

• Ball phantom (part number 50971). For checking the position of the patient positioning
mechanism and the positioning lights.
• Beam alignment tool (part number 50972). For checking the position of the panoramic X-
ray beam.
START
END
PLANMECA No.50971
X-LINE
Y-LINE
