Chapter D - ADJUSTMENT & CALIBRATION
Planmeca Proline EC X-ray unit D-3
REQUIRED TOOLS
Technical Manual
Cephalometric mode calibration
NOTE These tools are needed only when calibrating the Planmeca Proline EC Pan/Ceph X-ray
unit.

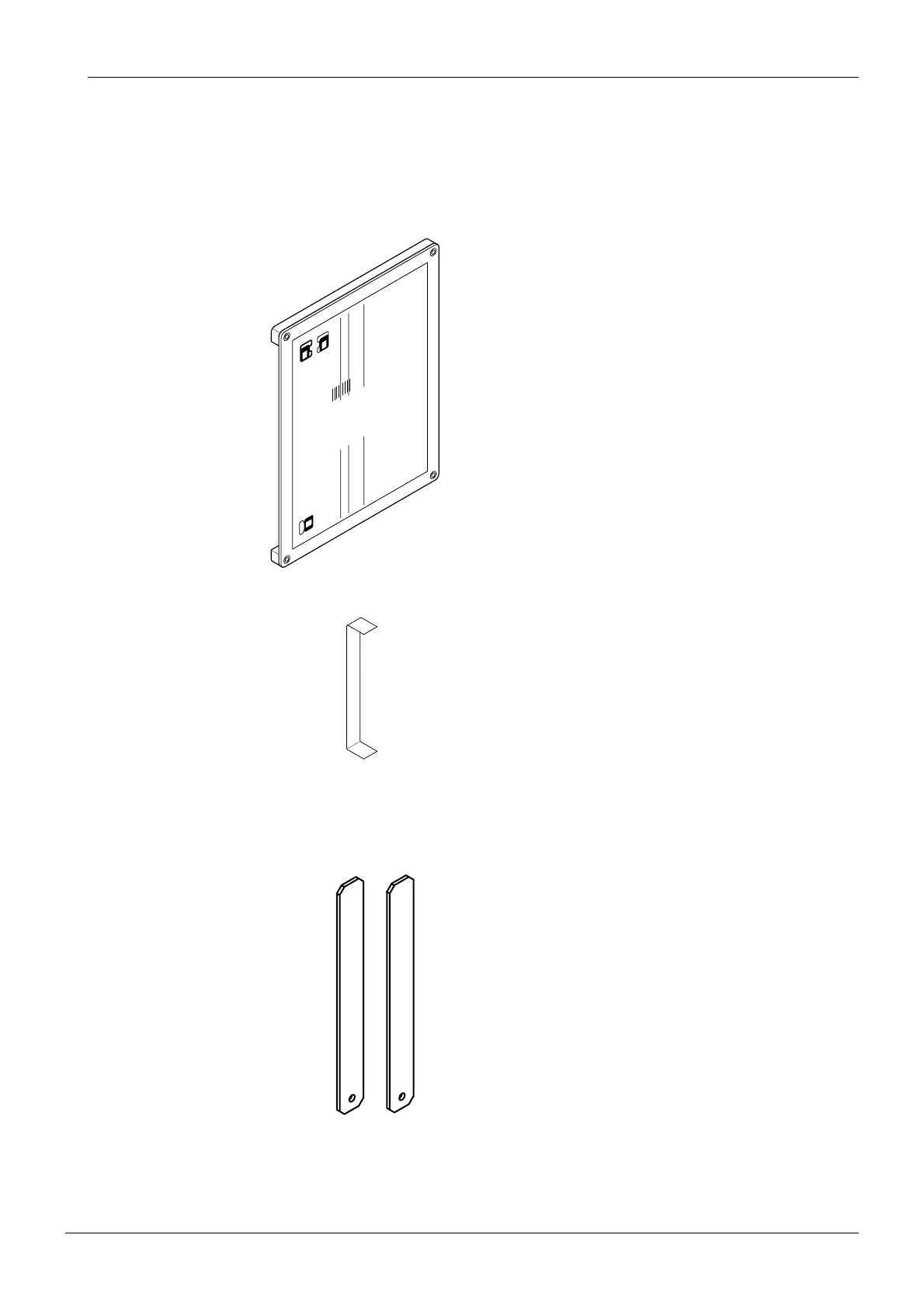

• Cephalometric beam alignment tool (18x24 cm, part number 652232; 8x10 in, part number
652233).
Used to check the position of the cephalometric X-ray beam.
• Soft tissue filter positioning tool (part number 653121).
• Ceph head support alignment tools (part number 653126). The part number includes two
pieces.
PLANMECA PM 2002 Proline Cephalostat 18x24 No. 652232
Soft tissue filter 0mm
Positioning light 0mm
Positioning light 25mm
4
5
6
