Chapter E - DIMAX3 DIGITAL SYSTEM ADJUSTMENT
Planmeca Proline EC X-ray unit E-3

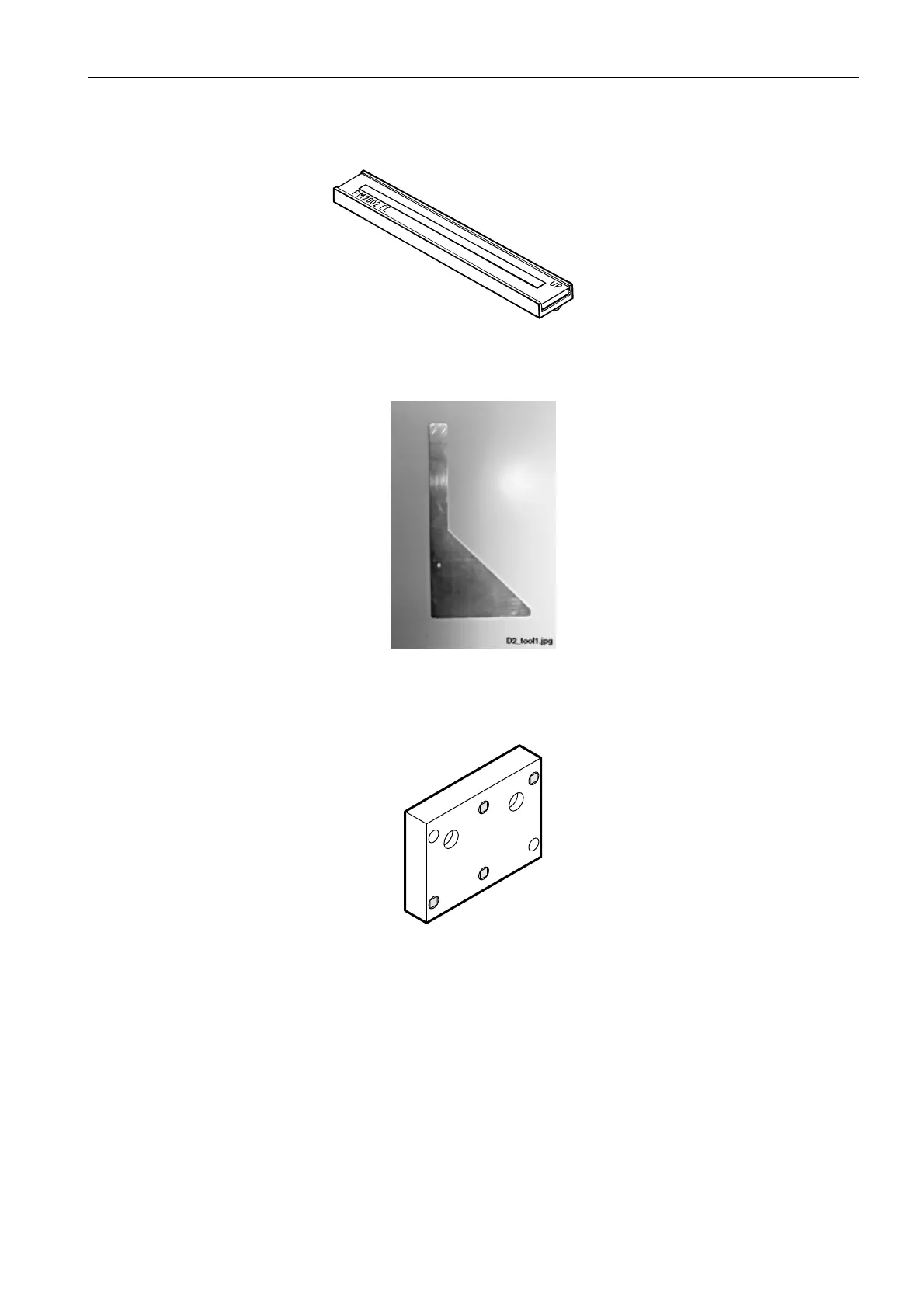

REQUIRED TOOLS
Technical Manual
• Beam alignment tool (part number 50972). For checking the position of the panoramic X-
ray beam.
• Cephalostat calibration tool (part number 10002935). For calibrating the cephalostat.
• Panoramic mode calibration block (part number 665413). For calibrating the panoramic
sensor head.
Beam alignment too
