Page: 12 Manual for 362MC Edition: 6/2007 Subject to modifications
Many of the range limits (min/max value) stated in the following tables are dependent
on the scaling selected for the physical variables via the parameters Scale-0 and
Scale-F. See also explanatory note on scaling (5.6.2).
""
""
"
5.2 Commissioning menu
After entering the password (PW-lock=Off), the menu extensions can be selected for commissioning,
both in Automatic and Manual / Emergency manual mode, after entering the setpoint menu.
The following tables for the commissioning menus show the parameter (name), the value range (min/
max) and an appurtenant explanation (meaning/comment), together with the memory location in the
profile (


= profile controller 1,


= profile controller 2) and a symbol


 to denote ! Adjustment in
Manual mode only !
Comment at Ts min: Too long Ts min will result a permanent control deviation.
Too short Ts min may overburden the actuator.
Parameter Value (min Meaning Comment
max) see Details
1Setp A 0.0°C Setpoint input if Setp. type A = fixed value
200.0°C see Setpoint menu 5.3 (Parameter each controller)
Kr -999.0 P gain see also Commissioning (D1)
999.0 see Controller parameters 5.5 (Parameter each contr. + parameter set)
Tn 10s Reset time for I component see also Commissioning (D1)
10000s see Controller parameters 5.5 (Parameter each contr. + parameter set)
Ts min 0.1s min. switching duration for switching output Comments at Ts min see down the table
100.0s see Controller parameters 5.5 (Parameter each contr. + parameter set)
Prof-No 1 Select controller profile Load practicable profile for operation
50 see Controller profiles 5.4 (and save with Save as function)
Line 2 1Feed+Y 2
nd
line of the LCD display Example with position feedback
see Display menu 5.8 (without = 1Out+Y)

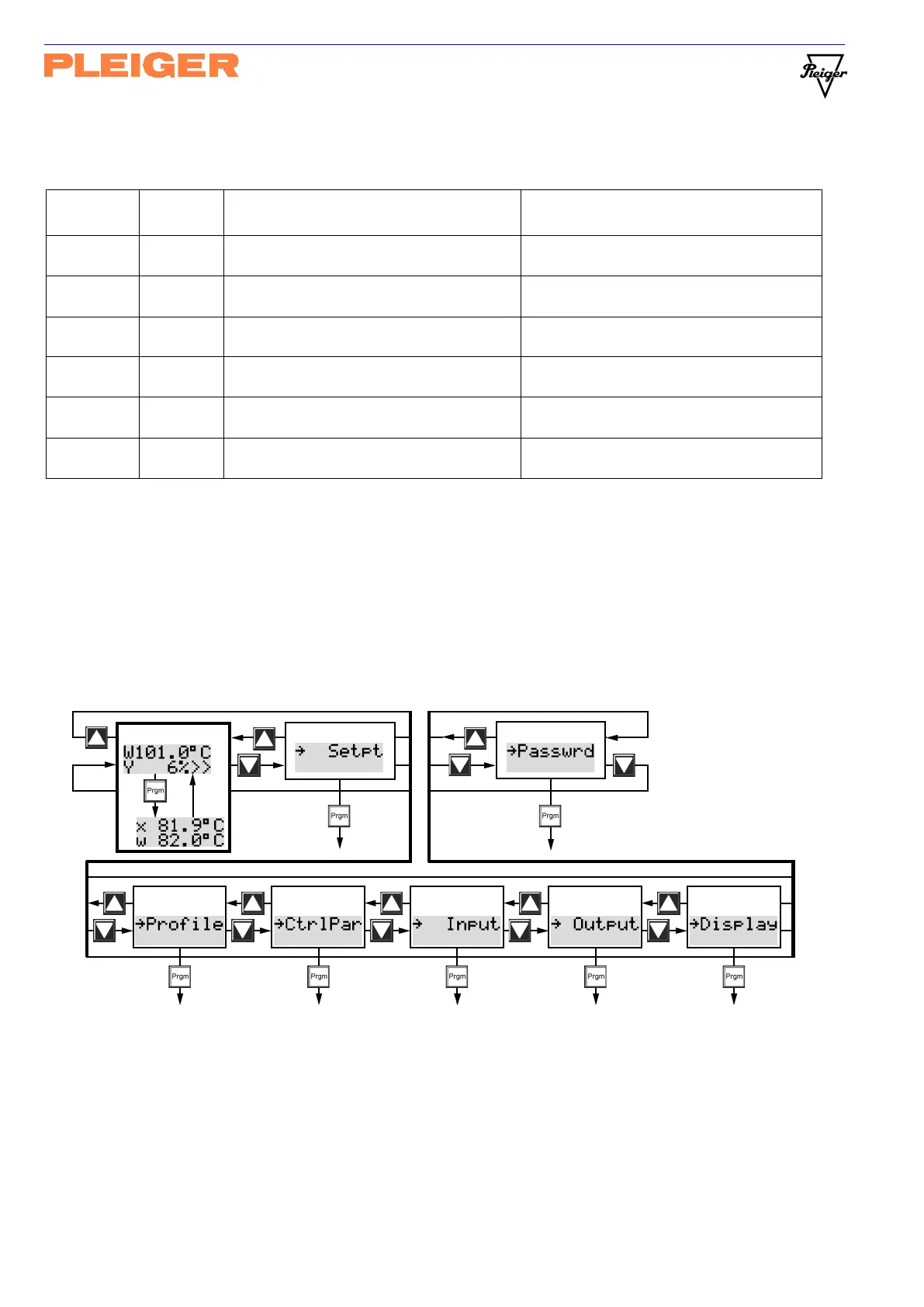

Inputs and parameters of the menu QuickSet
Operational display
Example: Menu selection in Automatic mode
Setpoint menu
Password menu
Menu extensions
for commissioning
Controller
profile menu
Controller
parameter menu
Input
menu
Display
menu
Output
menu
