2 Display and operating elements
The 362MC controller incorporates a 2½-digit LED actual-value display for the 1
st
controller which is
clearly legible at a distance. For special applications, the display is also available as a 3½-digit variant
(with decimal digit or for special measuring ranges). The 362MC additionally features an two lines LCD
process data and parameter display. During normal operation of the controller, this display is employed to
display various process variables. The display also provides easily comprehensible operator prompting for
all entry operations.
Eight buttons are integrated in the foil of the front panel to control the display, to enter data, to switch the
operating mode and to activate emergency manual mode. The buttons are arranged in three groups.
A practical, replaceable labelling field is provided under the foil for identification of the measuring point.
After removing the front frame and
lifting the lower part of the foil, the
fuse for switching outputs and the
connector for the service interface
are also accessible after installation
of the controller. The labelling field is
simple to replace.

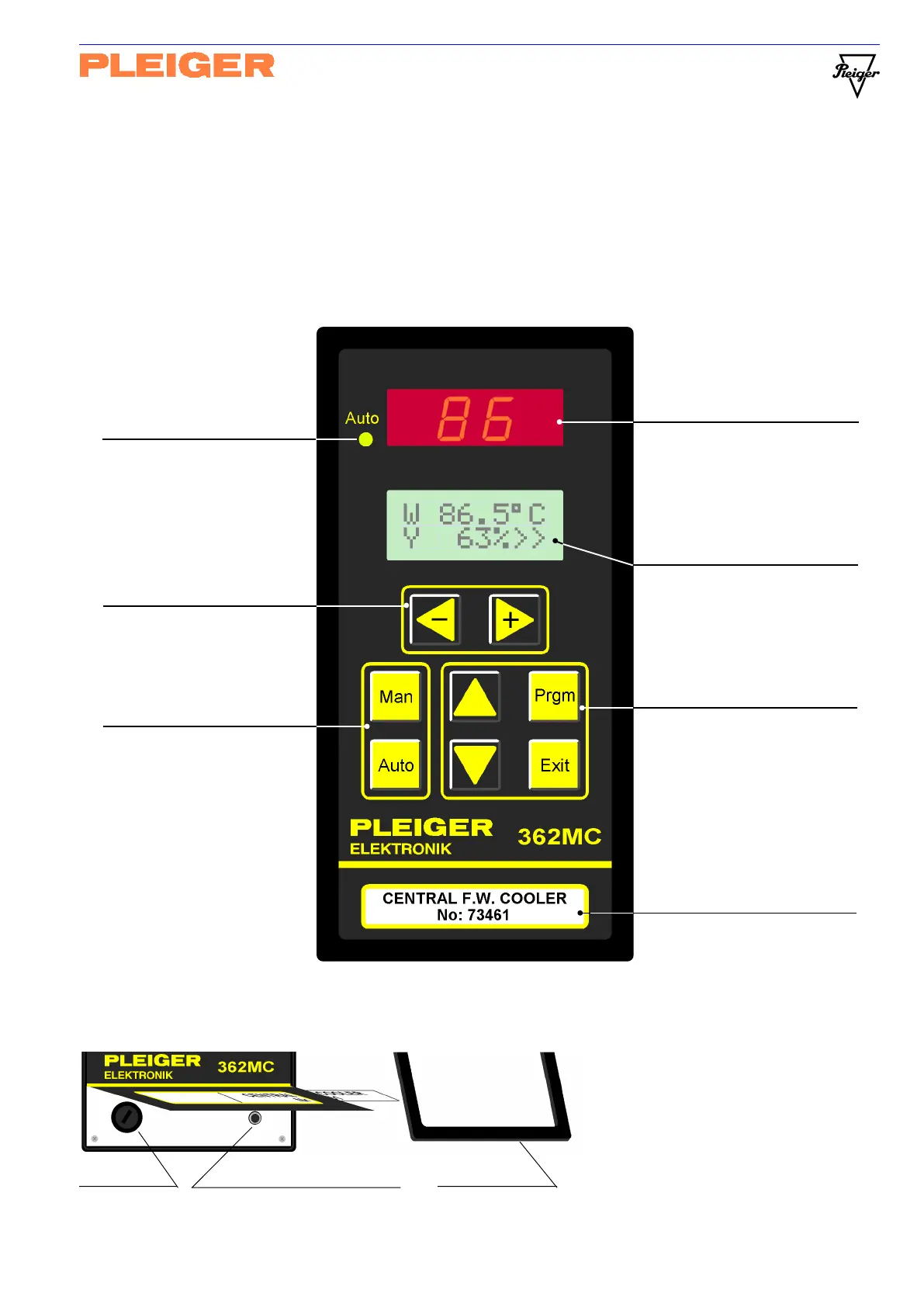

Fuse F2 Connector for service interface Front frame
LED actual-value display
LED Auto Actual value X of 1
st
controller
ON = Automatic mode without decimal place
OFF= Manual / Emergency (1
st
analogue input direct;
manual mode PT100 input in °C,
4-20mA input in %)
LCD display lines 1 + 2
(Operating display and
Switching output buttons operator prompting)
+
= actuator OPEN
- = actuator CLOSED
(only by Emergency
manual mode)
Selection + entry buttons
Man and Auto buttons
= Select+ increase value
Man = Manual / Emergency
= Select+decrease value
manual mode Prgm=Select+save
(only together with Exit) Exit =Cancel+abort
Auto = Automatic mode (Exit+Man=Manual /
Emergency manual mode)
Labelling field
for identification of
measuring points
