Pleiger Elektronik
GmbH & Co. KG

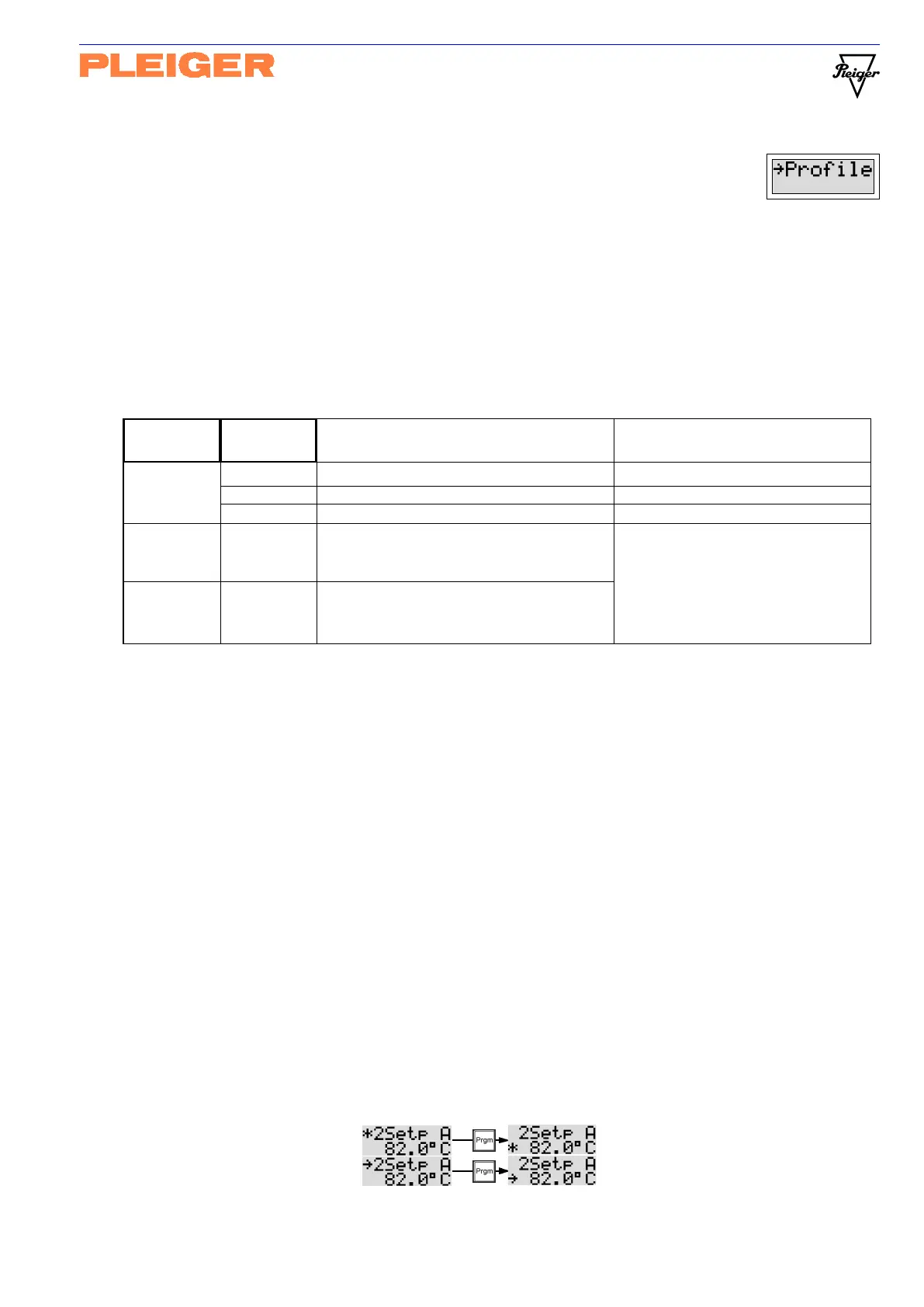

Edition: 6/2007 Subject to modifications Manual for 362MC Page: 15
Parameter Value (min Meaning Comment
max)
DsplCtrDsplCtr
DsplCtrDsplCtr
DsplCtr
only 1only 1
only 1only 1
only 1 Display controller = only controller 1 activ Entry point marked
1 of 2 1 of 2
1 of 2 1 of 2
1 of 2 Display controller = displ. controller 1 of 2 Entry point marked
2 of 2 2 of 2
2 of 2 2 of 2
2 of 2 Display controller = displ. controller 2 of 2 Entry point marked
The parameters which are stored
Prof-NoProf-No
Prof-NoProf-No
Prof-No
1 1
1 1
1 Select controller profile for operation in a controller profile and are thus
50 50
50 50
50 Value = profile no. 1 to no. 50 available for subsequent selection
are indicated as follows
Save asSave as
Save asSave as
Save as
1 1
1 1
1 Save current controller profile as
for controller 1 and
50 50
50 50
50 value = profile no. 1 to no. 50
for controller 2.
5.4 Controller profile menu
On the 362MC, all the necessary settings for a controller are grouped together in
so-called profiles. Each profile thus contains all the parameters for a specific application.
The parameter memory of the 362MC contains 50 memory locations for different profiles, enabling
previously tested commissioning values to be stored as profiles for a large number of applications. The
commissioning procedure is then started by selecting the appropriate profile for the control task
concerned.
To this end, one of the controllers are first of all selected in the Profile menu via the parameter “DsplCtr”,
this controller´s profile is selected via “Prof-No” and its parameters are subsequently displayed and
altered in the following menus. Selection and entry points are marked accordingly on the display of the
362MC. The tables belonging to this description state which parameters are stored in which control menu.
5.4.1 Entering parameters for two controllers
It is to be noted here that
- only the parameters of one profile and thus of one controller are displayed;
- the two controllers must always be assigned different profiles via “Prof-No”.
During commissioning, the display should thus be set specifically to the controller which is to be put into
operation; e.g. from DsplCtr = 1 of 2 for the 1
st
controller to DsplCtr = 2 of 2 for the 2
nd
controller and
vice-versa. It is not necessary to enter the profile no. assigned to the controller under “Prof-No” again
for this purpose.
5.4.2 Entering parameters for one controller only
When the 362MC is used for one controller only, “DsplCtr” should be switched to “1 only”.
This precludes any switching. The parameters for the 2
nd
controller will no longer be displayed.
""
""
"
If you save the selected profile to an available “Prof-No” via the “Save as” function
before commissioning, the parameters which have been altered in the course of
commissioning will be stored for you in this new profile. If possible, do not alter the
profile memory locations containing the factory presets, so as to ensure that you will
be able to access these profiles if necessary.
""
""
"
With regard to the entry of parameters for the 2
nd
controller, the selection and entry
point is displayed as * to indicate controller 2 instead
of -> to indicate controller 1.
