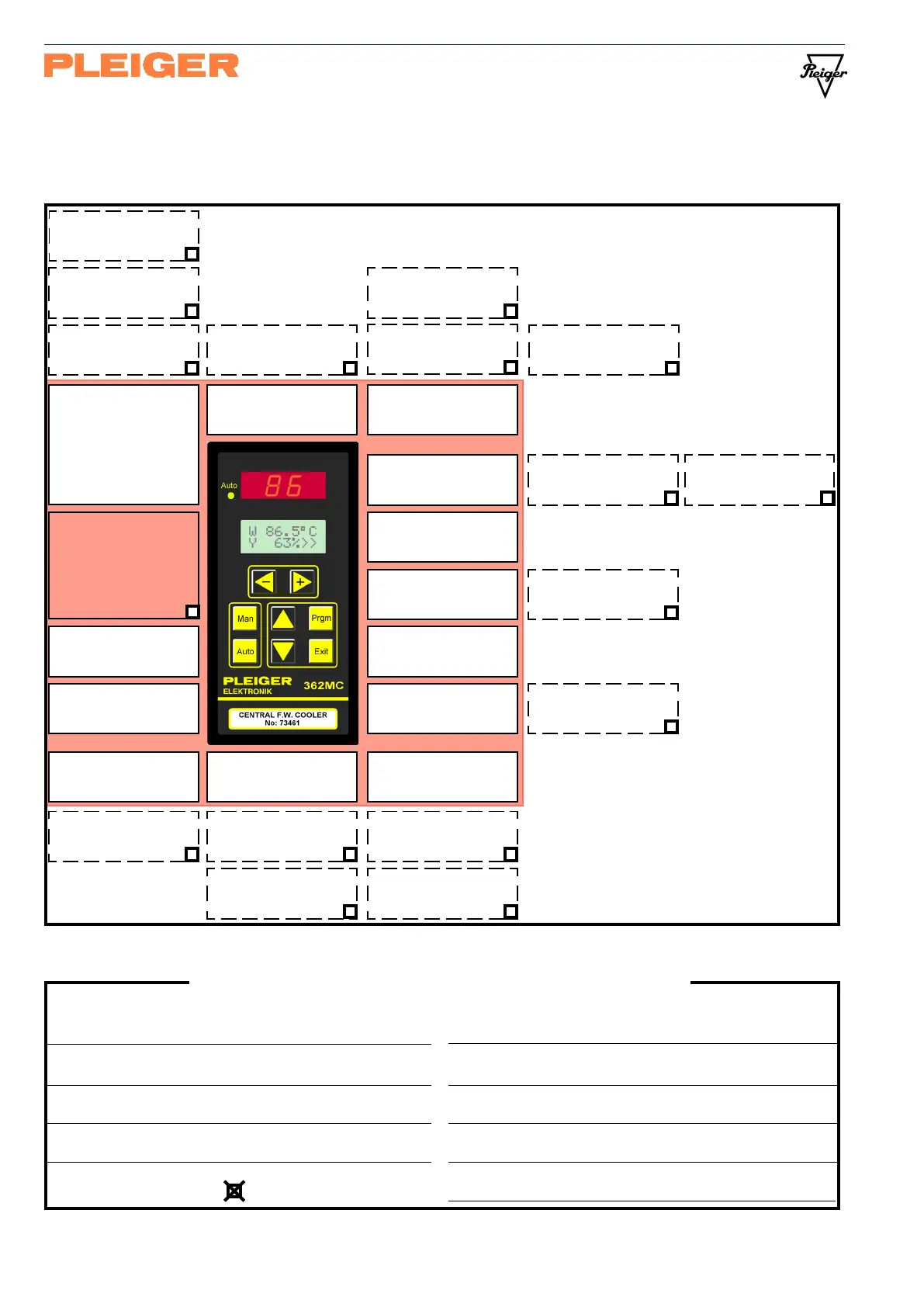

Controller 362MC Delivery configurations
Name Position
Company Telephone No.
Fax No.
No. of pieces Date for delivery Comment
If you need special versions or extensions in addition to the
standard, please mark the -squares obove.
Your FAX-Request for the offer to +49 (0) 23 24 / 3 98- 3 89
Controller 362MC
special configurations
and extensions
(additional configurations
on request)
Service interface
RS 232
Alarm relais
1 x change contact
floating
1
st
relay set with
U
E
= 230/115 V-AC
connected contacts
Special version
1
st
relay set with
floating contacts
without
2
nd
relay set
Hardware extension
2
nd
relay set with U
E
=
230/115V-AC-contacts
Hardware extension
2
nd
relay set with U
E
=
floating contacts
without
Analogue outputs
Hardware extension
Analogue outputs
2 x 0(4)-20mA
Hardware extension
Analogue outputs
2 x 0-10V
6 x Binary inputs
as logical inputs for
floating contacts
4
th
Analogue input
resistance input
Measuring range 0-200R
Special version
3
rd
Analogue input 0-10V
Measuring range 0-100%
3
rd
Analogue input
0(4)-20mA
Measuring range 0-100%
2
nd
Analogue input
PT100
Measuring range 0-200°C
Special version
1
st
Analogue input 4-20mA
Measuring range 0-100%
Special version
1
st
Analogue input PT100
Measuring range 0-500°C
1
st
Analogue input
PT100
Measuring range 0-200°C
without
communication interface
Hardware extension
communication interface
RS 485
Hardware extension
communication interface
RS 422
Special version
Power supply
U
E
= 115 V-AC
Power supply
U
E
= 230 V-AC
Functional extension
Disturbance compensation
Functional extension
Setpoint programme
Controller 362MC
Standard
configuration
Special version
6 x Binary inputs for
24 V-DC signals
Standard functions
for 1 or 2 controllers
> 2-Point controller
> 3-Point controller
> 3-Point step controller
> Cascade step controller
> Continuous controller
Special adjustment
LED-Display with 3½ digits
(Solution 0,1°C or 0,1%)
Functional extension
Differential actual value
