Plockmatic BK5030 - Page 19

1-12
November 2012
BOOKLET MAKER INSTALLATION
Rail Unit
[B]
CAUTION
Before docking, make sure the Jogger Fence [B] is in the upper position.
Ifnot,withprinterpoweredon-openandclosenisherdoor.

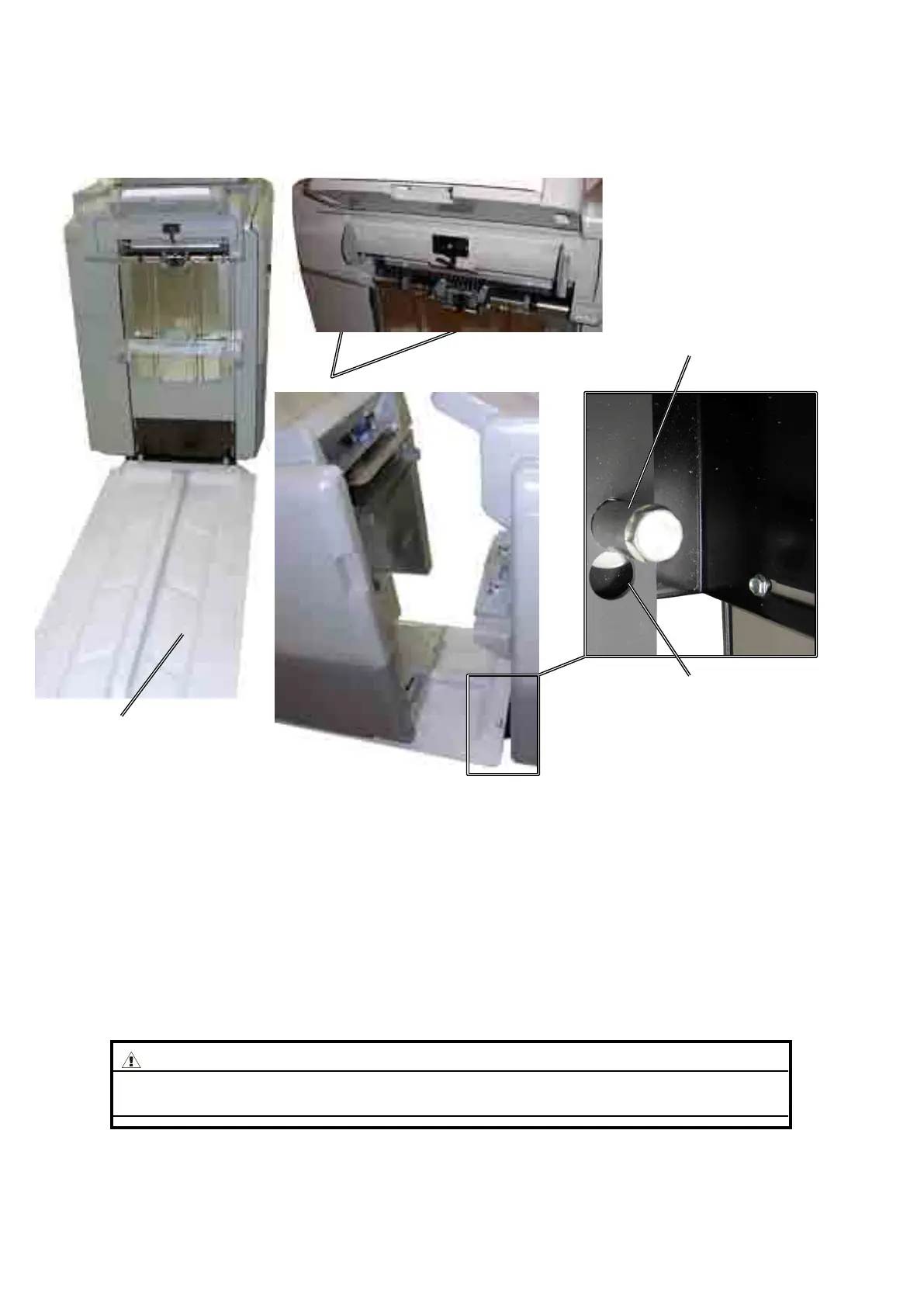

1. If installing a Rail Unit [A], install it according to picture.
Select correct rail hole[C].
NOTE: If the Rail unit is installed at a later time the height adjustment of the
Booklet maker has to be redone.
2. Hook up the Exit arm catcher to it’s upper position.
3. PushtheBookletmakerontotherailbutleaveitundockedwiththenisherat
this time.
[A]
[C]
Select this hole if CT5010 /CT5030
is NOT installed
Select this hole if CT5010 /CT5030
is installed
