PH-2 SERVICE MANUAL
4. TECHNICAL SPECIFICATIONS
4.2 MECHANICAL
123 Pumps
Maximum Working Pressure 2,000PSI(14MPa, 138bar)
Maximum Production Pressure 28lb/min(14kg/min)
Minimum Production 2lb/min(1kg/min)
Gallons per Stroke 0.01859gal/stroke(0.07037L)
Strokes per 55gal(200L) Drum 2,958strokes
Maximum Hose Length
2KVA Transformer 210ft(64m)
3KVA Transformer 310ft(95m)
5KVA Transformer 410ft(125m)
Approximate Weight
Hydraulic Tank Empty 415lbs(166kg)
Hydraulic Tank Full (12gal) 450lbs(197kg)
Overall Dimensions(W x D x H)
36in x 23in x 54in (92cm x 60cm x 138cm)

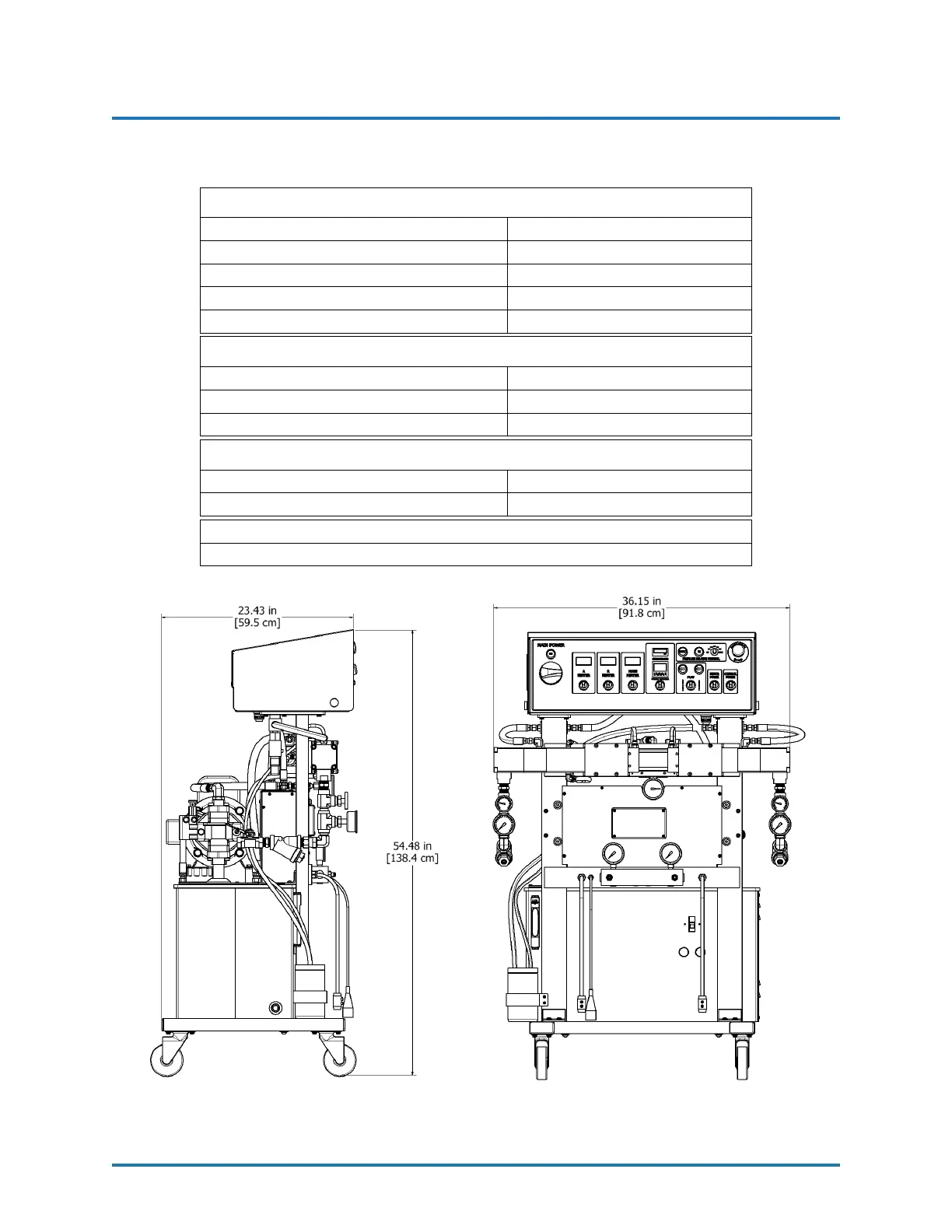

Figure 3: Proportioner Dimensions
REVISION 1.2 11
