15. PARTS IDENTIFICATION
15.5 HYDRAULIC SEAL ASSEMBLY

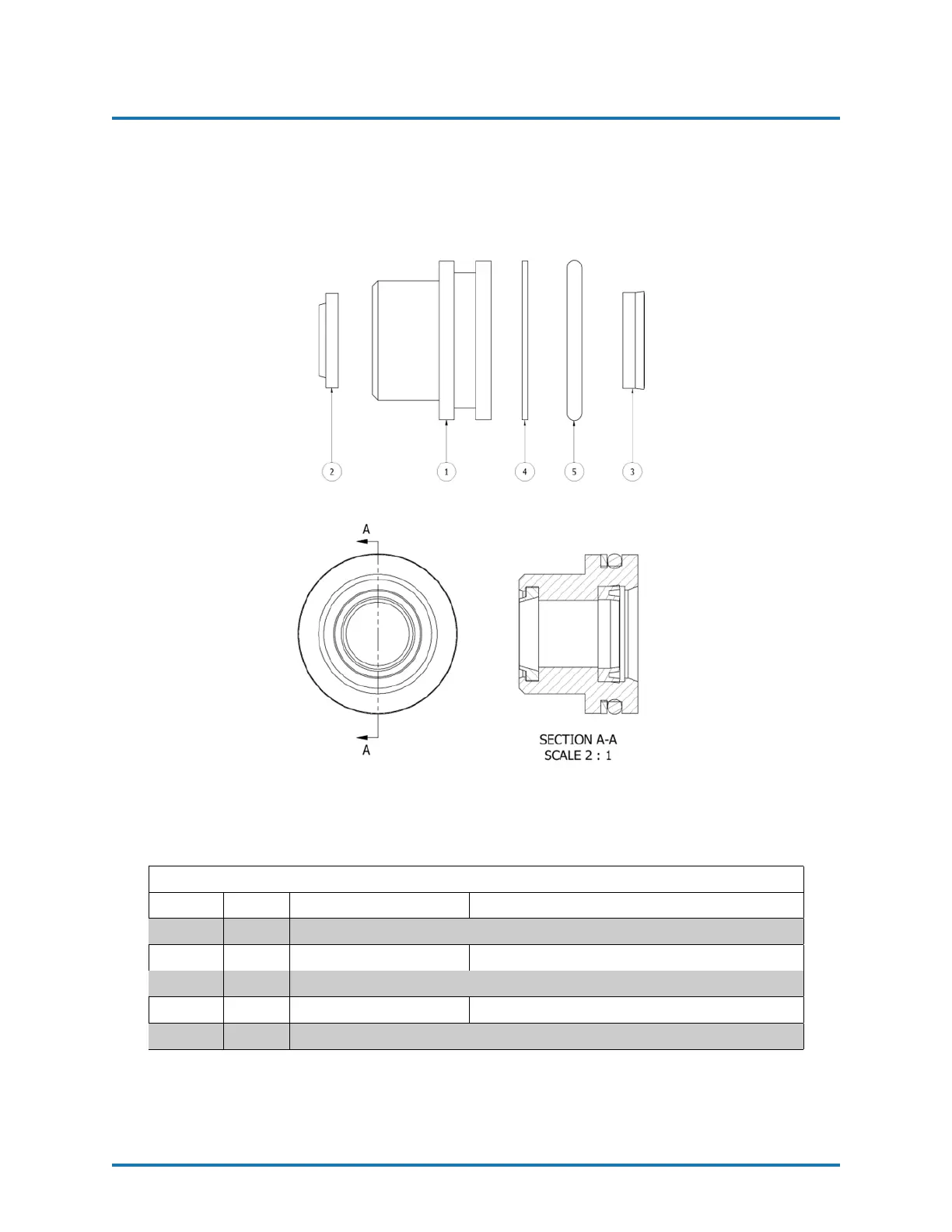

Figure 15: Hydraulic Seal Assembly
HYDRAULIC SEAL ASSEMBLY
ITEM QTY PART NUMBER DESCRIPTION
1 1 HI-05025-13 BUSHING,ROD
2 1 HI-05025-4 WIPER, ROD
3 1 HI-05025-5 SHAFT SEAL
4 1 HI-05025-6 BACK UP RING, BUSHING
5 1 OR-00039A O-RING #218 HYD CYLINDER ROD
Hydraulic Cylinder Rebuild Kit is on page 62
