PMC PH-2 - Exit Manifold Accessory

POLYURETHANE
MACHINERY
CORPORATION
PH-2 SERVICE MANUAL
15. PARTS IDENTIFICATION
15.19 EXIT MANIFOLD ACCESSORY
(a) In-Plant Option
(b) In-Trailer Option

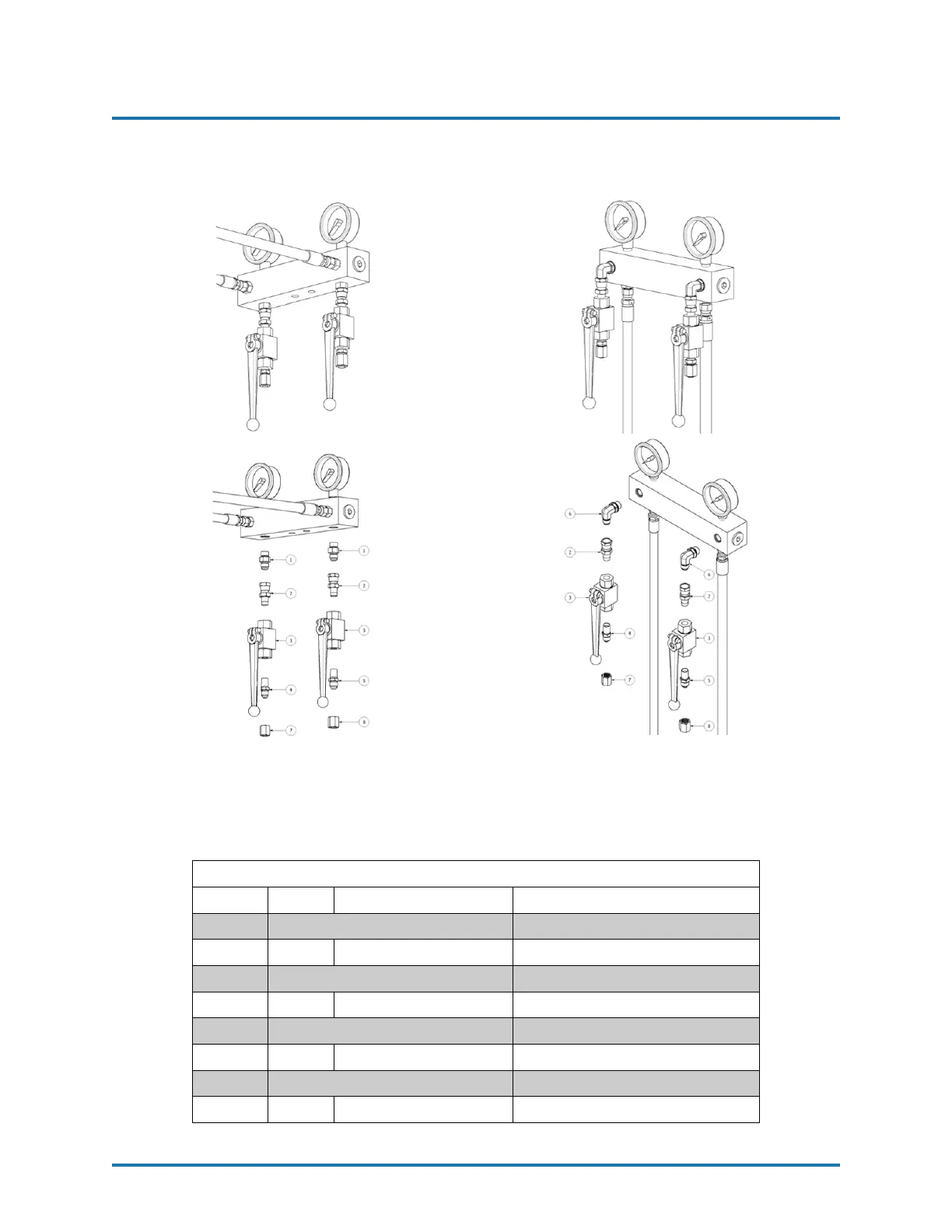

Figure 39: Exit Manifold Accessory
EXIT MANIFOLD ACCESSORY
ITEM QTY PART NUMBER DESCRIPTION
1 2 HI-05011 6 ORB X 6 JIC
2 2 EL-00051A-5 1/4 NPT X 6 SWIVEL
3 2 GP-00100-2 BALL VALVE 1/4 5000 PSI
4 1 EL-00051A-4 1/4 NPT X 5 JIC
5 1 EL-00051A-6 1/4 NPT X 6 JIC
6 2 HI-05007 6 ORB X 6 JIC 90 DEG
7 1 200226 5 JIC CAP
8 1 200227 6 JIC CAP
REVISION 1.2 85
