PH-2 SERVICE MANUAL
15. PARTS IDENTIFICATION
15.13 Y-STRAINER ASSEMBLY ”R” SIDE

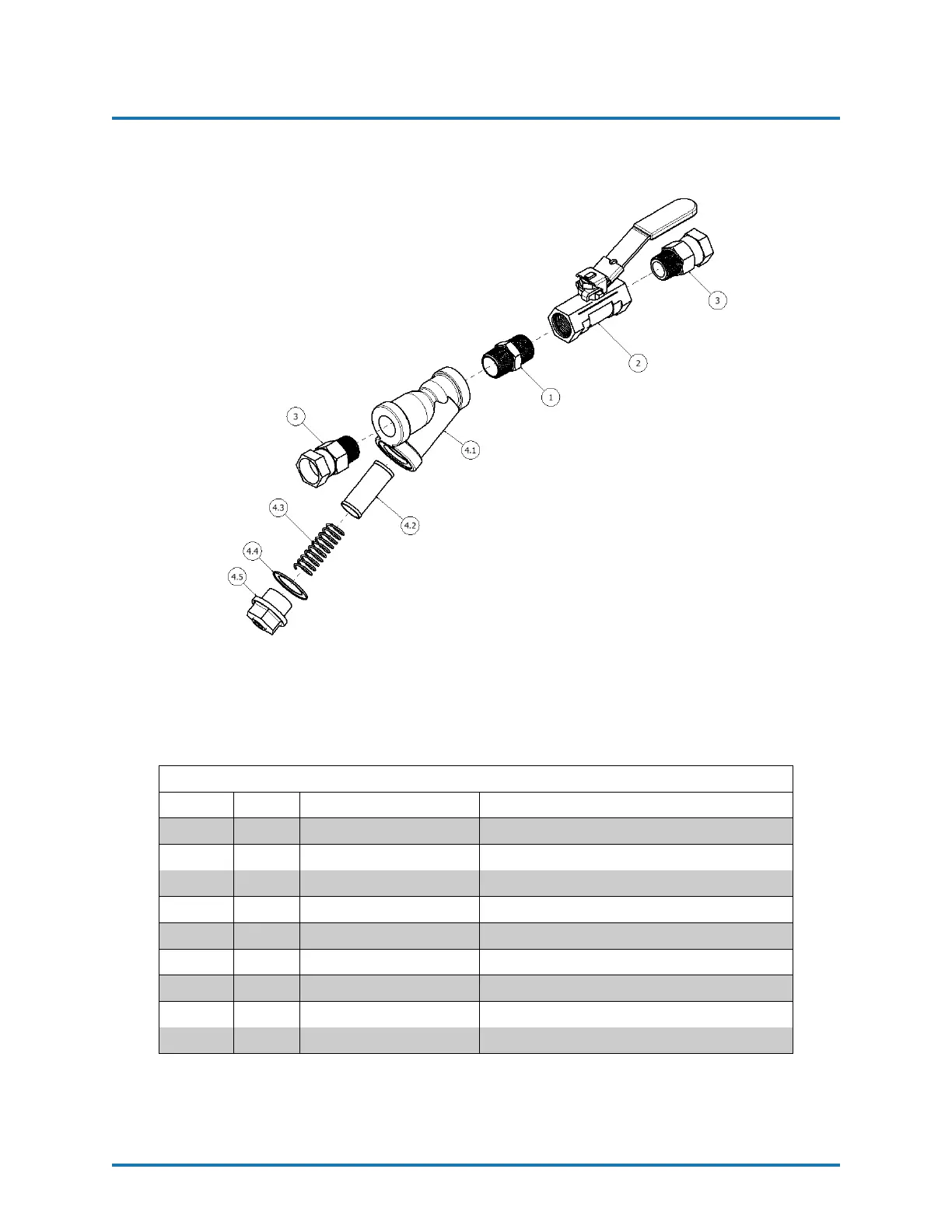

Figure 25: Y-Strainer Assembly ”R” Side
Y-Strainer Assembly ”R” Side (YS-2)
ITEM QTY PART NUMBER DESCRIPTION
1 1 HI-05017 3/4 MNPT UNION
2 1 RA-00078A 3/4 BALL VALVE SS
3 1 HI-05016 3/4 NPTM X 3/4 NPTF SW
4 1 RA-00074-00A Y-STRAINER ASSY
4.1 1 RA-00074-00 Y-STRAINER BODY
4.2 1 RA-00074-03-XXA FILTER SCREEN 30/60/80
4.3 1 SP-00009A FILTER SCREEN SPRING
4.4 1 RA-00074-02A Y-STRAINER GASKET
4.5 1 RA-00074-01A Y-STRAINER DRAIN PLUG ASSY
