15. PARTS IDENTIFICATION
15.11 INLET MONITORING ASSEMBLY

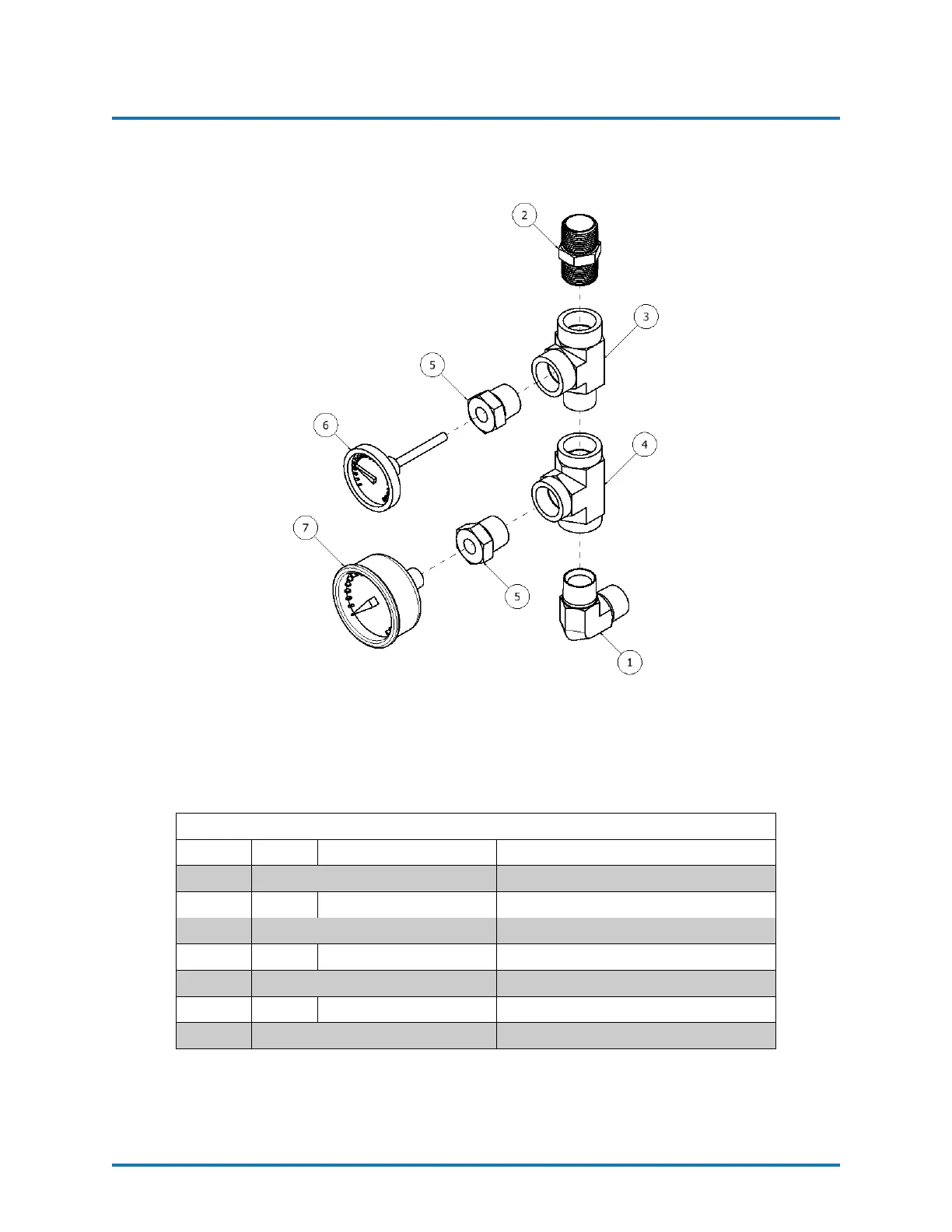

Figure 23: Inlet Monitoring Assembly
INLET MONITORING ASSEMBLY (KT-05005)
ITEM QTY PART NUMBER DESCRIPTION
1 1 HI-05015 3/4 NPT EXTERNAL ELBOW
2 1 HI-05017 3/4 MNPT UNION
3 1 HI-05051 PIPE FIT MALE RUN TEE M
4 1 HI-05052 PIPE FIT FEMALE PIPE TEE
5 2 HI-05053 PIPE FIT PIPE THREAD
6 1 HI-05055 TEMP GAUGE 0-200 F
7 1 HI-05103 PRESS GAUGE 0-600 PSI
