POLYURETHANE
MACHINERY
CORPORATION
PH-2 SERVICE MANUAL
15. PARTS IDENTIFICATION

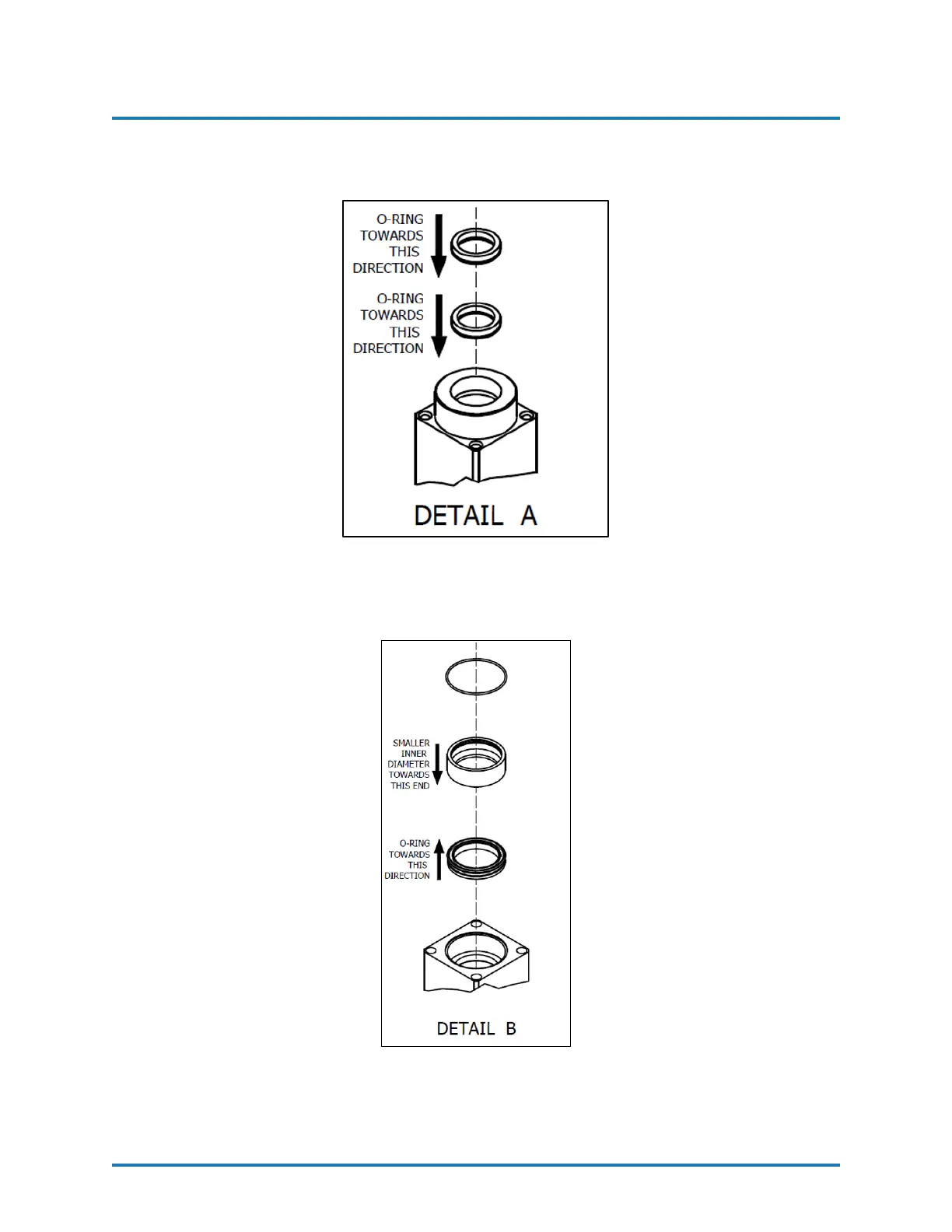

15.9 PUMP-LINE SEAL ORIENTATION
Figure 20: A & R Single Pump Assembly Detail A
Figure 21: A & R Single Pump Assembly Detail B
REVISION 1.2 65
