POLYURETHANE
MACHINERY
CORPORATION
PH-2 SERVICE MANUAL
6. INSTALLATION

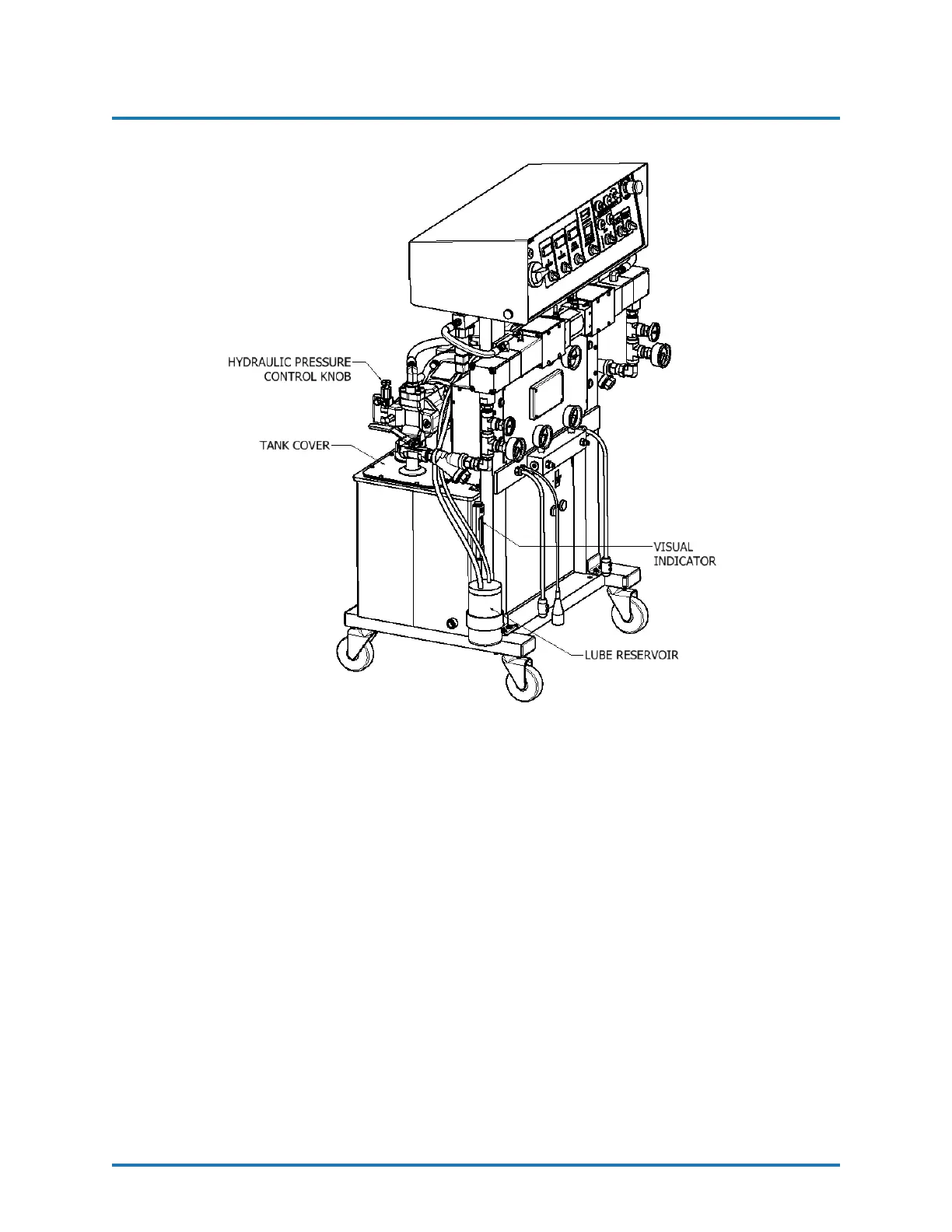

Figure 7: Installation
CAUTION! Ensure that the emergency stop is not engaged.
4. Three Phase Proportioner Only: Check the Electric Motor to ensure rotation is
clockwise when viewing the end of the Electric Motor. A counter clockwise rotation
indicates two of the incoming power leads need to be reversed.
CAUTION! Ensure Main Power Switch is OFF and in-
coming power is locked OFF before reversing power
leads.
Recheck rotation before proceeding with Installation.
5. Fill the Lube Reservoir with PMC Pump Lube or suitable dilutents. It is not necessary
to prime the system.
REVISION 1.2 18
