PMC PH-2 - Lube Bottle Components; Lube Bottle Assembly

POLYURETHANE
MACHINERY
CORPORATION
PH-2 SERVICE MANUAL
15. PARTS IDENTIFICATION
15.18 LUBE BOTTLE COMPONENTS

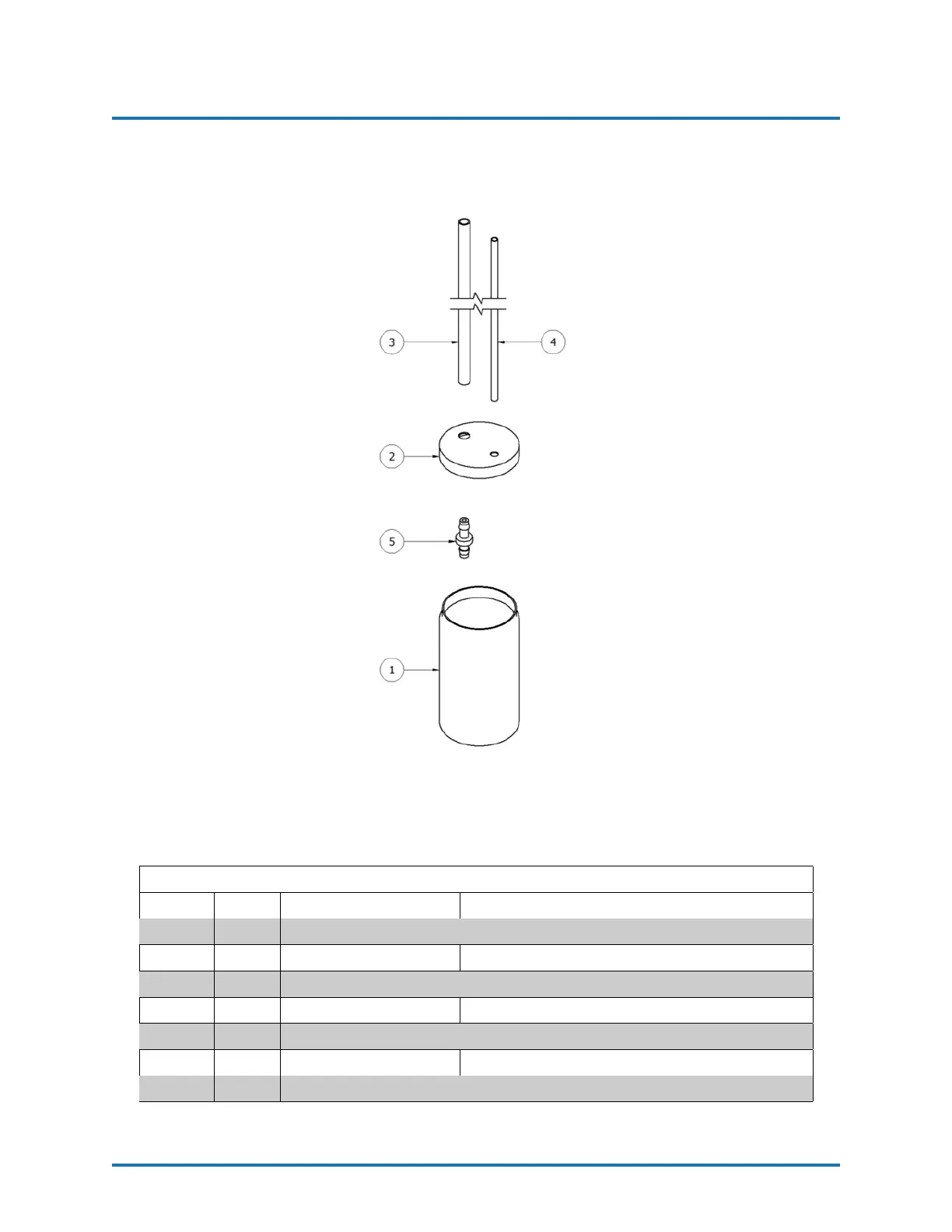

Figure 38: Lube Bottle Assembly
LUBE BOTTLE ASSEMBLY
ITEM QTY PART NUMBER DESCRIPTION
1 1 MQ-01009-01A LUBE BOTTLE
2 1 MQ-01009-02A LUBE BOTTLE LID
3 1 MA-00024A 1/2” X 3’ PLASTIC TUBING, SUPPLY
4 1 MA-00025A 3/8” X 3’ PLASTIC TUBING, RETURN
5 1 RA-00068A CHECK VALVE
- 1 GP-00960-1-GAL PUMP LUBE GALLON
- 1 GP-00960-1-QRT PUMP LUBE QUART
REVISION 1.2 84
