PH-2 SERVICE MANUAL
15. PARTS IDENTIFICATION

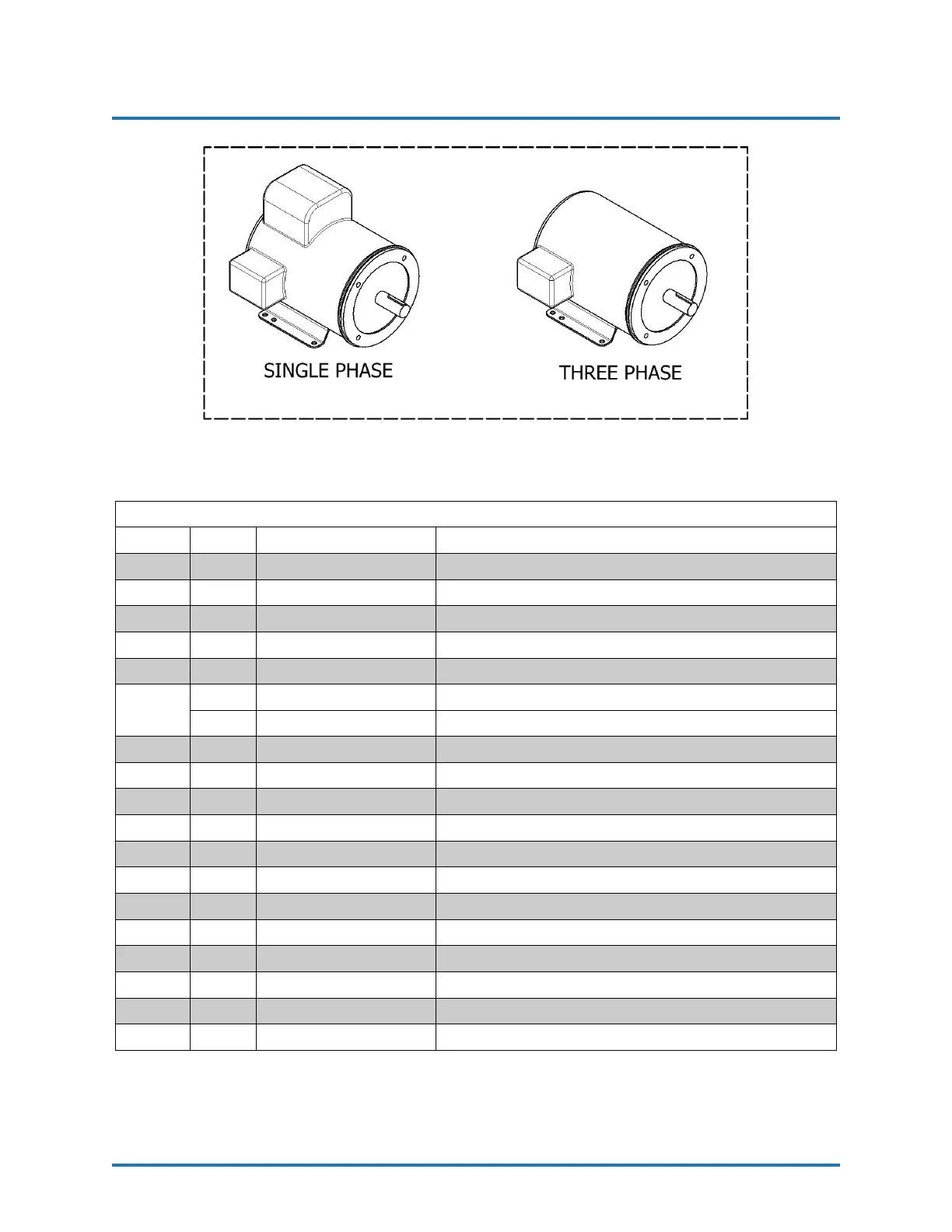

Figure 31: Motor Comparison
MOTOR-LINE ASSEMBLY (ML-1)/(ML-2)
ITEM QTY PART NUMBER DESCRIPTION
1 10 201628 WASHER, LOCK, 3/8, 18-8 SS
2 4 201629 WASHER, FLAT, 1/2, 18-8 SS
3 4 201630 WASHER, LOCK, 1/2, 18-8 SS
4 2 202152 HHCS, 3/8-16 X 1.000, ZP GRD8
5 4 202207 HHCS, 1/2-13 X 1.25, ZP GRD8
6
1 EL-05221 ELECTRIC MOTOR, 3HP, 1PH, 60HZ (ML-2)
6
1 EL-05224 ELECTRIC MOTOR, 3HP, 3PH, 60HZ (ML-1)
7 1 HI-00005-03 ACCESS COVER
8 1 HI-00049A 1X16 BLACK PIPE FOR HYDRAULIC
9 1 HI-00065-03 COUPLER HUB, 3/4
10 1 HI-00065-02 COUPLER HUB, 1 1/8
11 1 HI-00065-01 COUPLER INSERT
12 1 HI-05001 BELL HOUSING
13 1 HI-05004 HYDRAULIC PUMP
14 1 HI-05004-1 CONTROL KNOB, HYD PUMP
15 1 HI-05008 1-1/16-12 O-RING X 3/4 JIC
16 1 HI-05007 6 ORB X 6 JIC 90 DEGREE
17 1 HI-05009 1-1/16-12 OUTLET FLANGE
18 1 HI-05010 1” NPT INLET FLANGE
REVISION 1.2 76
