PH-2 SERVICE MANUAL
15. PARTS IDENTIFICATION
A & R SINGLE PUMP ASSEMBLY (202192)
ITEM QTY PART NUMBER DESCRIPTION
1 1 200700 INLET BODY, LP
2 1 200701 INLET VALVE, LP
3 4 201625 SHCS, 3/8 X 4.0, 18-8 SS
4* 1 OR-035 O-RING, -035, VITON
5* 1 OR-916 O-RING
6* 1 OR-920 O-RING
7 1 PA-045 OUTLET BODY
8 1 PA-046 PISTON VALVE
9 1 PA-047 PISTON
10 1 PA-048 3/4” CHROME BALL
11 1 PA-049 SPRING
12 1 PA-050 SPRING RETAINER
13 1 PA-051 ROD BUSHING
14* 2 PA-052 ROD SEAL ASSEMBLY
15* 1 PA-054 PISTON SEAL ASSEMBLY
16 1 PA-055 PISTON BUSHING
17 1 PA-059 1” BALL
18 1 PA-060 BALL STOP
19 1 PA-061 SPRING, FOOT VALVE
20 1 PA-062 FLUID ROD
21 1 PA-064 PACKING NUT
22* 1 PA-065 SCRAPER SEAL
* Indicates part included in KT-PA: Low Pressure Pump Rebuild Kit (see
page 67)

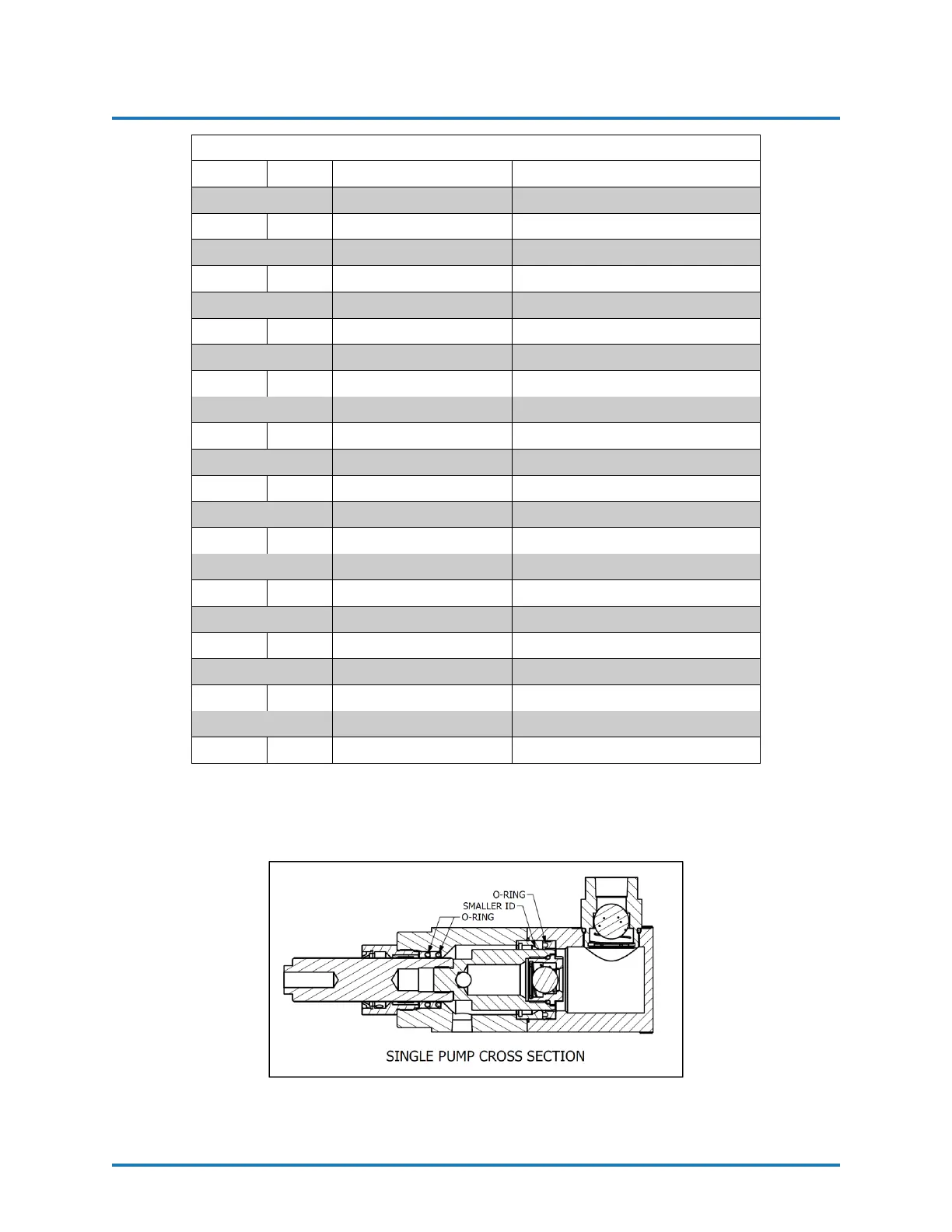

Figure 19: A & R Single Pump Cross Section
REVISION 1.2 64
