PH-2 SERVICE MANUAL
15. PARTS IDENTIFICATION
15.12 Y-STRAINER ASSEMBLY ”A” SIDE

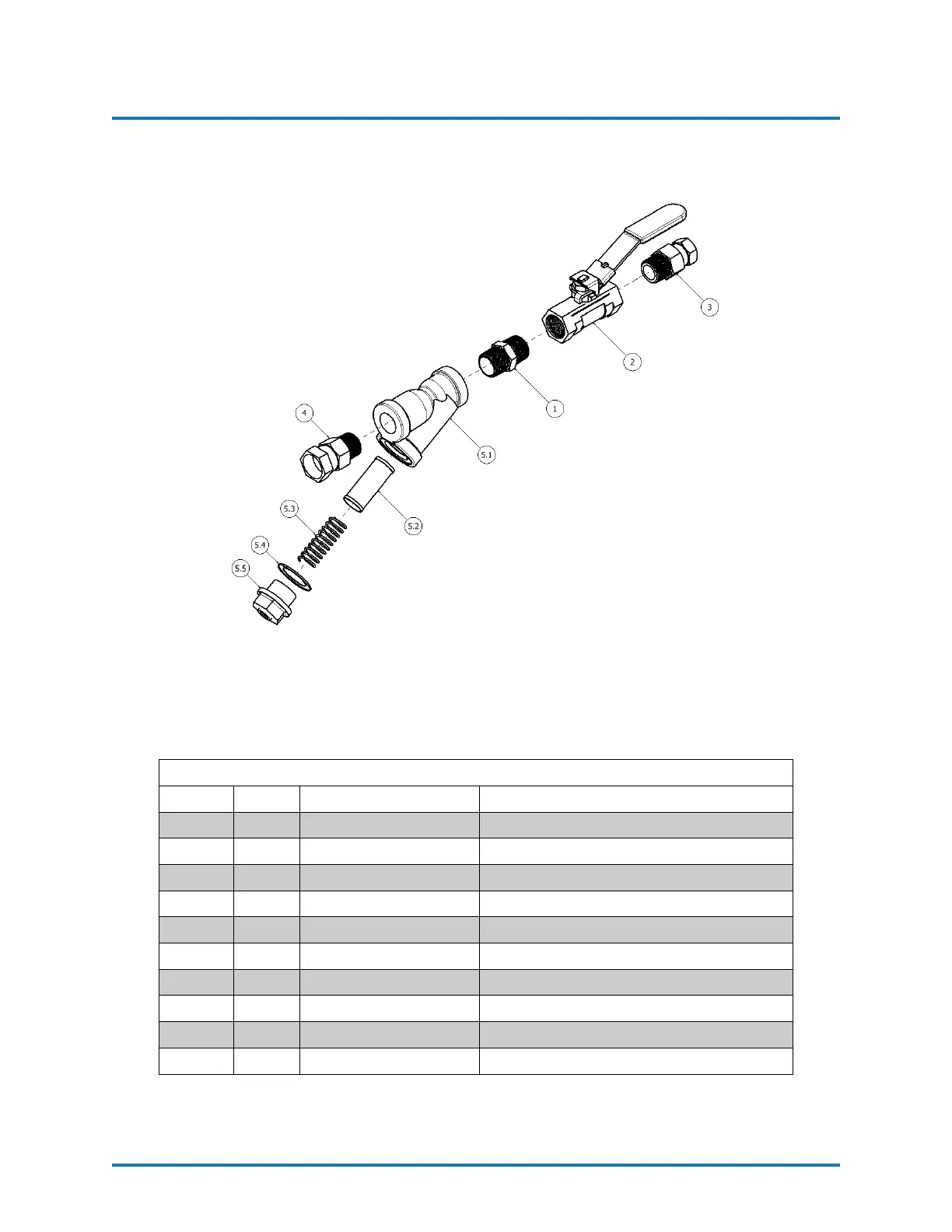

Figure 24: Y-Strainer Assembly ”A” Side
Y-STRAINER ASSEMBLY ”A” SIDE (YS-1)
ITEM QTY PART NUMBER DESCRIPTION
1 1 HI-05017 3/4 MNPT UNION
2 1 RA-00078A 3/4 BALL VALVE SS
3 1 HI-05018 3/4 NPT X 1/2 NPT SW
4 1 HI-05016 3/4 NPTM X 3/4 NPTF SW
5 1 RA-00074-00A Y-STRAINER ASSY
5.1 1 RA-00074-00 Y-STRAINER BODY
5.2 1 RA-00074-03-XXA FILTER SCREEN 30/60/80
5.3 1 SP-00009A FILTER SCREEN SPRING
5.4 1 RA-00074-02A Y-STRAINER GASKET
5.5 1 RA-00074-01A Y-STRAINER DRAIN PLUG ASSY
