PH-2 SERVICE MANUAL
15. PARTS IDENTIFICATION
15.4 EXIT MANIFOLD ASSEMBLY

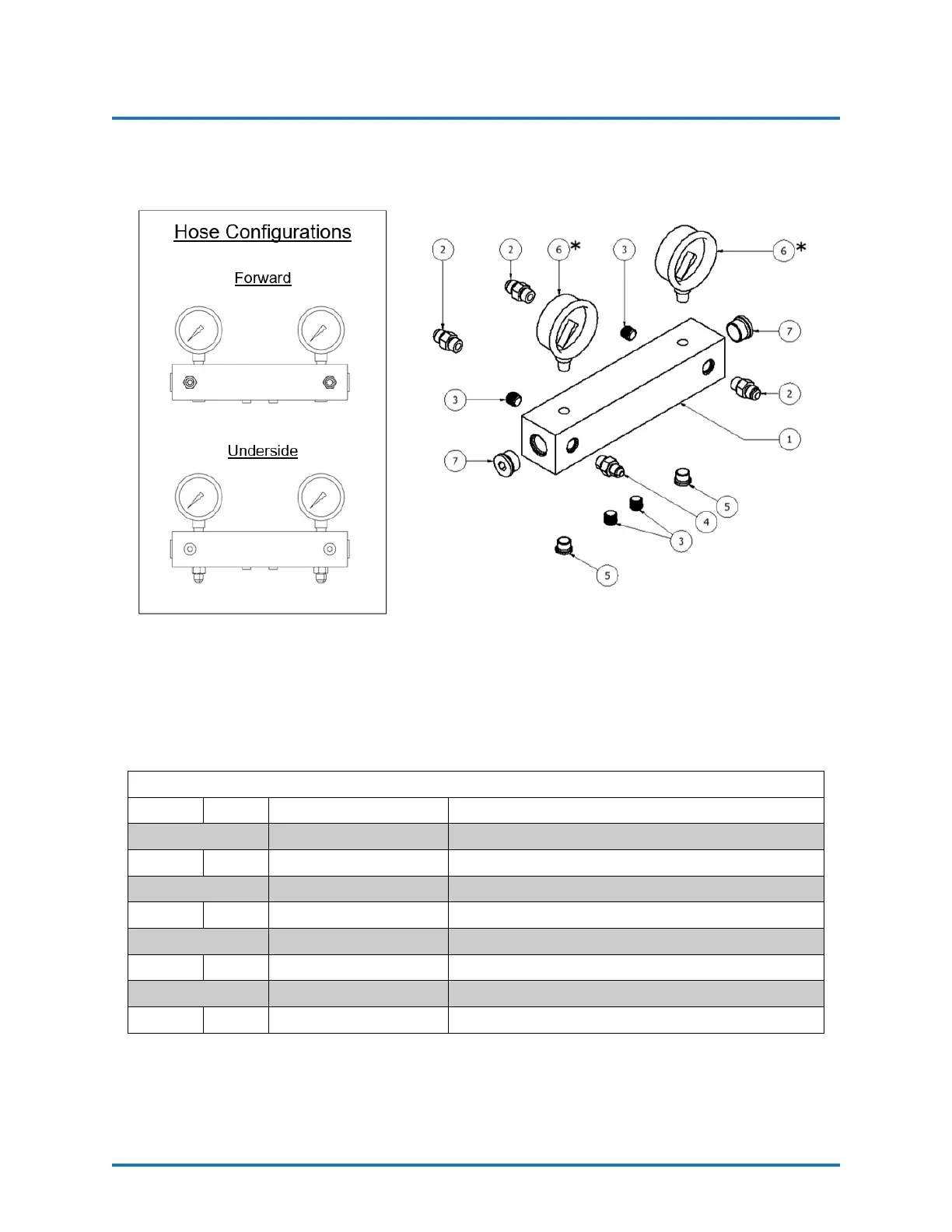

Figure 14: Exit Manifold Assembly (HI-05343)
EXIT MANIFOLD ASSEMBLY (HI-05343)
ITEM QTY PART NUMBER DESCRIPTION
1 1 HI-05307 OUTLET MANIFOLD
2 3 HI-05011 6 ORB X 6 JIC NIPPLE
3 4 HI-05036 1/4 NPT FLUSH SEAL PIPE PLUG
4 1 HI-05329 6 ORB X 5 JIC
5 2 HI-05070-4 HEX SOCKET 0-RING BOSS
6* 2 HI-05028 PRESSURE GAUGE 0-3000 PSI (HI-05331)
6* 2 HI-00035 PRESSURE GAUGE 0-5000 PSI (HI-05343)
7 2 HI-05323 10 ORB PLUG
* Indicates parts not included in HI-05343
REVISION 1.2 58
