PH-2 SERVICE MANUAL
15. PARTS IDENTIFICATION
15.3 HYDRAULIC MANIFOLD ASSEMBLY

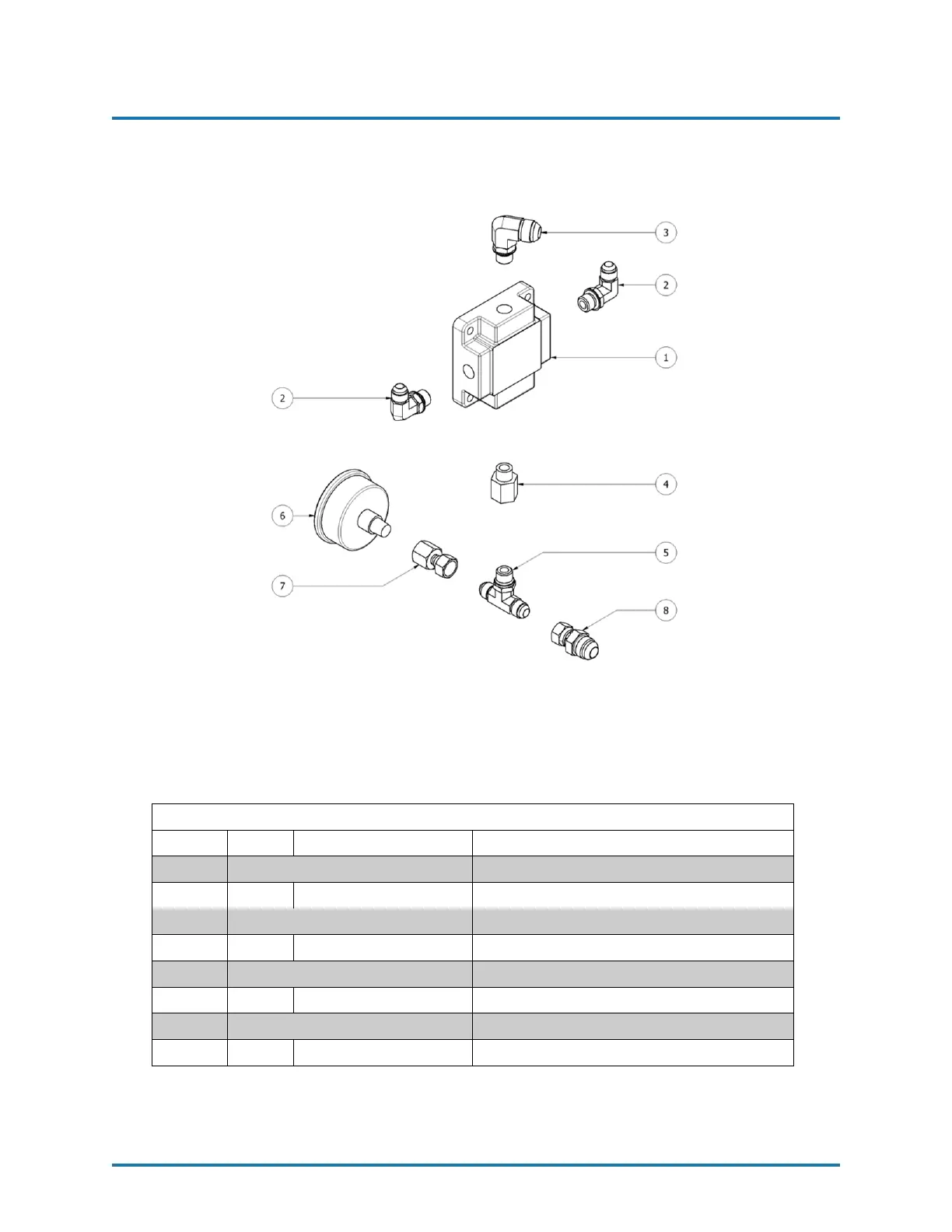

Figure 13: Hydraulic Manifold Assembly (HI-05335)
HYDRAULIC MANIFOLD ASSEMBLY (HI-05335)
ITEM QTY PART NUMBER DESCRIPTION
1 1 HI-05070-3 HYDRAULIC MANIFOLD
2 2 HI-05007 6 ORB X 6 JIC
3 1 HI-05324 6 ORB X 1/2 JIC; 90 DEG
4 1 HI-05348 6 ORB EXTENTION
5 1 HI-05350 6 JIC 6 ORB ”T”
6 1 HI-05040 PRESSURE GAUGE 0-2000 PSI
7 1 HI-05006-6 1/4 NPT X 6 JIC GAUGE FITTING
8 1 HI-05349 6 JIC X 8 JIC
REVISION 1.2 57
